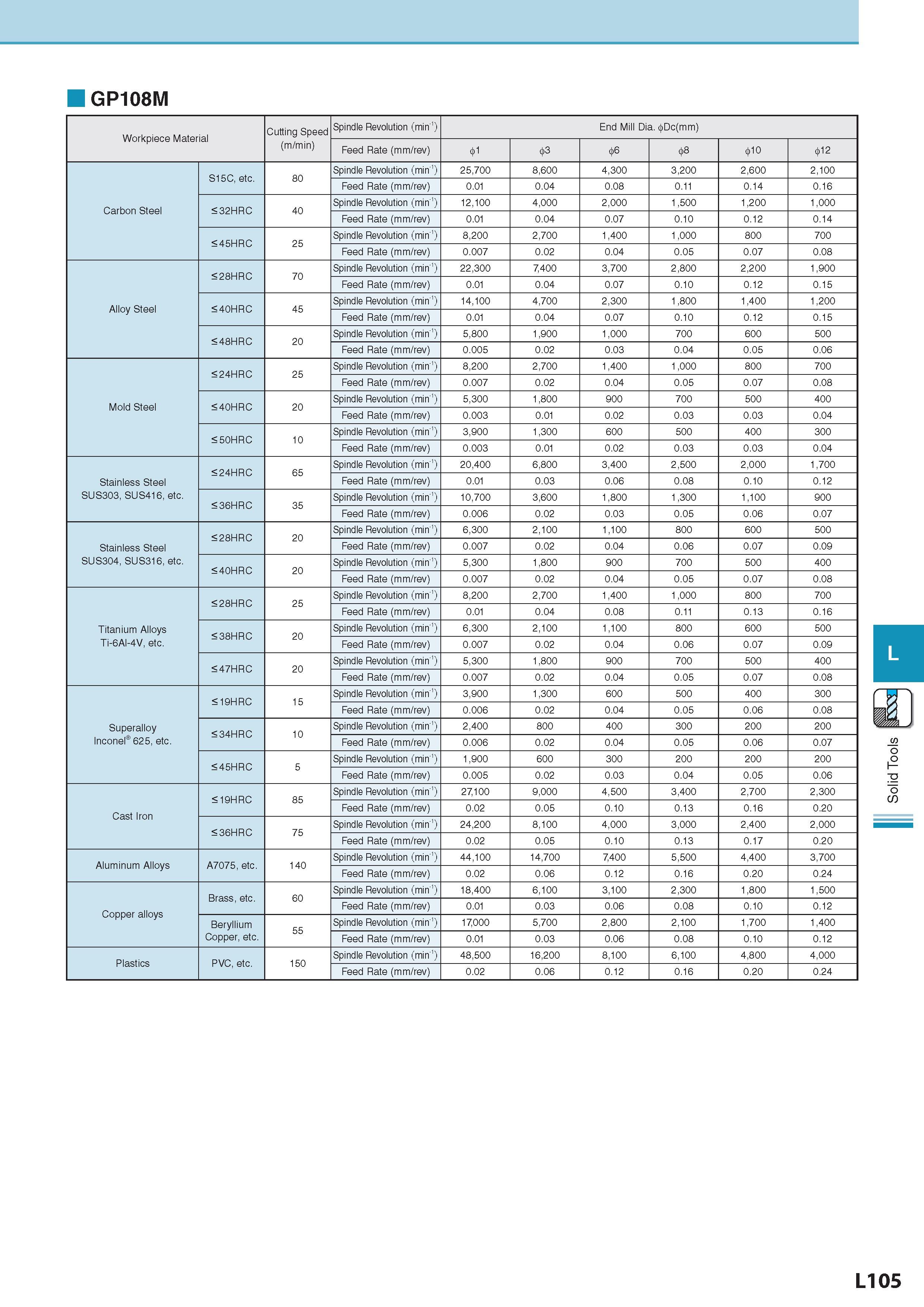

748 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L105

Каталог KYOCERA 2017 Инструмент режущий Стр. L105 0748 Lab2u

GP108M Workpiece Material Обрабатываемый материал Cutting Speed (m/min) Spindle Revolution (min-1) End Mill Dia. Dc(mm) Feed Rate (mm/rev) 1 3 6 8 10 12 Carbon Steel S15C, etc. 80 Spindle Revolution (min-1) 25,700 8,600 4,300 3,200 2,600 2,100 Feed Rate (mm/rev) 0.01 0.04 0.08 0.11 0.14 0.16 <32HRC 40 Spindle Revolution (min-1) 12,100 4,000 2,000 1,500 1,200 1,000 Feed Rate (mm/rev) 0.01 0.04 0.07 0.10 0.12 0.14 <45HRC 25 Spindle Revolution (min-1) 8,200 2,700 1,400 1,000 800 700 Feed Rate (mm/rev) 0.007 0.02 0.04 0.05 0.07 0.08 Alloy Steel <28HRC 70 Spindle Revolution (min-1) 22,300 7,400 3,700 2,800 2,200 1,900 Feed Rate (mm/rev) 0.01 0.04 0.07 0.10 0.12 0.15 <40HRC 45 Spindle Revolution (min-1) 14,100 4,700 2,300 1,800 1,400 1,200 Feed Rate (mm/rev) 0.01 0.04 0.07 0.10 0.12 0.15 <48HRC 20 Spindle Revolution (min-1) 5,800 1,900 1,000 700 600 500 Feed Rate (mm/rev) 0.005 0.02 0.03 0.04 0.05 0.06 Mold Steel <24HRC 25 Spindle Revolution (min-1) 8,200 2,700 1,400 1,000 800 700 Feed Rate (mm/rev) 0.007 0.02 0.04 0.05 0.07 0.08 <40HRC 20 Spindle Revolution (min-1) 5,300 1,800 900 700 500 400 Feed Rate (mm/rev) 0.003 0.01 0.02 0.03 0.03 0.04 < 50HRC 10 Spindle Revolution (min-1) 3,900 1,300 600 500 400 300 Feed Rate (mm/rev) 0.003 0.01 0.02 0.03 0.03 0.04 Stainless Steel SUS303, SUS416, etc. <24HRC 65 Spindle Revolution (min-1) 20,400 6,800 3,400 2,500 2,000 1,700 Feed Rate (mm/rev) 0.01 0.03 0.06 0.08 0.10 0.12 <36HRC 35 Spindle Revolution (min-1) 10,700 3,600 1,800 1,300 1,100 900 Feed Rate (mm/rev) 0.006 0.02 0.03 0.05 0.06 0.07 Stainless Steel SUS304, SUS316, etc. <28HRC 20 Spindle Revolution (min-1) 6,300 2,100 1,100 800 600 500 Feed Rate (mm/rev) 0.007 0.02 0.04 0.06 0.07 0.09 <40HRC 20 Spindle Revolution (min-1) 5,300 1,800 900 700 500 400 Feed Rate (mm/rev) 0.007 0.02 0.04 0.05 0.07 0.08 Titanium Alloys Ti-6Al-4V, etc. <28HRC 25 Spindle Revolution (min-1) 8,200 2,700 1,400 1,000 800 700 Feed Rate (mm/rev) 0.01 0.04 0.08 0.11 0.13 0.16 <38HRC 20 Spindle Revolution (min-1) 6,300 2,100 1,100 800 600 500 Feed Rate (mm/rev) 0.007 0.02 0.04 0.06 0.07 0.09 <47HRC 20 Spindle Revolution (min-1) 5,300 1,800 900 700 500 400 Feed Rate (mm/rev) 0.007 0.02 0.04 0.05 0.07 0.08 Superalloy Inconel 625, etc. <19HRC 15 Spindle Revolution (min-1) 3,900 1,300 600 500 400 300 Feed Rate (mm/rev) 0.006 0.02 0.04 0.05 0.06 0.08 <34HRC 10 Spindle Revolution (min-1) 2,400 800 400 300 200 200 Feed Rate (mm/rev) 0.006 0.02 0.04 0.05 0.06 0.07 <45HRC 5 Spindle Revolution (min-1) 1,900 600 300 200 200 200 Feed Rate (mm/rev) 0.005 0.02 0.03 0.04 0.05 0.06 Cast Iron <19HRC 85 Spindle Revolution (min-1) 27,100 9,000 4,500 3,400 2,700 2,300 Feed Rate (mm/rev) 0.02 0.05 0.10 0.13 0.16 0.20 <36HRC 75 Spindle Revolution (min-1) 24,200 8,100 4,000 3,000 2,400 2,000 Feed Rate (mm/rev) 0.02 0.05 0.10 0.13 0.17 0.20 Aluminum Alloys A7075, etc. 140 Spindle Revolution (min-1) 44,100 14,700 7,400 5,500 4,400 3,700 Feed Rate (mm/rev) 0.02 0.06 0.12 0.16 0.20 0.24 Copper alloys Brass, etc. 60 Spindle Revolution (min-1) 18,400 6,100 3,100 2,300 1,800 1,500 Feed Rate (mm/rev) 0.01 0.03 0.06 0.08 0.10 0.12 Beryllium Copper, etc. 55 Spindle Revolution (min-1) 17,000 5,700 2,800 2,100 1,700 1,400 Feed Rate (mm/rev) 0.01 0.03 0.06 0.08 0.10 0.12 Plastics PVC, etc. 150 Spindle Revolution (min-1) 48,500 16,200 8,100 6,100 4,800 4,000 Feed Rate (mm/rev) 0.02 0.06 0.12 0.16 0.20 0.24 L105 Solid Tools
