749 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L106

Каталог KYOCERA 2017 Инструмент режущий Стр. L106 0749 Lab2u

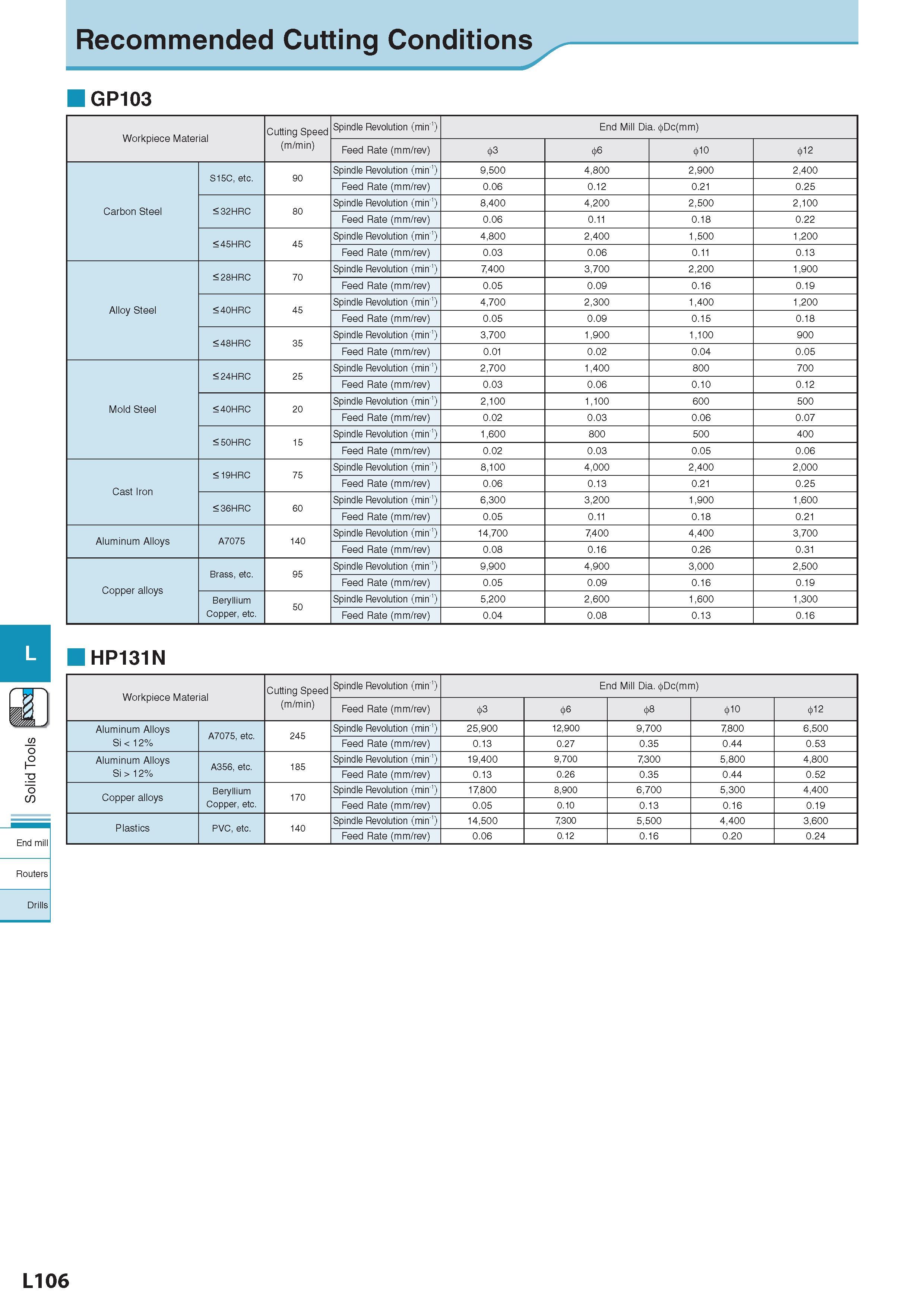

Recommended Cutting Conditions Рекомендованные режимы резания на станках GP103 Workpiece Material Обрабатываемый материал Cutting Speed (m/min) Spindle Revolution (min-1) End Mill Dia. 0Dc(mm) Feed Rate (mm/rev) 03 06 010 012 Carbon Steel S15C, etc. 90 Spindle Revolution (min-1) 9,500 4,800 2,900 2,400 Feed Rate (mm/rev) 0.06 0.12 0.21 0.25 <32HRC 80 Spindle Revolution (min-1) 8,400 4,200 2,500 2,100 Feed Rate (mm/rev) 0.06 0.11 0.18 0.22 <45HRC 45 Spindle Revolution (min-1) 4,800 2,400 1,500 1,200 Feed Rate (mm/rev) 0.03 0.06 0.11 0.13 Alloy Steel <28HRC 70 Spindle Revolution (min-1) 7,400 3,700 2,200 1,900 Feed Rate (mm/rev) 0.05 0.09 0.16 0.19 <40HRC 45 Spindle Revolution (min-1) 4,700 2,300 1,400 1,200 Feed Rate (mm/rev) 0.05 0.09 0.15 0.18 <48HRC 35 Spindle Revolution (min-1) 3,700 1,900 1,100 900 Feed Rate (mm/rev) 0.01 0.02 0.04 0.05 Mold Steel <24HRC 25 Spindle Revolution (min-1) 2,700 1,400 800 700 Feed Rate (mm/rev) 0.03 0.06 0.10 0.12 <40HRC 20 Spindle Revolution (min-1) 2,100 1,100 600 500 Feed Rate (mm/rev) 0.02 0.03 0.06 0.07 <50HRC 15 Spindle Revolution (min-1) 1,600 800 500 400 Feed Rate (mm/rev) 0.02 0.03 0.05 0.06 Cast Iron < 19HRC 75 Spindle Revolution (min-1) 8,100 4,000 2,400 2,000 Feed Rate (mm/rev) 0.06 0.13 0.21 0.25 <36HRC 60 Spindle Revolution (min-1) 6,300 3,200 1,900 1,600 Feed Rate (mm/rev) 0.05 0.11 0.18 0.21 Aluminum Alloys A7075 140 Spindle Revolution (min-1) 14,700 7,400 4,400 3,700 Feed Rate (mm/rev) 0.08 0.16 0.26 0.31 Copper alloys Brass, etc. 95 Spindle Revolution (min-1) 9,900 4,900 3,000 2,500 Feed Rate (mm/rev) 0.05 0.09 0.16 0.19 Beryllium Copper, etc. 50 Spindle Revolution (min-1) 5,200 2,600 1,600 1,300 Feed Rate (mm/rev) 0.04 0.08 0.13 0.16 HP131N Workpiece Material Обрабатываемый материал Cutting Speed (m/min) Spindle Revolution (min-1) End Mill Dia. 0Dc(mm) Feed Rate (mm/rev) 03 06 08 010 012 Aluminum Alloys Si < 12% A7075, etc. 245 Spindle Revolution (min-1) 25,900 12,900 9,700 7800 6,500 Feed Rate (mm/rev) 0.13 0.27 0.35 0.44 0.53 Aluminum Alloys Si > 12% A356, etc. 185 Spindle Revolution (min-1) 19,400 9,700 7,300 5,800 4,800 Feed Rate (mm/rev) 0.13 0.26 0.35 0.44 0.52 Copper alloys Beryllium Copper, etc. 170 Spindle Revolution (min-1) 17,800 8,900 6,700 5,300 4,400 Feed Rate (mm/rev) 0.05 0.10 0.13 0.16 0.19 Plastics PVC, etc. 140 Spindle Revolution (min-1) 14,500 7300 5,500 4,400 3,600 Feed Rate (mm/rev) 0.06 0.12 0.16 0.20 0.24 L106 End mill
