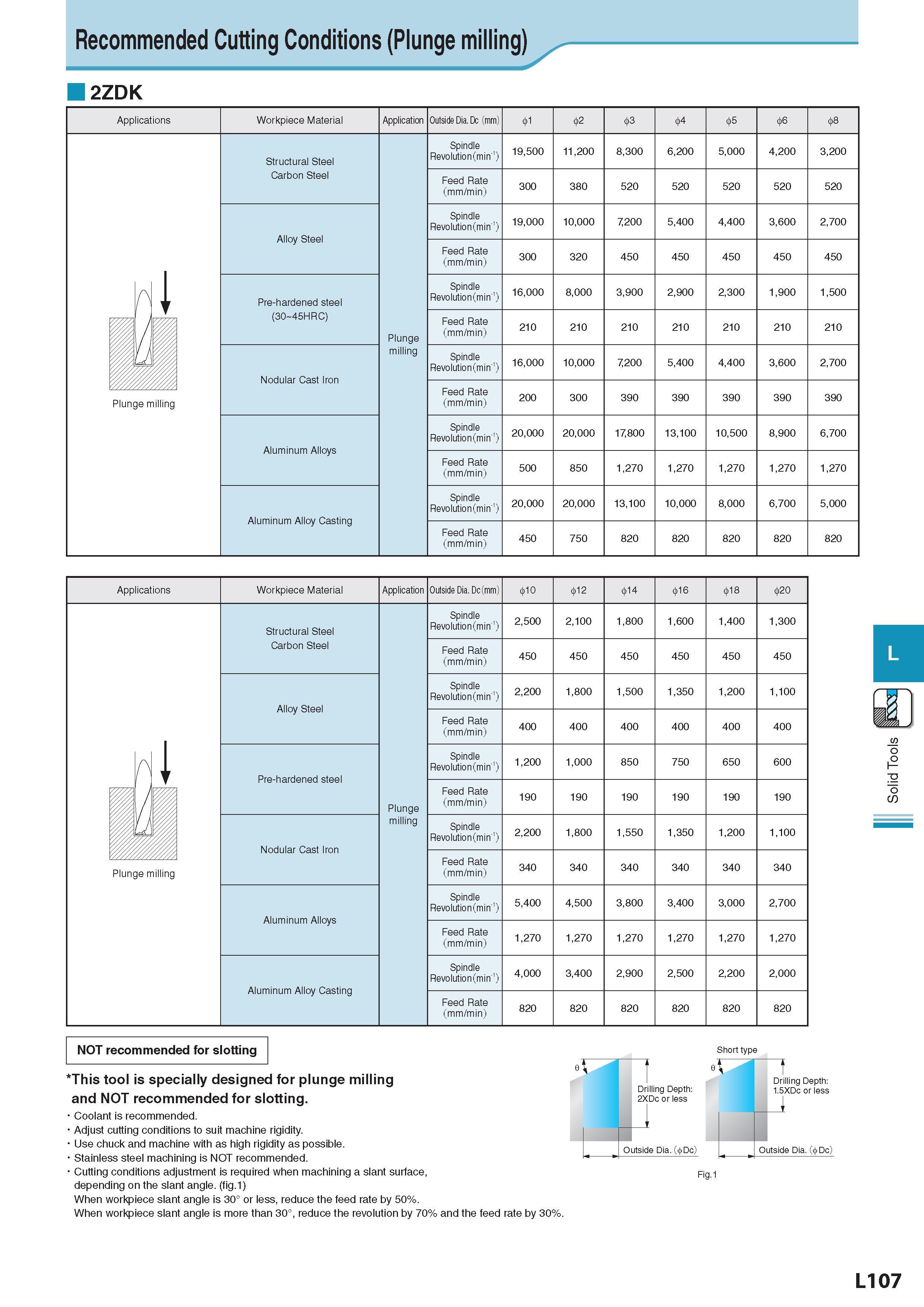

Recommended Cutting Conditions Рекомендованные режимы резания на станках (Plunge milling) 2ZDK Applications Workpiece Material Обрабатываемый материал Application Outside Dia. Dc (mm) 01 02 03 04 05 06 08 Hi Structural Steel Carbon Steel Plunge milling Spindle Revolution(min'1) 19,500 11,200 8,300 6,200 5,000 4,200 3,200 Feed Rate (mm/min) 300 380 520 520 520 520 520 Alloy Steel Spindle Revolution(min'1) 19,000 10,000 7200 5,400 4,400 3,600 2,700 Feed Rate (mm/min) 300 320 450 450 450 450 450 Pre-hardened steel (30 45HRC) Spindle Revolution(min'1) 16,000 8,000 3,900 2,900 2,300 1,900 1,500 Plunge milling Feed Rate (mm/min) 210 210 210 210 210 210 210 Nodular Cast Iron Spindle Revolution(min'1) 16,000 10,000 7200 5,400 4,400 3,600 2,700 Feed Rate (mm/min) 200 300 390 390 390 390 390 Aluminum Alloys Spindle Revolution(min'1) 20,000 20,000 17,800 13,100 10,500 8,900 6,700 Feed Rate (mm/min) 500 850 1,270 1,270 1,270 1,270 1,270 Aluminum Alloy Casting Spindle Revolution(min'1) 20,000 20,000 13,100 10,000 8,000 6,700 5,000 Feed Rate (mm/min) 450 750 820 820 820 820 820 Applications 1 Plunge milling Workpiece Material Обрабатываемый материал Structural Steel Carbon Steel Alloy Steel Pre-hardened steel Nodular Cast Iron Aluminum Alloys Aluminum Alloy Casting Application Plunge milling Outside Dia. Dc(mm) Spindle Revolution(min'1) Feed Rate (mm/min) Spindle Revolution(min'1) Feed Rate (mm/min) Spindle Revolution(min'1) Feed Rate (mm/min) Spindle Revolution(min'1) Feed Rate (mm/min) Spindle Revolution(min'1) Feed Rate (mm/min) Spindle Revolution(min-1) Feed Rate (mm/min) 010 2,500 450 2,200 400 1,200 190 2,200 340 5,400 1,270 4,000 820 012 2,100 450 1,800 400 1,000 190 1,800 340 4,500 1,270 3,400 820 014 1,800 450 1,500 400 850 190 1,550 340 3,800 1,270 2,900 820 016 1,600 450 1,350 400 750 190 1,350 340 3,400 1,270 2,500 820 018 1,400 450 1,200 400 650 190 1,200 340 3,000 1,270 2,200 820 020 1,300 450 1,100 400 600 190 1,100 340 2,700 1,270 2,000 820 NOT recommended for slotting Short type This tool is specially designed for plunge milling and NOT recommended for slotting. Coolant is recommended. Adjust cutting conditions to suit machine rigidity. Use chuck and machine with as high rigidity as possible. Stainless steel machining is NOT recommended. Cutting conditions adjustment is required when machining a slant surface, depending on the slant angle. (fig.1) When workpiece slant angle is 30° or less, reduce the feed rate by 50%. When workpiece slant angle is more than 30°, reduce the revolution by 70% and the feed rate by 30%. L107 Solid Tools
