753 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M3

Каталог KYOCERA 2017 Инструмент режущий Стр. M3 0753 Lab2u

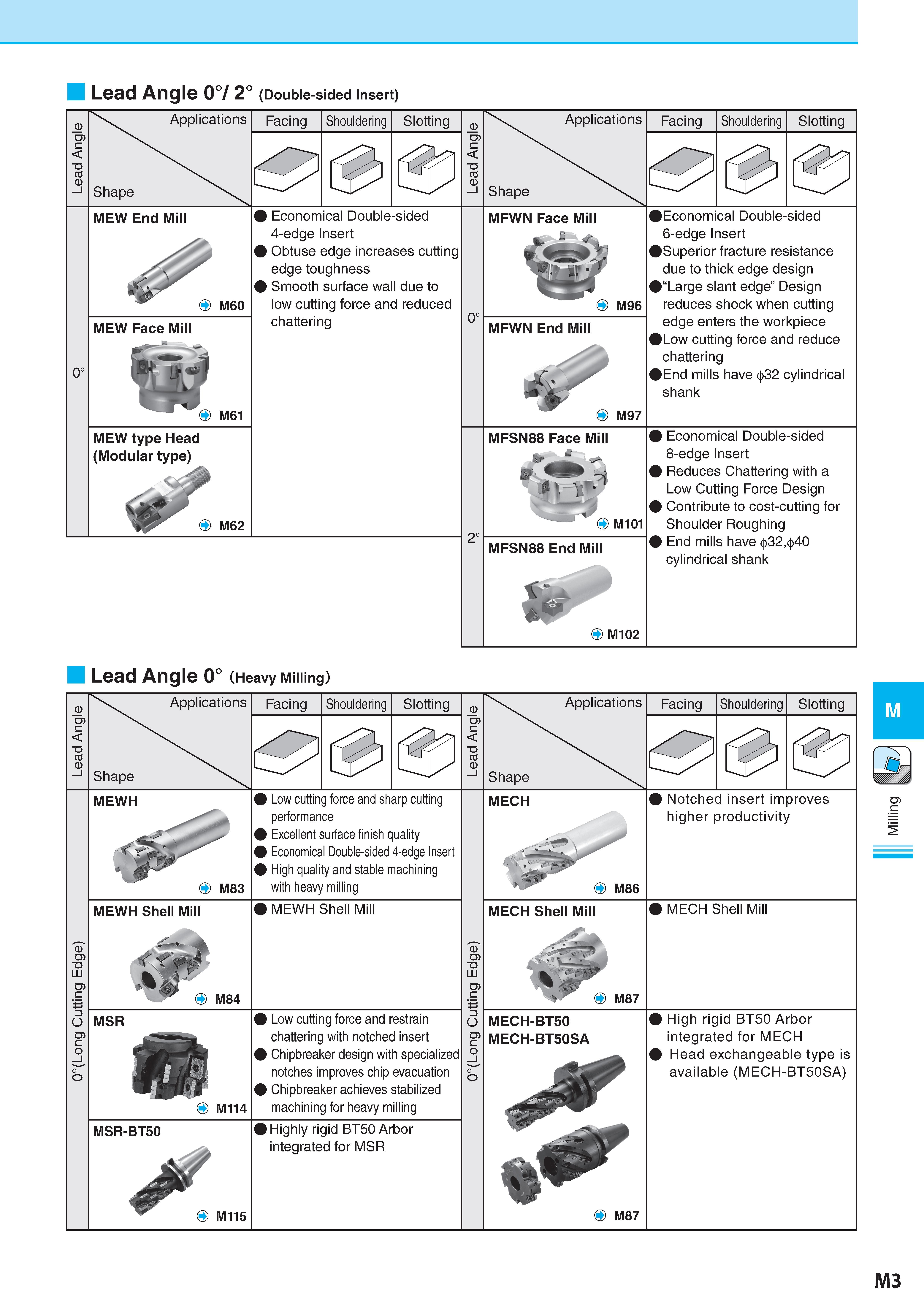

Lead Angle 0°/ 2° (Double-sided Insert) Applications Facing Shouldering Slotting Shape Applications Shape Facing Shouldering Slotting MEW End Mill O M60 MEW Face Mill Economical Double-sided 4-edge Insert Obtuse edge increases cutting edge toughness Smooth surface wall due to low cutting force and reduced chattering O M61 MEW type Head (Modular type) O M62 0° 2° MFWN Face Mill O M96 MFWN End Mill Economical Double-sided 6-edge Insert Superior fracture resistance due to thick edge design “Large slant edge” Design reduces shock when cutting edge enters the workpiece Low cutting force and reduce chattering End mills have 32 cylindrical shank O M97 MFSN88 Face Mill MFSN88 End Mill Economical Double-sided 8-edge Insert Reduces Chattering with a Low Cutting Force Design Contribute to cost-cutting for Shoulder Roughing End mills have 32, 40 cylindrical shank O M102 0 Lead Angle 0° (Heavy Milling) Applications Facing Shouldering Slotting Shape Applications Shape Facing Shouldering Slotting MEWH O M83 Low cutting force and sharp cutting performance Excellent surface finish quality Economical Double-sided 4-edge Insert High quality and stable machining with heavy milling MECH Notched insert improves higher productivity O M86 MEWH Shell Mill MEWH Shell Mill MECH Shell Mill MECH Shell Mill M84 MSR O M114 Low cutting force and restrain chattering with notched insert Chipbreaker Стружколом сменной пластины design with specialized notches improves chip evacuation Chipbreaker Стружколом сменной пластины achieves stabilized machining for heavy milling M87 MECH-BT50 MECH-BT50SA MSR-BT50 Highly rigid BT50 Arbor integrated for MSR High rigid BT50 Arbor integrated for MECH H ead exchangeable type is available (MECH-BT50SA) O M115 O M87 M3 Milling
