756 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.M6

Каталог KYOCERA 2017 Инструмент режущий Стр. M6 0756 Lab2u

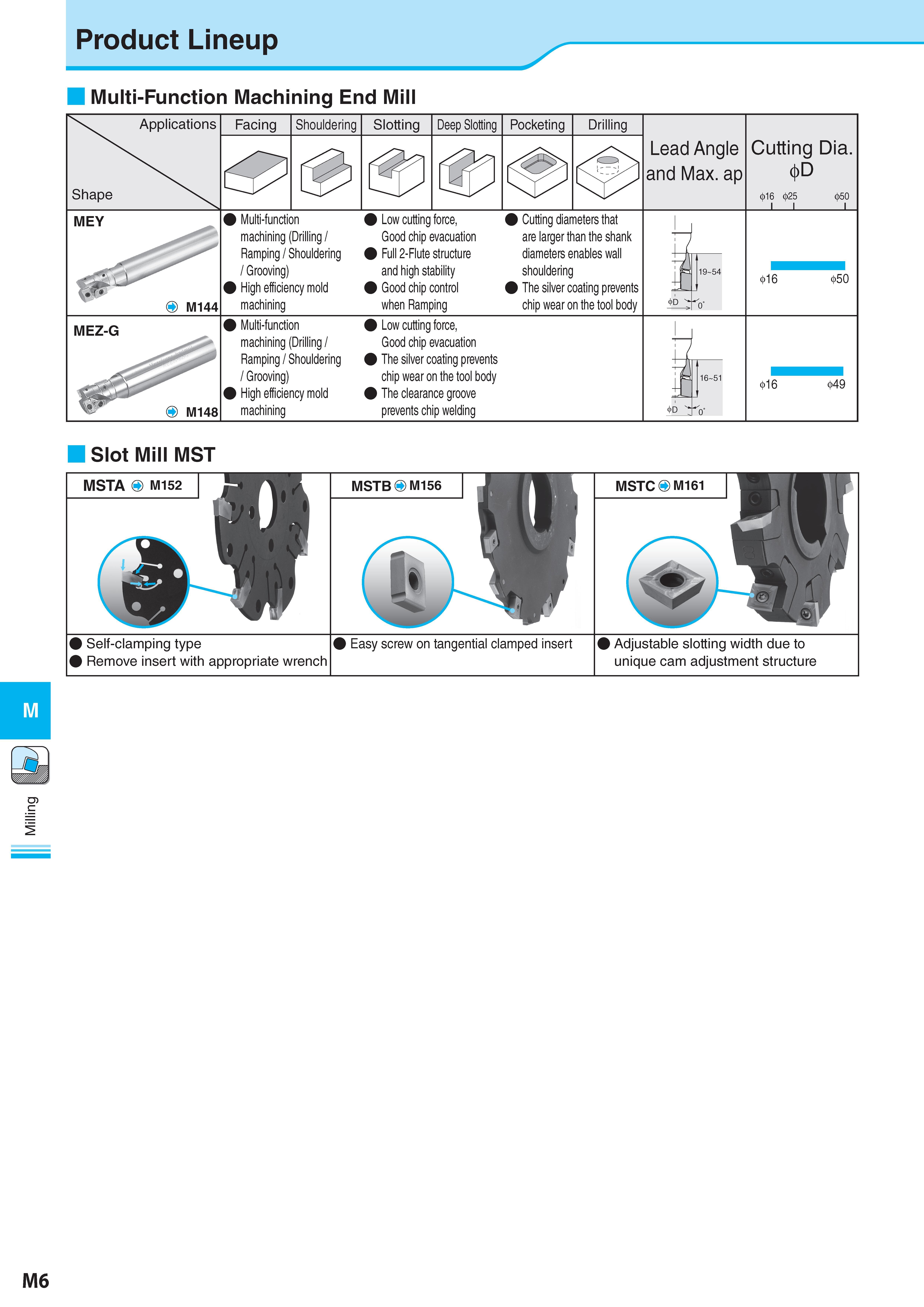

Milling Product Lineup Multi-Function Machining End Mill Applications Facing Shouldering Slotting Deep Slotting Pocketing Drilling Shape Lead Angle and Max. ap Cutting Dia. 0D 016 025 050 I I l MEY O M144 Multi-function machining (Drilling / Ramping / Shouldering / Grooving) High efficiency mold machining Low cutting force, Good chip evacuation Full 2-Flute structure and high stability Good chip control when Ramping Cutting diameters that are larger than the shank diameters enables wall shouldering The silver coating prevents chip wear on the tool body 016 050 MEZ-G O M148 Multi-function machining (Drilling / Ramping / Shouldering / Grooving) High efficiency mold machining Low cutting force, Good chip evacuation The silver coating prevents chip wear on the tool body The clearance groove prevents chip welding 016 049 Slot Mill MST Self-clamping type Remove insert with appropriate wrench Easy screw on tangential clamped insert Adjustable slotting width due to unique cam adjustment structure M6
