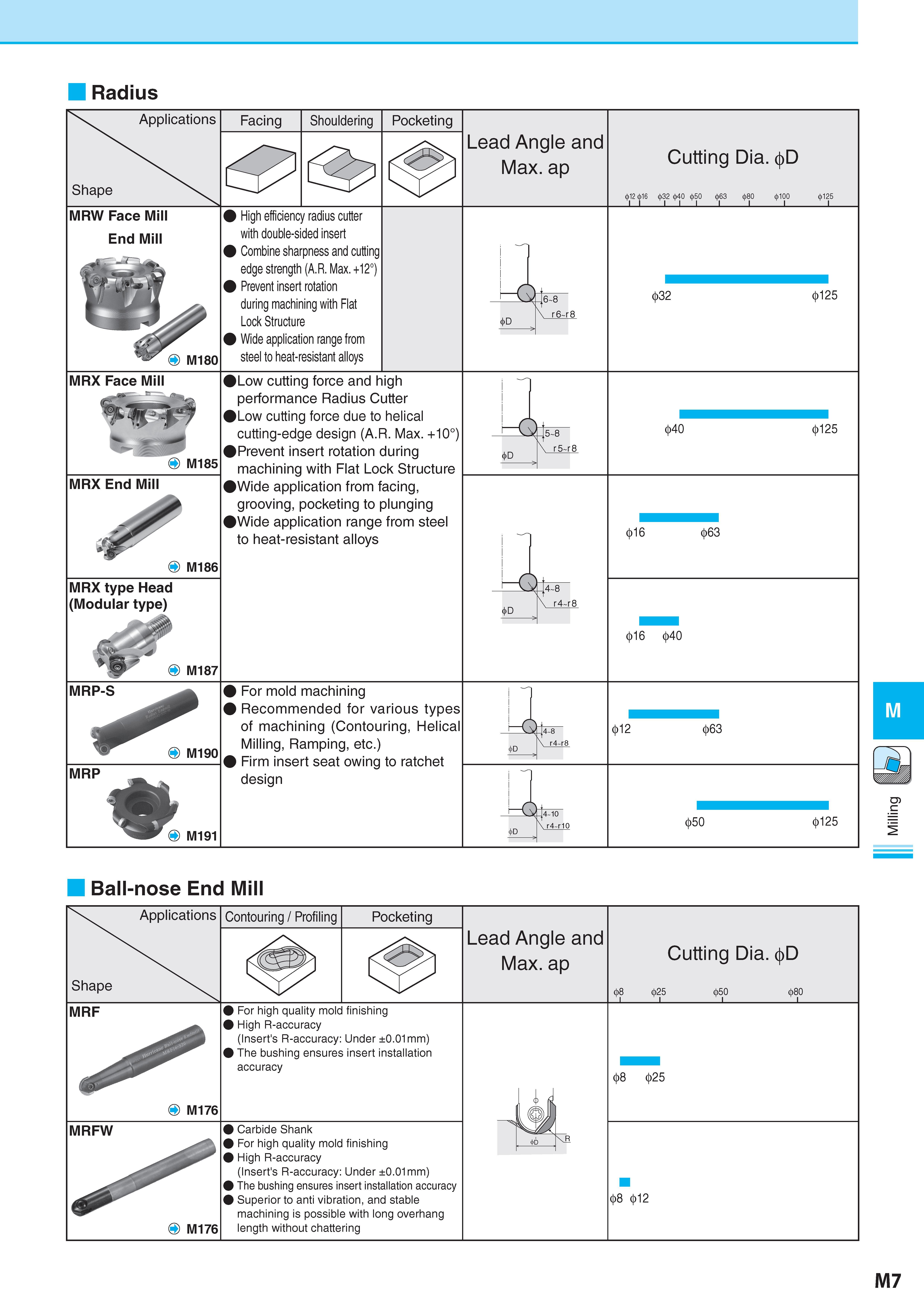

Radius Applications Shape Facing Shouldering Pocketing Lead Angle and Max. ap Cutting Dia. 0D 012 016 032 040 050 063 0100 0125 MRW Face Mill End Mill High efficiency radius cutter with double-sided insert Combine sharpness and cutting edge strength (A.R. Max. +12°) Prevent insert rotation during machining with Flat Lock Structure Wide application range from steel to heat-resistant alloys Q 0D 6 8 , r6 r 8 032 0125 MRX Face Mill O M185 MRX End Mill Low cutting force and high performance Radius Cutter Low cutting force due to helical cutting-edge design (A.R. Max. +10°) Prevent insert rotation during machining with Flat Lock Structure Wide application from facing, grooving, pocketing to plunging Wide application range from steel to heat-resistant alloys 5 8 \ r5 r 8 0125 O M186 016 MRX type Head (Modular type) 0D 4 8 r4 r8 016 040 O M187 MRP-S O M190 MRP .. O M191 For mold machining Recommended for various types of machining (Contouring, Helical Milling, Ramping, etc.) Firm insert seat owing to ratchet design 012 063 050 0125 Ball-nose End Mill Applications Shape Contouring / Profiling Pocketing Lead Angle and Max. ap Cutting Dia. 0D 08 025 050 080 MRF O M176 For high quality mold finishing High R-accuracy (Insert's R-accuracy: Under ±0.01mm) The bushing ensures insert installation accuracy < D 08 025 MRFW O M176 Carbide Shank For high quality mold finishing High R-accuracy (Insert's R-accuracy: Under ±0.01mm) The bushing ensures insert installation accuracy Superior to anti vibration, and stable machining is possible with long overhang length without chattering 08 012 M7 Milling
