747 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L104

Каталог KYOCERA 2017 Инструмент режущий Стр. L104 0747 Lab2u

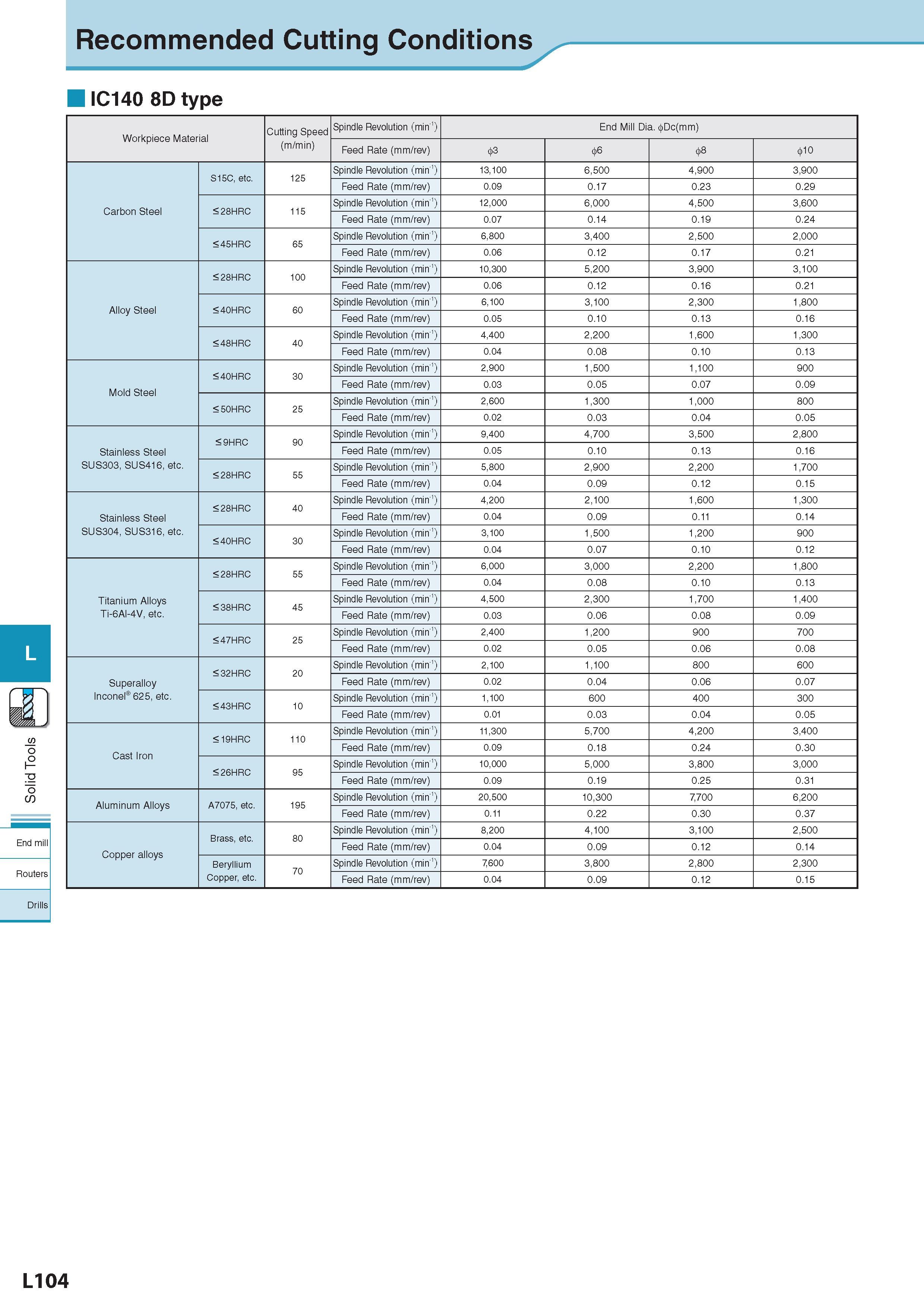

Recommended Cutting Conditions Рекомендованные режимы резания на станках IC140 8D type Workpiece Material Обрабатываемый материал Cutting Speed (m/min) Spindle Revolution (min-1) End Mill Dia. 0Dc(mm) Feed Rate (mm/rev) 03 06 08 010 Carbon Steel S15C, etc. 125 Spindle Revolution (min-1) 13,100 6,500 4,900 3,900 Feed Rate (mm/rev) 0.09 0.17 0.23 0.29 <28HRC 115 Spindle Revolution (min-1) 12,000 6,000 4,500 3,600 Feed Rate (mm/rev) 0.07 0.14 0.19 0.24 <45HRC 65 Spindle Revolution (min-1) 6,800 3,400 2,500 2,000 Feed Rate (mm/rev) 0.06 0.12 0.17 0.21 Alloy Steel <28HRC 100 Spindle Revolution (min-1) 10,300 5,200 3,900 3,100 Feed Rate (mm/rev) 0.06 0.12 0.16 0.21 <40HRC 60 Spindle Revolution (min-1) 6,100 3,100 2,300 1,800 Feed Rate (mm/rev) 0.05 0.10 0.13 0.16 <48HRC 40 Spindle Revolution (min-1) 4,400 2,200 1,600 1,300 Feed Rate (mm/rev) 0.04 0.08 0.10 0.13 Mold Steel <40HRC 30 Spindle Revolution (min-1) 2,900 1,500 1,100 900 Feed Rate (mm/rev) 0.03 0.05 0.07 0.09 <50HRC 25 Spindle Revolution (min-1) 2,600 1,300 1,000 800 Feed Rate (mm/rev) 0.02 0.03 0.04 0.05 Stainless Steel SUS303, SUS416, etc. <9HRC 90 Spindle Revolution (min-1) 9,400 4,700 3,500 2,800 Feed Rate (mm/rev) 0.05 0.10 0.13 0.16 <28HRC 55 Spindle Revolution (min-1) 5,800 2,900 2,200 1,700 Feed Rate (mm/rev) 0.04 0.09 0.12 0.15 Stainless Steel SUS304, SUS316, etc. <28HRC 40 Spindle Revolution (min-1) 4,200 2,100 1,600 1,300 Feed Rate (mm/rev) 0.04 0.09 0.11 0.14 <40HRC 30 Spindle Revolution (min-1) 3,100 1,500 1,200 900 Feed Rate (mm/rev) 0.04 0.07 0.10 0.12 Titanium Alloys Ti-6Al-4V, etc. <28HRC 55 Spindle Revolution (min-1) 6,000 3,000 2,200 1,800 Feed Rate (mm/rev) 0.04 0.08 0.10 0.13 <38HRC 45 Spindle Revolution (min-1) 4,500 2,300 1,700 1,400 Feed Rate (mm/rev) 0.03 0.06 0.08 0.09 <47HRC 25 Spindle Revolution (min-1) 2,400 1,200 900 700 Feed Rate (mm/rev) 0.02 0.05 0.06 0.08 Superalloy Inconel 625, etc. <32HRC 20 Spindle Revolution (min-1) 2,100 1,100 800 600 Feed Rate (mm/rev) 0.02 0.04 0.06 0.07 <43HRC 10 Spindle Revolution (min-1) 1,100 600 400 300 Feed Rate (mm/rev) 0.01 0.03 0.04 0.05 Cast Iron < 19HRC 110 Spindle Revolution (min-1) 11,300 5,700 4,200 3,400 Feed Rate (mm/rev) 0.09 0.18 0.24 0.30 <26HRC 95 Spindle Revolution (min-1) 10,000 5,000 3,800 3,000 Feed Rate (mm/rev) 0.09 0.19 0.25 0.31 Aluminum Alloys A7075, etc. 195 Spindle Revolution (min-1) 20,500 10,300 7,700 6,200 Feed Rate (mm/rev) 0.11 0.22 0.30 0.37 Copper alloys Brass, etc. 80 Spindle Revolution (min-1) 8,200 4,100 3,100 2,500 Feed Rate (mm/rev) 0.04 0.09 0.12 0.14 Beryllium Copper, etc. 70 Spindle Revolution (min-1) 7600 3,800 2,800 2,300 Feed Rate (mm/rev) 0.04 0.09 0.12 0.15 End mill L104
