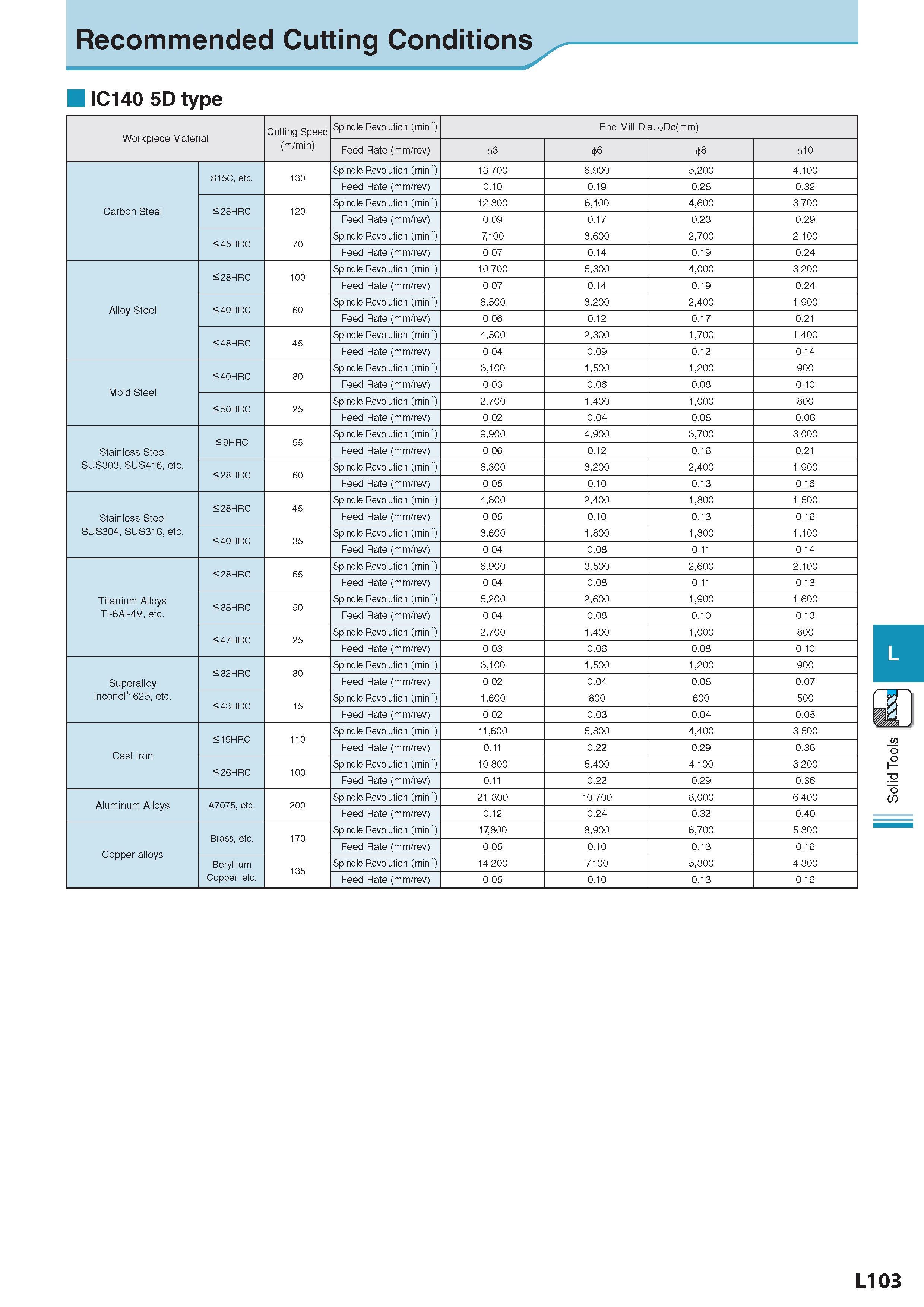

Recommended Cutting Conditions Рекомендованные режимы резания на станках IC140 5D type Workpiece Material Обрабатываемый материал Cutting Speed (m/min) Spindle Revolution (min-1) End Mill Dia. Dc(mm) Feed Rate (mm/rev) 03 06 08 010 Carbon Steel S15C, etc. 130 Spindle Revolution (min-1) 13,700 6,900 5,200 4,100 Feed Rate (mm/rev) 0.10 0.19 0.25 0.32 <28HRC 120 Spindle Revolution (min-1) 12,300 6,100 4,600 3,700 Feed Rate (mm/rev) 0.09 0.17 0.23 0.29 <45HRC 70 Spindle Revolution (min-1) 7,100 3,600 2,700 2,100 Feed Rate (mm/rev) 0.07 0.14 0.19 0.24 Alloy Steel <28HRC 100 Spindle Revolution (min-1) 10,700 5,300 4,000 3,200 Feed Rate (mm/rev) 0.07 0.14 0.19 0.24 <40HRC 60 Spindle Revolution (min-1) 6,500 3,200 2,400 1,900 Feed Rate (mm/rev) 0.06 0.12 0.17 0.21 <48HRC 45 Spindle Revolution (min-1) 4,500 2,300 1,700 1,400 Feed Rate (mm/rev) 0.04 0.09 0.12 0.14 Mold Steel <40HRC 30 Spindle Revolution (min-1) 3,100 1,500 1,200 900 Feed Rate (mm/rev) 0.03 0.06 0.08 0.10 <50HRC 25 Spindle Revolution (min-1) 2,700 1,400 1,000 800 Feed Rate (mm/rev) 0.02 0.04 0.05 0.06 Stainless Steel SUS303, SUS416, etc. <9HRC 95 Spindle Revolution (min-1) 9,900 4,900 3,700 3,000 Feed Rate (mm/rev) 0.06 0.12 0.16 0.21 <28HRC 60 Spindle Revolution (min-1) 6,300 3,200 2,400 1,900 Feed Rate (mm/rev) 0.05 0.10 0.13 0.16 Stainless Steel SUS304, SUS316, etc. <28HRC 45 Spindle Revolution (min-1) 4,800 2,400 1,800 1,500 Feed Rate (mm/rev) 0.05 0.10 0.13 0.16 <40HRC 35 Spindle Revolution (min-1) 3,600 1,800 1,300 1,100 Feed Rate (mm/rev) 0.04 0.08 0.11 0.14 Titanium Alloys Ti-6Al-4V, etc. <28HRC 65 Spindle Revolution (min-1) 6,900 3,500 2,600 2,100 Feed Rate (mm/rev) 0.04 0.08 0.11 0.13 <38HRC 50 Spindle Revolution (min-1) 5,200 2,600 1,900 1,600 Feed Rate (mm/rev) 0.04 0.08 0.10 0.13 <47HRC 25 Spindle Revolution (min-1) 2,700 1,400 1,000 800 Feed Rate (mm/rev) 0.03 0.06 0.08 0.10 Superalloy Inconel 625, etc. <32HRC 30 Spindle Revolution (min-1) 3,100 1,500 1,200 900 Feed Rate (mm/rev) 0.02 0.04 0.05 0.07 <43HRC 15 Spindle Revolution (min-1) 1,600 800 600 500 Feed Rate (mm/rev) 0.02 0.03 0.04 0.05 Cast Iron < 19HRC 110 Spindle Revolution (min-1) 11,600 5,800 4,400 3,500 Feed Rate (mm/rev) 0.11 0.22 0.29 0.36 <26HRC 100 Spindle Revolution (min-1) 10,800 5,400 4,100 3,200 Feed Rate (mm/rev) 0.11 0.22 0.29 0.36 Aluminum Alloys A7075, etc. 200 Spindle Revolution (min-1) 21,300 10,700 8,000 6,400 Feed Rate (mm/rev) 0.12 0.24 0.32 0.40 Copper alloys Brass, etc. 170 Spindle Revolution (min-1) 17,800 8,900 6,700 5,300 Feed Rate (mm/rev) 0.05 0.10 0.13 0.16 Beryllium Copper, etc. 135 Spindle Revolution (min-1) 14,200 7,100 5,300 4,300 Feed Rate (mm/rev) 0.05 0.10 0.13 0.16 L103 Solid Tools
