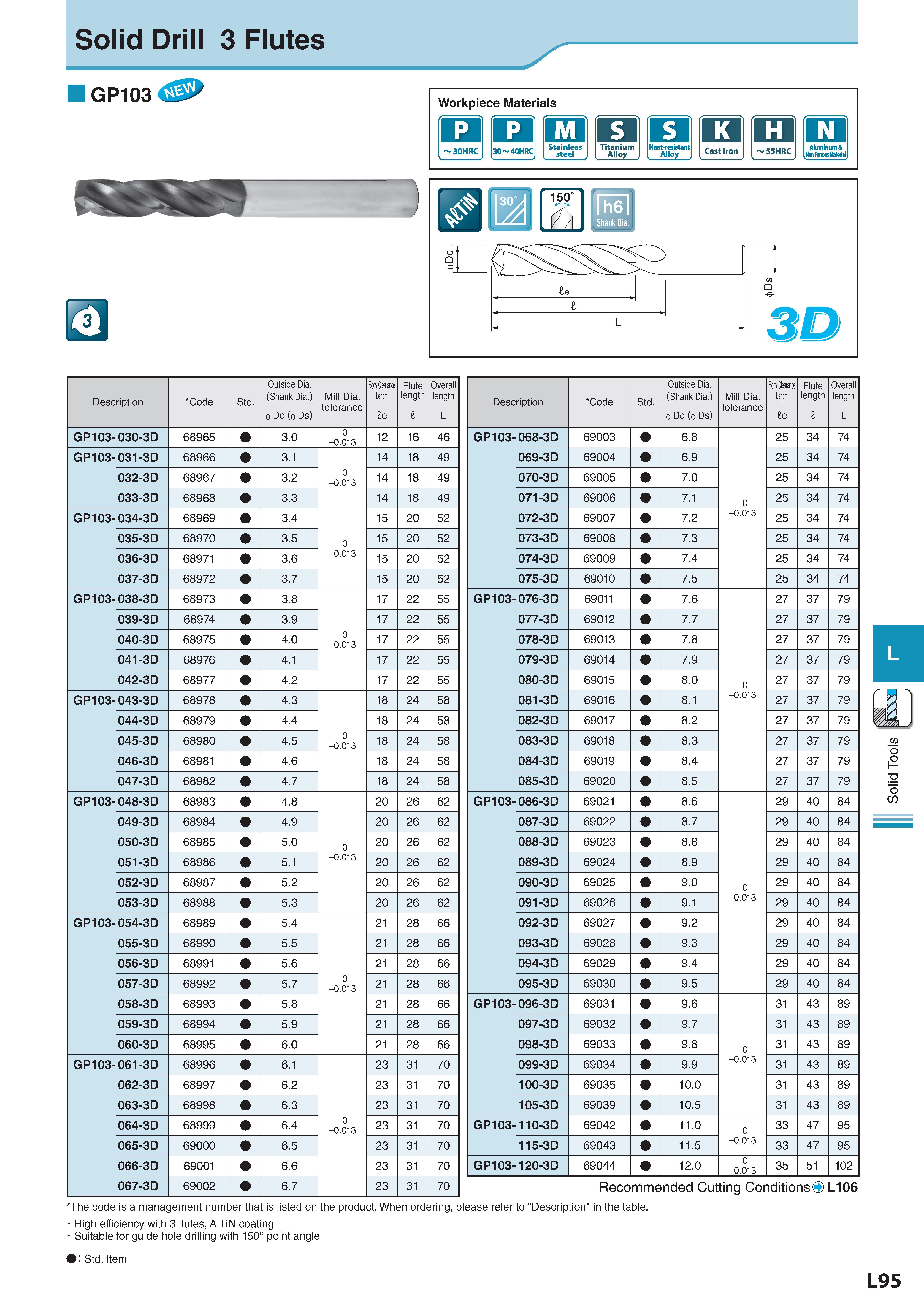

Solid Drill 3 Flutes GP103 -> Description Обозначение Code Std. Outside Dia. (Shank Dia.) Mill Dia. tolerance Body Clearance Length Flute length Overall length 0 Dc ( Ds) le l L GP103- 030-3D 68965 3.0 0 -0.013 12 16 46 GP103- 031-3D 68966 3.1 0 -0.013 14 18 49 032-3D 68967 3.2 14 18 49 033-3D 68968 3.3 14 18 49 GP103- 034-3D 68969 3.4 0 -0.013 15 20 52 035-3D 68970 3.5 15 20 52 036-3D 68971 3.6 15 20 52 037-3D 68972 3.7 15 20 52 GP103- 038-3D 68973 3.8 0 -0.013 17 22 55 039-3D 68974 3.9 17 22 55 040-3D 68975 4.0 17 22 55 041-3D 68976 4.1 17 22 55 042-3D 68977 4.2 17 22 55 GP103- 043-3D 68978 4.3 0 -0.013 18 24 58 044-3D 68979 4.4 18 24 58 045-3D 68980 4.5 18 24 58 046-3D 68981 4.6 18 24 58 047-3D 68982 4.7 18 24 58 GP103- 048-3D 68983 4.8 0 -0.013 20 26 62 049-3D 68984 4.9 20 26 62 050-3D 68985 5.0 20 26 62 051-3D 68986 5.1 20 26 62 052-3D 68987 5.2 20 26 62 053-3D 68988 5.3 20 26 62 GP103- 054-3D 68989 5.4 0 -0.013 21 28 66 055-3D 68990 5.5 21 28 66 056-3D 68991 5.6 21 28 66 057-3D 68992 5.7 21 28 66 058-3D 68993 5.8 21 28 66 059-3D 68994 5.9 21 28 66 060-3D 68995 6.0 21 28 66 GP103- 061-3D 68996 6.1 0 -0.013 23 31 70 062-3D 68997 6.2 23 31 70 063-3D 68998 6.3 23 31 70 064-3D 68999 6.4 23 31 70 065-3D 69000 6.5 23 31 70 066-3D 69001 6.6 23 31 70 067-3D 69002 6.7 23 31 70 Description Обозначение Code Std. Outside Dia. (Shank Dia.) Mill Dia. Body Clearance Length Flute length Overall length 0 Dc (0 Ds) tolerance le l L GP103- 068-3D 69003 6.8 25 34 74 069-3D 69004 6.9 25 34 74 070-3D 69005 7.0 25 34 74 071-3D 69006 7.1 0 25 34 74 072-3D 69007 7.2 -0.013 25 34 74 073-3D 69008 7.3 25 34 74 074-3D 69009 7.4 25 34 74 075-3D 69010 7.5 25 34 74 GP103- 076-3D 69011 7.6 27 37 79 077-3D 69012 7.7 27 37 79 078-3D 69013 7.8 27 37 79 079-3D 69014 7.9 27 37 79 080-3D 69015 8.0 0 27 37 79 081-3D 69016 8.1 -0.013 27 37 79 082-3D 69017 8.2 27 37 79 083-3D 69018 8.3 27 37 79 084-3D 69019 8.4 27 37 79 085-3D 69020 8.5 27 37 79 GP103- 086-3D 69021 8.6 29 40 84 087-3D 69022 8.7 29 40 84 088-3D 69023 8.8 29 40 84 089-3D 69024 8.9 29 40 84 090-3D 69025 9.0 0 29 40 84 091-3D 69026 9.1 -0.013 29 40 84 092-3D 69027 9.2 29 40 84 093-3D 69028 9.3 29 40 84 094-3D 69029 9.4 29 40 84 095-3D 69030 9.5 29 40 84 GP103- 096-3D 69031 9.6 31 43 89 097-3D 69032 9.7 31 43 89 098-3D 69033 9.8 0 31 43 89 099-3D 69034 9.9 -0.013 31 43 89 100-3D 69035 10.0 31 43 89 105-3D 69039 10.5 31 43 89 GP103- 110-3D 69042 11.0 0 33 47 95 115-3D 69043 11.5 -0.013 33 47 95 GP103- 120-3D 69044 12.0 0 -0.013 35 51 102 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L106 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. High efficiency with 3 flutes, AlTiN coating Suitable for guide hole drilling with 150° point angle : Std. Item Стандартная позиция L95 Solid Tools
