737 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L94

Каталог KYOCERA 2017 Инструмент режущий Стр. L94 0737 Lab2u

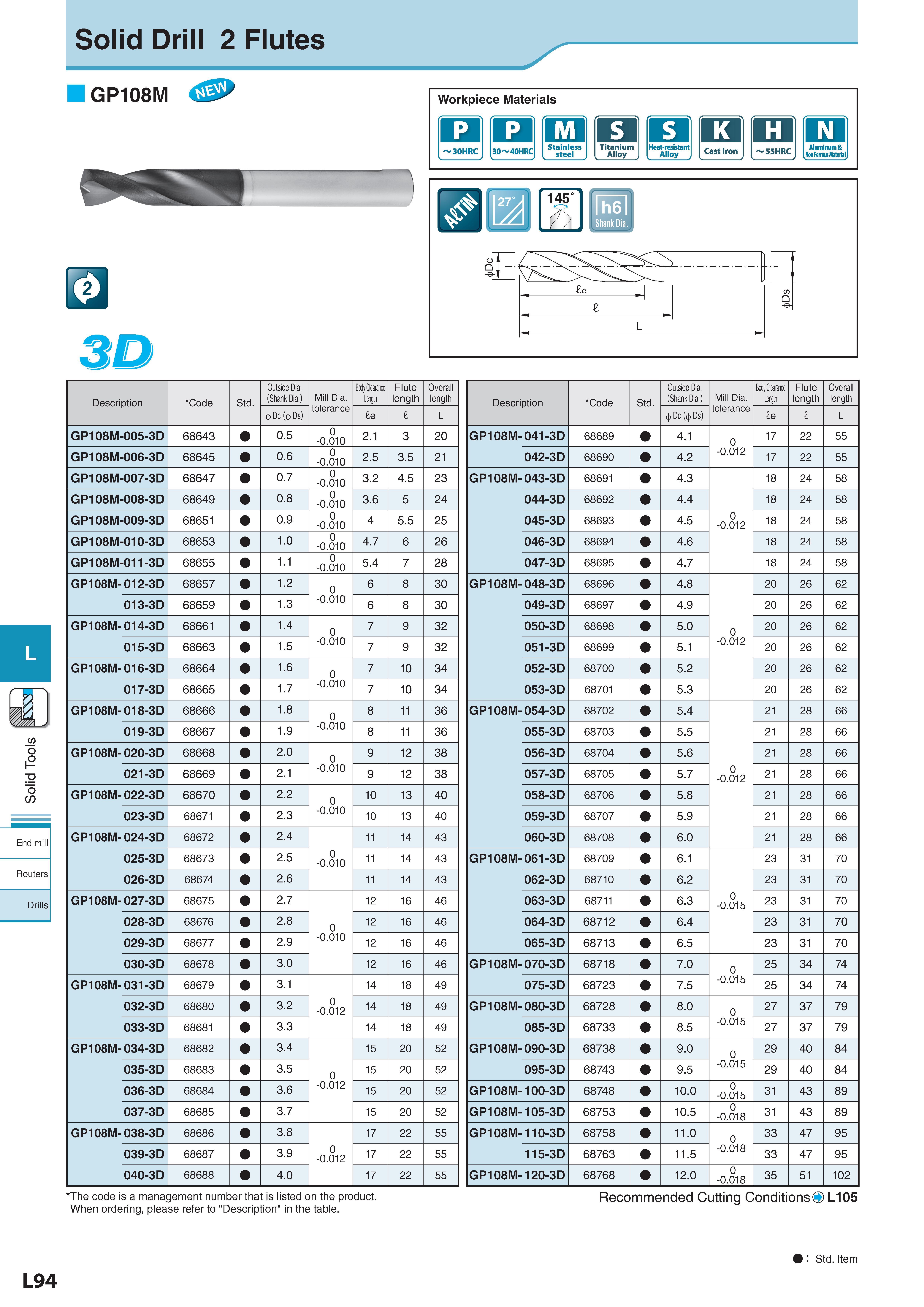

End mill Routers Solid Drill 2 Flutes GP108M 3D L Description Обозначение Code Std. Outside Dia. (Shank Dia.) Mill Dia. tolerance Body Clearance Length Flute length Overall length 4 Dc (4 Ds) le l L GP108M-005-3D 68643 0.5 0 -0.010 2.1 3 20 GP108M-006-3D 68645 0.6 0 -0.010 2.5 3.5 21 GP108M-007-3D 68647 0.7 0 -0.010 3.2 4.5 23 GP108M-008-3D 68649 0.8 0 -0.010 3.6 5 24 GP108M-009-3D 68651 0.9 0 -0.010 4 5.5 25 GP108M-010-3D 68653 1.0 0 -0.010 4.7 6 26 GP108M-011-3D 68655 1.1 0 -0.010 5.4 7 28 GP108M- 012-3D 68657 1.2 0 -0.010 6 8 30 013-3D 68659 1.3 6 8 30 GP108M- 014-3D 68661 1.4 0 -0.010 7 9 32 015-3D 68663 1.5 7 9 32 GP108M- 016-3D 68664 1.6 0 -0.010 7 10 34 017-3D 68665 1.7 7 10 34 GP108M- 018-3D 68666 1.8 0 -0.010 8 11 36 019-3D 68667 1.9 8 11 36 GP108M- 020-3D 68668 2.0 0 -0.010 9 12 38 021-3D 68669 2.1 9 12 38 GP108M- 022-3D 68670 2.2 0 -0.010 10 13 40 023-3D 68671 2.3 10 13 40 GP108M- 024-3D 68672 2.4 0 -0.010 11 14 43 025-3D 68673 2.5 11 14 43 026-3D 68674 2.6 11 14 43 GP108M- 027-3D 68675 2.7 0 -0.010 12 16 46 028-3D 68676 2.8 12 16 46 029-3D 68677 2.9 12 16 46 030-3D 68678 3.0 12 16 46 GP108M- 031-3D 68679 3.1 0 -0.012 14 18 49 032-3D 68680 3.2 14 18 49 033-3D 68681 3.3 14 18 49 GP108M- 034-3D 68682 3.4 0 -0.012 15 20 52 035-3D 68683 3.5 15 20 52 036-3D 68684 3.6 15 20 52 037-3D 68685 3.7 15 20 52 GP108M- 038-3D 68686 3.8 0 -0.012 17 22 55 039-3D 68687 3.9 17 22 55 040-3D 68688 4.0 17 22 55 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. Description Обозначение Code Std. Outside Dia. (Shank Dia.) Mill Dia. Body Clearance Length Flute length Overall length 4 Dc (4 Ds) tolerance le l L GP108M- 041-3D 68689 4.1 0 17 22 55 042-3D 68690 4.2 -0.012 17 22 55 GP108M- 043-3D 68691 4.3 18 24 58 044-3D 68692 4.4 18 24 58 045-3D 68693 4.5 0 -0.012 18 24 58 046-3D 68694 4.6 18 24 58 047-3D 68695 4.7 18 24 58 GP108M- 048-3D 68696 4.8 20 26 62 049-3D 68697 4.9 20 26 62 050-3D 68698 5.0 0 20 26 62 051-3D 68699 5.1 -0.012 20 26 62 052-3D 68700 5.2 20 26 62 053-3D 68701 5.3 20 26 62 GP108M- 054-3D 68702 5.4 21 28 66 055-3D 68703 5.5 21 28 66 056-3D 68704 5.6 21 28 66 057-3D 68705 5.7 0 -0.012 21 28 66 058-3D 68706 5.8 21 28 66 059-3D 68707 5.9 21 28 66 060-3D 68708 6.0 21 28 66 GP108M- 061-3D 68709 6.1 23 31 70 062-3D 68710 6.2 23 31 70 063-3D 68711 6.3 0 -0.015 23 31 70 064-3D 68712 6.4 23 31 70 065-3D 68713 6.5 23 31 70 GP108M- 070-3D 68718 7.0 0 25 34 74 075-3D 68723 7.5 -0.015 25 34 74 GP108M- 080-3D 68728 8.0 0 27 37 79 085-3D 68733 8.5 -0.015 27 37 79 GP108M- 090-3D 68738 9.0 0 29 40 84 095-3D 68743 9.5 -0.015 29 40 84 GP108M- 100-3D 68748 10.0 0 -0.015 31 43 89 GP108M- 105-3D 68753 10.5 0 -0.018 31 43 89 GP108M- 110-3D 68758 11.0 0 33 47 95 115-3D 68763 11.5 -0.018 33 47 95 GP108M- 120-3D 68768 12.0 0 -0.018 35 51 102 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L105 L94 : Std. Item
