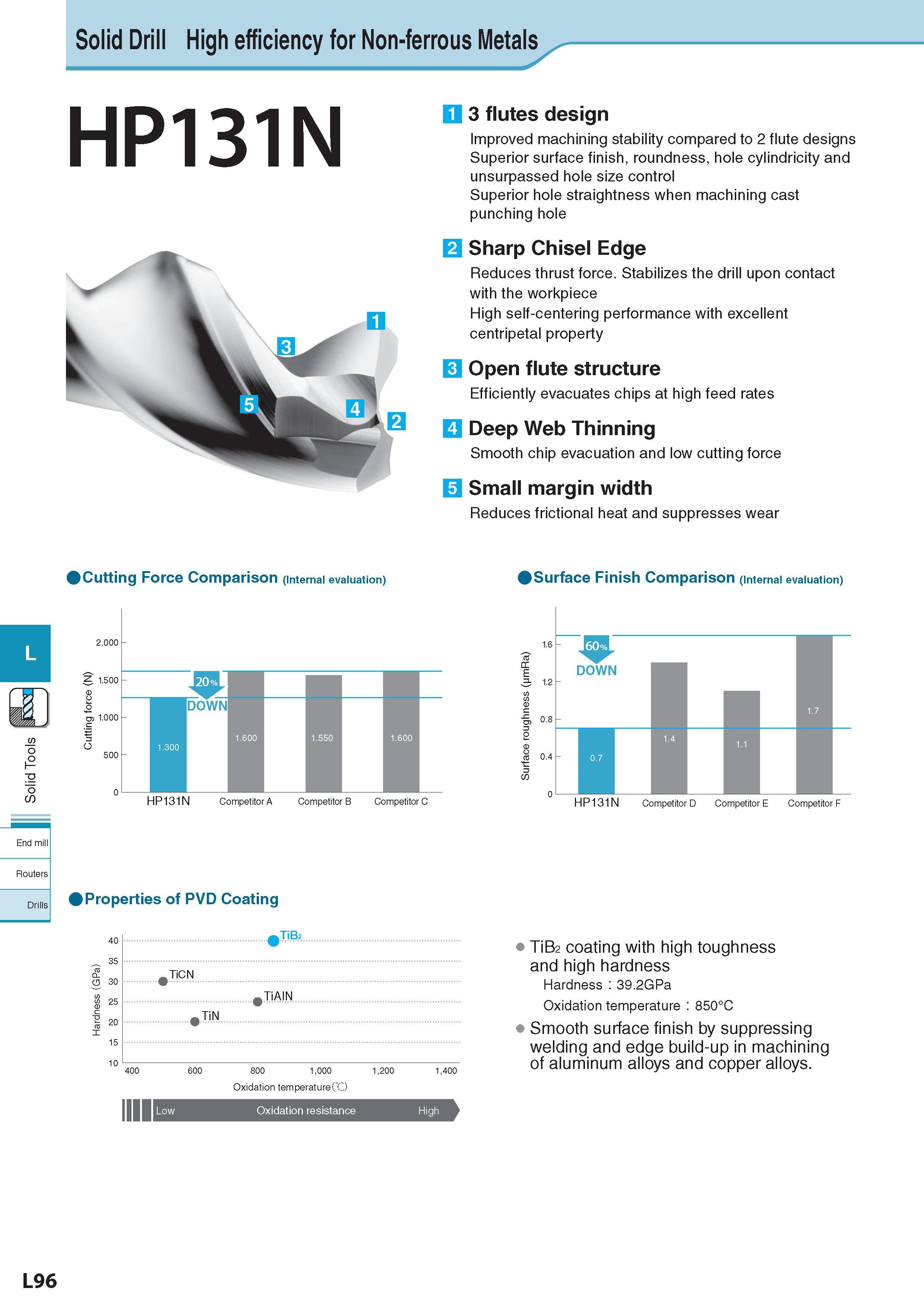

Solid Drill High efficiency for Non-ferrous Metals HP131N 1 3 flutes design Improved machining stability compared to 2 flute designs Superior surface finish, roundness, hole cylindricity and unsurpassed hole size control Superior hole straightness when machining cast punching hole 2 Sharp Chisel Edge Reduces thrust force. Stabilizes the drill upon contact with the workpiece High self-centering performance with excellent centripetal property 3 Open flute structure Efficiently evacuates chips at high feed rates 4 Deep Web Thinning Smooth chip evacuation and low cutting force 5 Small margin width Reduces frictional heat and suppresses wear Cutting Force Comparison (Internal evaluation) Surface Finish Comparison (Internal evaluation) O) 1.000 1.550 cC cc (0 0.4 n w DOWN 1.4 1 1.1 HP131N Competitor A Competitor B Competitor C HP131N Competitor D Competitor E Competitor F Properties of PVD Coating lllll Oxidation temperatureCC) Oxidation resistance TiB2 coating with high toughness and high hardness Hardness : 39.2GPa Oxidation temperature : 850°C Smooth surface finish by suppressing welding and edge build-up in machining of aluminum alloys and copper alloys. 1.6 .500 1.2 500 0 0 End mill High L96
