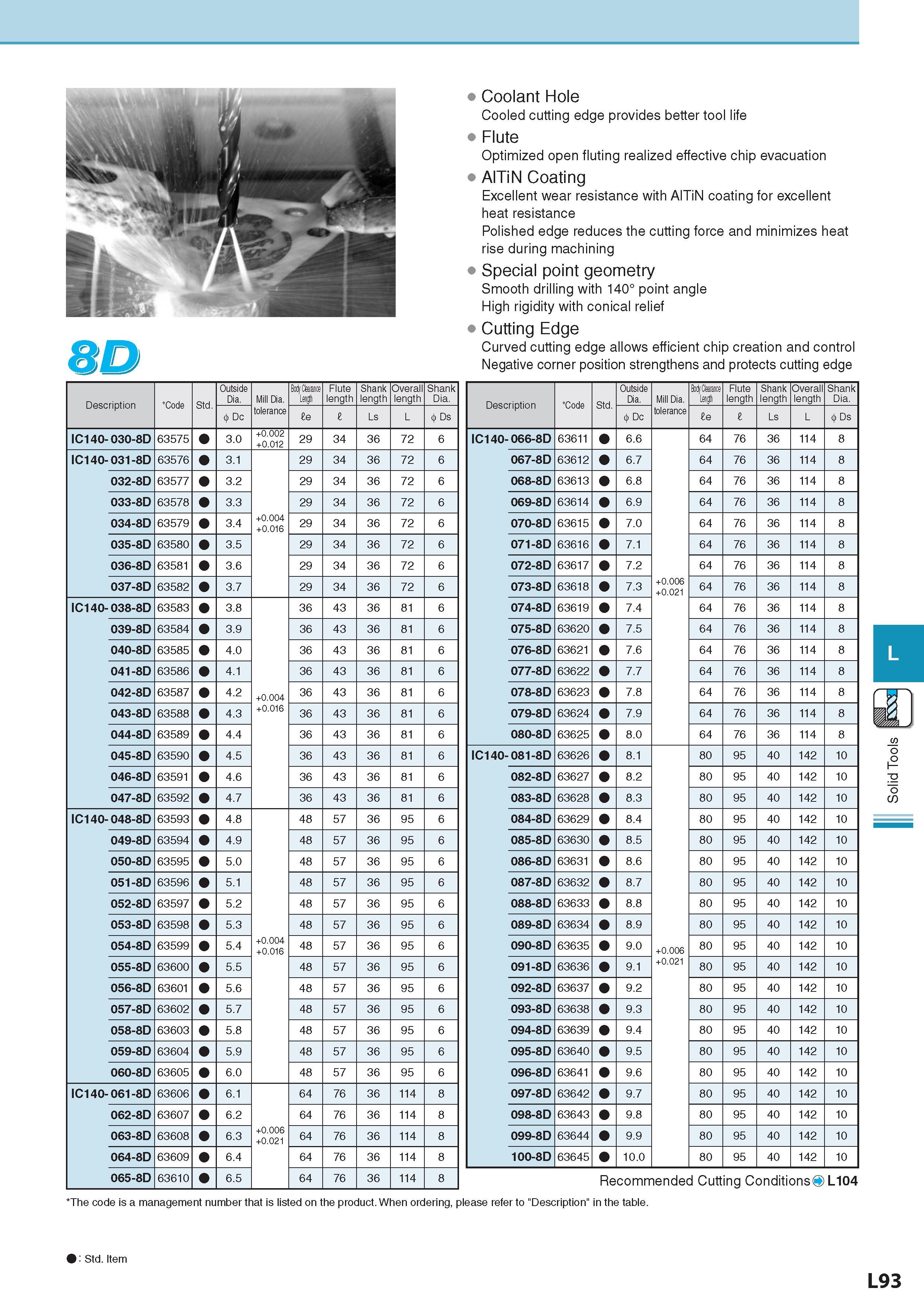

736 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L93

Каталог KYOCERA 2017 Инструмент режущий Стр. L93 0736 Lab2u

Description Code Std. Outside Dia. Mill Dia. Body Cbaoe Length Flute length Shank length Overall length Shank Dia. 4> Dc tolerance le l Ls L 4> Ds IC140- 030-8D 63575 3.0 +0.002 +0.012 29 34 36 72 6 IC140- 031-8D 63576 3.1 29 34 36 72 6 032-8D 63577 3.2 29 34 36 72 6 033-8D 63578 3.3 29 34 36 72 6 034-8D 63579 3.4 +0.004 +0.016 29 34 36 72 6 035-8D 63580 3.5 29 34 36 72 6 036-8D 63581 3.6 29 34 36 72 6 037-8D 63582 3.7 29 34 36 72 6 IC140- 038-8D 63583 3.8 36 43 36 81 6 039-8D 63584 3.9 36 43 36 81 6 040-8D 63585 4.0 36 43 36 81 6 041-8D 63586 4.1 36 43 36 81 6 042-8D 63587 4.2 +0.004 36 43 36 81 6 043-8D 63588 4.3 +0.016 36 43 36 81 6 044-8D 63589 4.4 36 43 36 81 6 045-8D 63590 4.5 36 43 36 81 6 046-8D 63591 4.6 36 43 36 81 6 047-8D 63592 4.7 36 43 36 81 6 IC140- 048-8D 63593 4.8 48 57 36 95 6 049-8D 63594 4.9 48 57 36 95 6 050-8D 63595 5.0 48 57 36 95 6 051-8D 63596 5.1 48 57 36 95 6 052-8D 63597 5.2 48 57 36 95 6 053-8D 63598 5.3 48 57 36 95 6 054-8D 63599 5.4 +0.004 +0.016 48 57 36 95 6 055-8D 63600 5.5 48 57 36 95 6 056-8D 63601 5.6 48 57 36 95 6 057-8D 63602 5.7 48 57 36 95 6 058-8D 63603 5.8 48 57 36 95 6 059-8D 63604 5.9 48 57 36 95 6 060-8D 63605 6.0 48 57 36 95 6 IC140- 061-8D 63606 6.1 64 76 36 114 8 062-8D 63607 6.2 64 76 36 114 8 063-8D 63608 6.3 +0.006 +0.021 64 76 36 114 8 064-8D 63609 6.4 64 76 36 114 8 065-8D 63610 6.5 64 76 36 114 8 Coolant Hole Cooled cutting edge provides better tool life Flute Optimized open fluting realized effective chip evacuation AlTiN Coating Excellent wear resistance with AlTiN coating for excellent heat resistance Polished edge reduces the cutting force and minimizes heat rise during machining Special point geometry Smooth drilling with 140° point angle High rigidity with conical relief Cutting Edge Curved cutting edge allows efficient chip creation and control Negative corner position strengthens and protects cutting edge Description Обозначение Code Std. Outside Dia. Mill Dia. Body Clearance Length Flute length Shank length Overall length Shank Dia. 4> Dc tolerance le l Ls L 4> Ds IC140- 066-8D 63611 6.6 64 76 36 114 8 067-8D 63612 6.7 64 76 36 114 8 068-8D 63613 6.8 64 76 36 114 8 069-8D 63614 6.9 64 76 36 114 8 070-8D 63615 7.0 64 76 36 114 8 071-8D 63616 7.1 64 76 36 114 8 072-8D 63617 7.2 64 76 36 114 8 073-8D 63618 7.3 +0.006 +0.021 64 76 36 114 8 074-8D 63619 7.4 64 76 36 114 8 075-8D 63620 7.5 64 76 36 114 8 076-8D 63621 7.6 64 76 36 114 8 077-8D 63622 7.7 64 76 36 114 8 078-8D 63623 7.8 64 76 36 114 8 079-8D 63624 7.9 64 76 36 114 8 080-8D 63625 8.0 64 76 36 114 8 IC140- 081-8D 63626 8.1 80 95 40 142 10 082-8D 63627 8.2 80 95 40 142 10 083-8D 63628 8.3 80 95 40 142 10 084-8D 63629 8.4 80 95 40 142 10 085-8D 63630 8.5 80 95 40 142 10 086-8D 63631 8.6 80 95 40 142 10 087-8D 63632 8.7 80 95 40 142 10 088-8D 63633 8.8 80 95 40 142 10 089-8D 63634 8.9 80 95 40 142 10 090-8D 63635 9.0 +0.006 80 95 40 142 10 091-8D 63636 9.1 +0.021 80 95 40 142 10 092-8D 63637 9.2 80 95 40 142 10 093-8D 63638 9.3 80 95 40 142 10 094-8D 63639 9.4 80 95 40 142 10 095-8D 63640 9.5 80 95 40 142 10 096-8D 63641 9.6 80 95 40 142 10 097-8D 63642 9.7 80 95 40 142 10 098-8D 63643 9.8 80 95 40 142 10 099-8D 63644 9.9 80 95 40 142 10 100-8D 63645 10.0 80 95 40 142 10 Recommended Cutting Conditions Рекомендованные режимы резания на станкахO L104 The code is a management number that is listed on the product. When ordering, please refer to "Description" in the table. : Std. Item Стандартная позиция L93 Solid Tools
