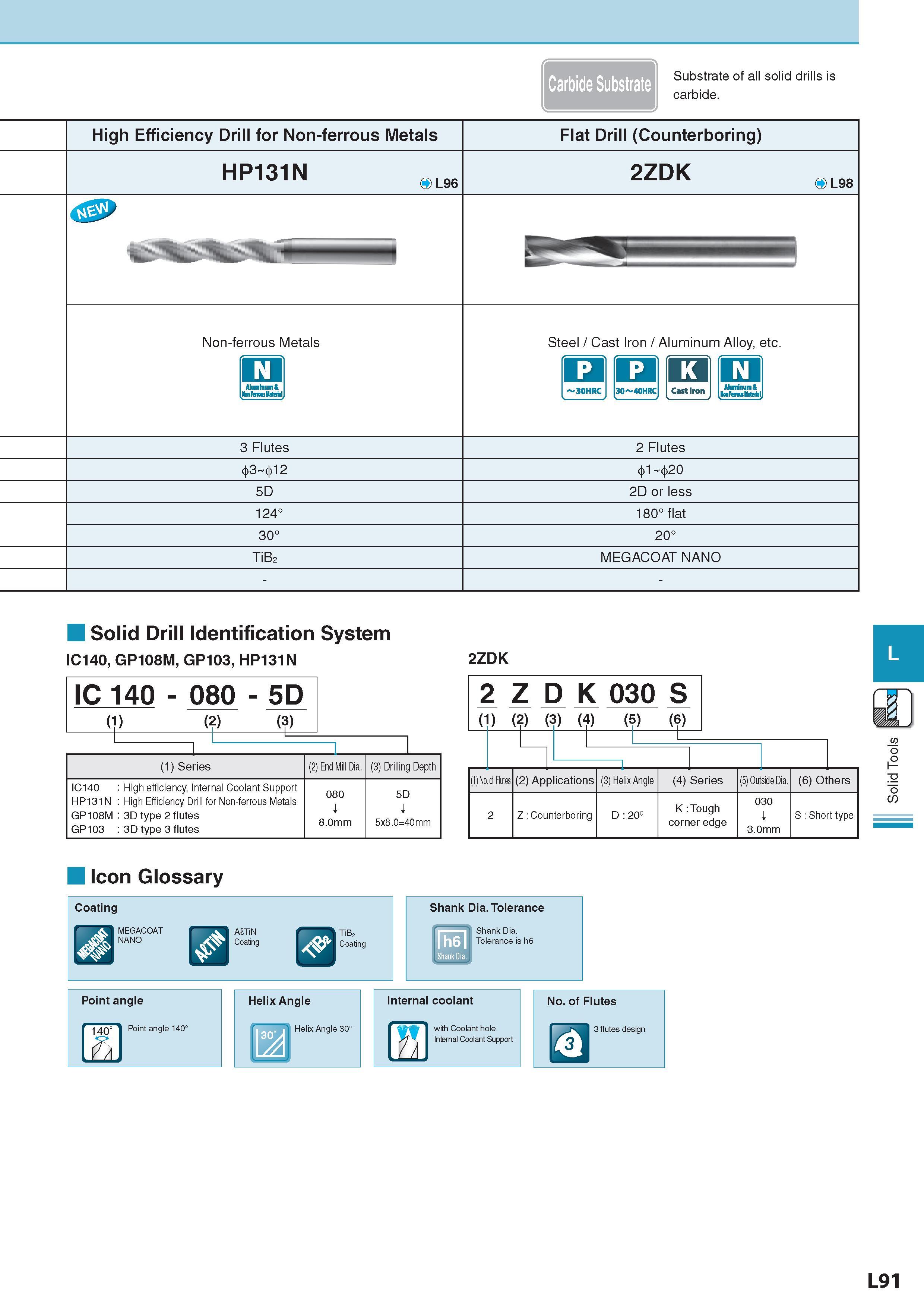

Carbide Substrate Substrate of all solid drills is carbide. High Efficiency Drill for Non-ferrous Metals Flat Drill (Counterboring) HP131N 2ZDK Non-ferrous Metals Steel / Cast Iron / Aluminum Alloy, etc. DUD 3 Flutes 2 Flutes 3 12 1 20 5D 2D or less 124° 180° flat 30° 20° TiB2 MEGACOAT NANO Solid Drill Identification System IC140, GP108M, GP103, HP131N IC 140 - 080 - 5D (1) (2) (3) (1) Series (2) End Mill Dia. (3) Drilling Depth IC140 HP131N GP108M GP103 High efficiency, Internal Coolant Support High Efficiency Drill for Non-ferrous Metals 3D type 2 flutes 3D type 3 flutes 080 i 8.0mm 5D i 5x8.0=40mm 2ZDK 2 Z D K 030 S (1) (2) (3) (4) (5) (6) (1) No. of Flutes (2) Applications (3) Helix Angle (4) Series (5) Outside Dia. (6) Others 2 Z : Counterboring 00 D K:Tough corner edge 030 i 3.0mm S : Short type Icon Glossary Helix Angle Helix Angle 30° No. of Flutes 3 flutes design L91 Solid Tools
