731 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.L88

Каталог KYOCERA 2017 Инструмент режущий Стр. L88 0731 Lab2u

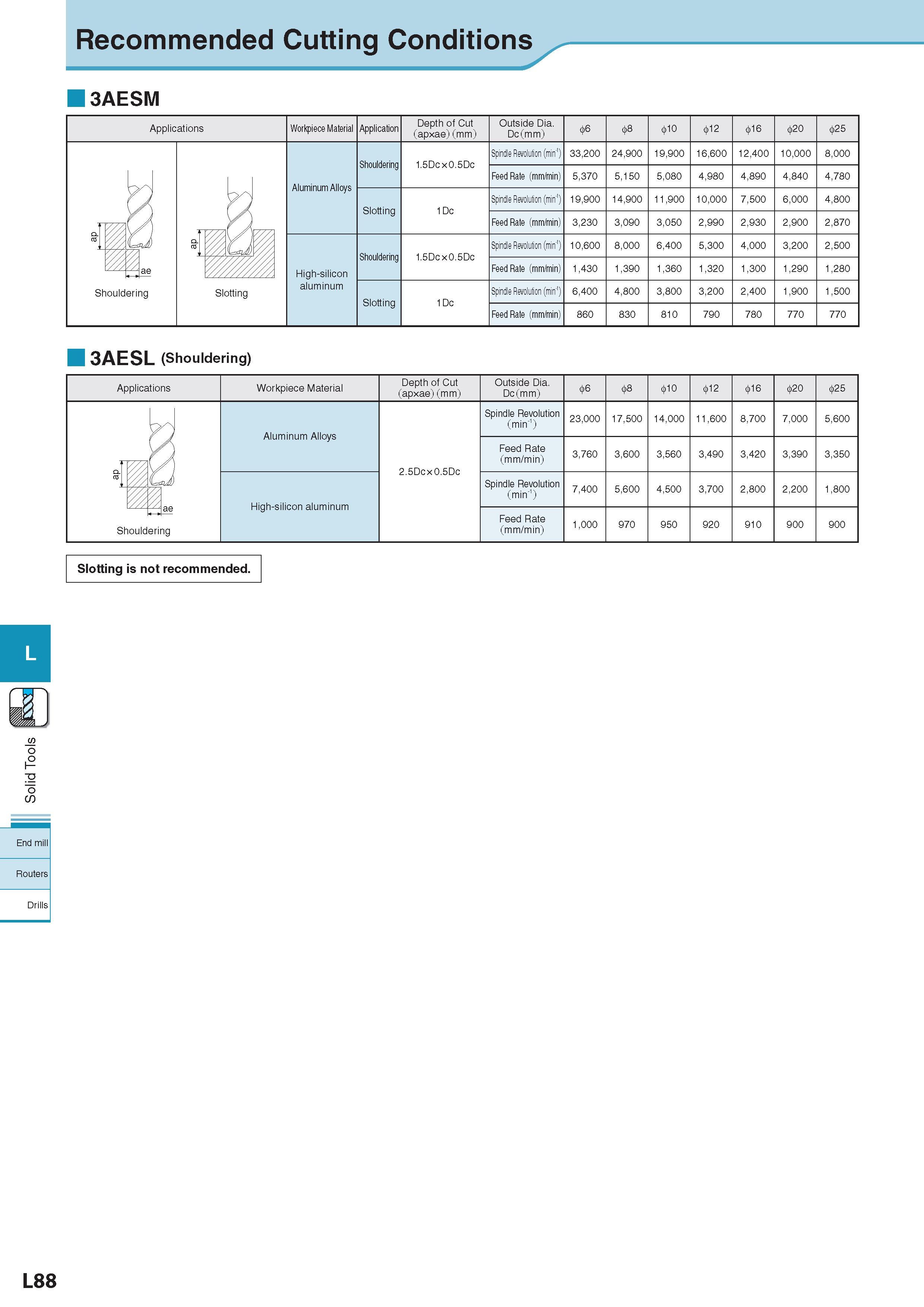

Recommended Cutting Conditions Рекомендованные режимы резания на станках 3AESM Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. D((mm) 6 8 10 12 16 20 25 Aluminum Alloys Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 33,200 24,900 19,900 16,600 12,400 10,000 8,000 1 H Feed Rate (mm/min) 5,370 5,150 5,080 4,980 4,890 4,840 4,780 Slotting 1Dc Spindle Revolution (min-1) 19,900 14,900 11,900 10,000 7,500 6,000 4,800 CC I Feed Rate (mm/min) 3,230 3,090 3,050 2,990 2,930 2,900 2,870 CC cl High-silicon aluminum Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 10,600 8,000 6,400 5,300 4,000 3,200 2,500 ae vxcyyyxc/ Feed Rate (mm/min) 1,430 1,390 1,360 1,320 1,300 1,290 1,280 Shouldering Slotting Slotting 1Dc Spindle Revolution (min-1) 6,400 4,800 3,800 3,200 2,400 1,900 1,500 Feed Rate (mm/min) 860 830 810 790 780 770 770 3AESL (Shouldering) Applications Workpiece Material Обрабатываемый материал Depth of Cut (apxae) (mm) Outside Dia. Dc(mm) 6 8 10 12 16 20 25 Aluminum Alloys 2.5Dcx0.5Dc Spindle Revolution (min-1) 23,000 17,500 14,000 11,600 8,700 7,000 5,600 Feed Rate (mm/min) 3,760 3,600 3,560 3,490 3,420 3,390 3,350 CC High-silicon aluminum Spindle Revolution (min-1) 7,400 5,600 4,500 3,700 2,800 2,200 1,800 // Should ering Feed Rate (mm/min) 1,000 970 950 920 910 900 900 Slotting is not recommended. End mill Routers L88
