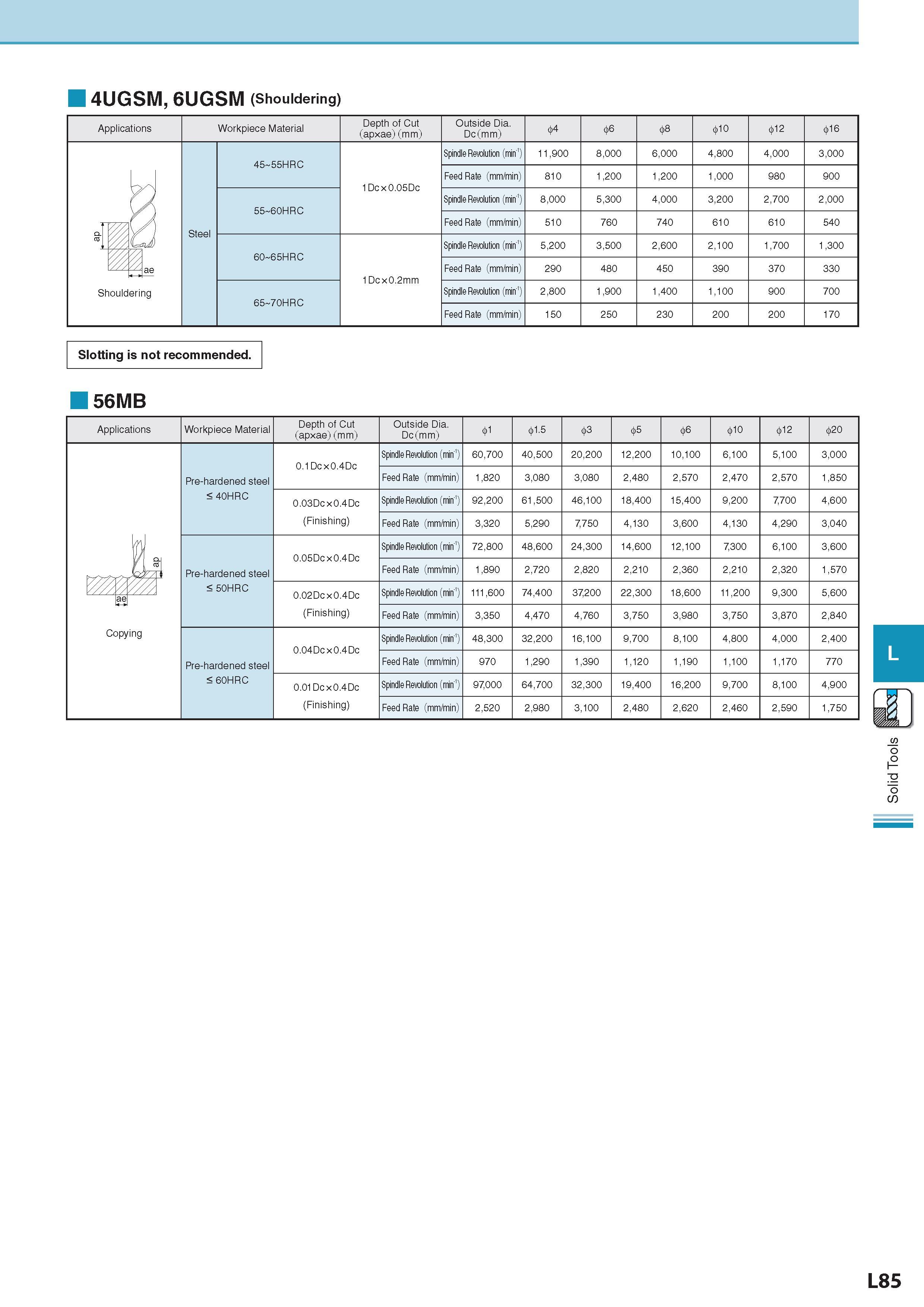

4UGSM, 6UGSM (Shouldering) Applications Workpiece Material Обрабатываемый материал Depth of Cut (apxae) (mm) Outside Dia. Dc(mm) 4 6 8 10 12 16 Steel 45 55HRC 1Dcx0.05Dc Spindle Revolution (min-1) 11,900 8,000 6,000 4,800 4,000 3,000 1 Feed Rate (mm/min) 810 1,200 1,200 1,000 980 900 55 60HRC Spindle Revolution (min-1) 8,000 5,300 4,000 3,200 2,700 2,000 CC i Feed Rate (mm/min) 510 760 740 610 610 540 60 65HRC 1Dcx0.2mm Spindle Revolution (min-1) 5,200 3,500 2,600 2,100 1,700 1,300 77 ae Feed Rate (mm/min) 290 480 450 390 370 330 Shouldering 65 70HRC Spindle Revolution (min-1) 2,800 1,900 1,400 1,100 900 700 Feed Rate (mm/min) 150 250 230 200 200 170 Slotting is not recommended. 56MB Applications Workpiece Material Обрабатываемый материал Depth of Cut (apxae) (mm) Outside Dia. D(mm) 1 1.5 3 5 6 10 12 20 Pre-hardened steel < 40HRC 0.1Dcx0.4Dc Spindle Revolution (min-1) 60,700 40,500 20,200 12,200 10,100 6,100 5,100 3,000 Feed Rate (mm/min) 1,820 3,080 3,080 2,480 2,570 2,470 2,570 1,850 0.03Dcx0.4Dc (Finishing) Spindle Revolution (min-1) 92,200 61,500 46,100 18,400 15,400 9,200 7,700 4,600 Feed Rate (mm/min) 3,320 5,290 7,750 4,130 3,600 4,130 4,290 3,040 Wifi, VY/. Pre-hardened steel < 50HRC 0.05Dcx0.4Dc Spindle Revolution (min-1) 72,800 48,600 24,300 14,600 12,100 7,300 6,100 3,600 Feed Rate (mm/min) 1,890 2,720 2,820 2,210 2,360 2,210 2,320 1,570 0.02Dcx0.4Dc (Finishing) Spindle Revolution (min-1) 111,600 74,400 37,200 22,300 18,600 11,200 9,300 5,600 ae Copying Feed Rate (mm/min) 3,350 4,470 4,760 3,750 3,980 3,750 3,870 2,840 Pre-hardened steel < 60HRC 0.04Dc x0.4Dc Spindle Revolution (min-1) 48,300 32,200 16,100 9,700 8,100 4,800 4,000 2,400 Feed Rate (mm/min) 970 1,290 1,390 1,120 1,190 1,100 1,170 770 0.01Dcx0.4Dc (Finishing) Spindle Revolution (min-1) 97,000 64,700 32,300 19,400 16,200 9,700 8,100 4,900 Feed Rate (mm/min) 2,520 2,980 3,100 2,480 2,620 2,460 2,590 1,750 L85 Solid Tools
