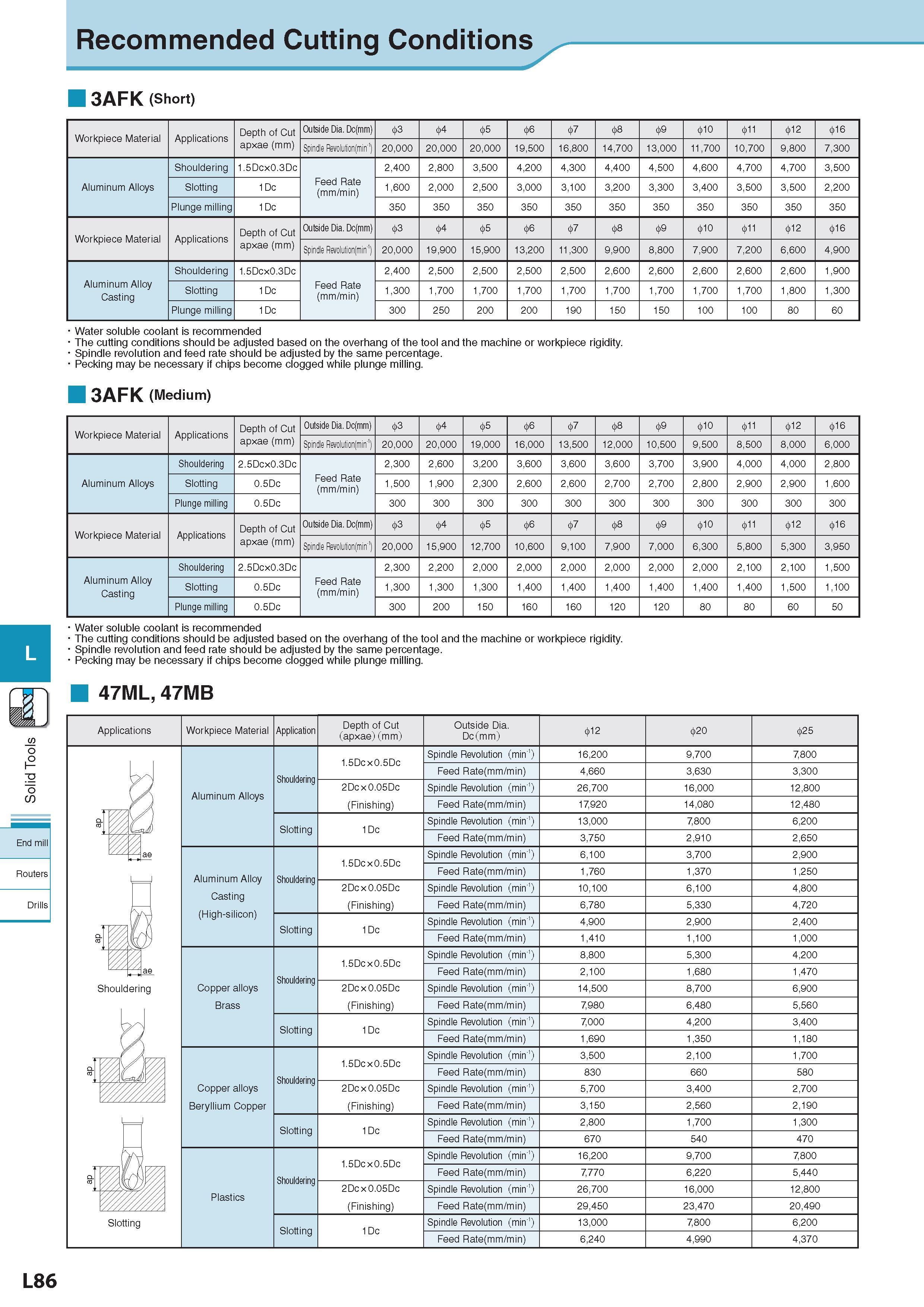

Recommended Cutting Conditions Рекомендованные режимы резания на станках 3AFK (Short) Workpiece Material Обрабатываемый материал Applications Depth of Cut apxae (mm) Outside Dia. Dc(mm) 03 04 05 06 07 08 09 010 011 012 016 Spindle Revolution(min-1) 20,000 20,000 20,000 19,500 16,800 14,700 13,000 11,700 10,700 9,800 7,300 Aluminum Alloys Shouldering 1.5Dcx0.3Dc Feed Rate (mm/min) 2,400 2,800 3,500 4,200 4,300 4,400 4,500 4,600 4,700 4,700 3,500 Slotting 1Dc 1,600 2,000 2,500 3,000 3,100 3,200 3,300 3,400 3,500 3,500 2,200 Plunge milling 1Dc 350 350 350 350 350 350 350 350 350 350 350 Workpiece Material Обрабатываемый материал Applications Depth of Cut apxae (mm) Outside Dia. Dc(mm) 03 04 05 06 07 08 09 010 011 012 016 Spindle Revolution(min-1) 20,000 19,900 15,900 13,200 11,300 9,900 8,800 7,900 7,200 6,600 4,900 Aluminum Alloy Casting Shouldering 1.5Dcx0.3Dc Feed Rate (mm/min) 2,400 2,500 2,500 2,500 2,500 2,600 2,600 2,600 2,600 2,600 1,900 Slotting 1Dc 1,300 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,700 1,800 1,300 Plunge milling 1Dc 300 250 200 200 190 150 150 100 100 80 60 Water soluble coolant is recommended The cutting conditions should be adjusted based on the overhang of the tool and the machine or workpiece rigidity. Spindle revolution and feed rate should be adjusted by the same percentage. Pecking may be necessary if chips become clogged while plunge milling. 3AFK (Medium) Workpiece Material Обрабатываемый материал Applications Depth of Cut apxae (mm) Outside Dia. Dc(mm) 03 04 05 06 07 08 09 010 011 012 016 Spindle Revolution(min-1) 20,000 20,000 19,000 16,000 13,500 12,000 10,500 9,500 8,500 8,000 6,000 Aluminum Alloys Shouldering 2.5Dcx0.3Dc Feed Rate (mm/min) 2,300 2,600 3,200 3,600 3,600 3,600 3,700 3,900 4,000 4,000 2,800 Slotting 0.5Dc 1,500 1,900 2,300 2,600 2,600 2,700 2,700 2,800 2,900 2,900 1,600 Plunge milling 0.5Dc 300 300 300 300 300 300 300 300 300 300 300 Workpiece Material Обрабатываемый материал Applications Depth of Cut apxae (mm) Outside Dia. Dc(mm) 03 04 05 06 07 08 09 010 011 012 016 Spindle Revolution(min-1) 20,000 15,900 12,700 10,600 9,100 7,900 7,000 6,300 5,800 5,300 3,950 Aluminum Alloy Casting Shouldering 2.5Dcx0.3Dc Feed Rate (mm/min) 2,300 2,200 2,000 2,000 2,000 2,000 2,000 2,000 2,100 2,100 1,500 Slotting 0.5Dc 1,300 1,300 1,300 1,400 1,400 1,400 1,400 1,400 1,400 1,500 1,100 Plunge milling 0.5Dc 300 200 150 160 160 120 120 80 80 60 50 End mill Routers Water soluble coolant is recommended The cutting conditions should be adjusted based on the overhang of the tool and the machine or workpiece rigidity. Spindle revolution and feed rate should be adjusted by the same percentage. Pecking may be necessary if chips become clogged while plunge milling. 47ML, 47MB Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc(mm) 012 020 025 Aluminum Alloys Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 16,200 9,700 7,800 Feed Rate(mm/min) 4,660 3,630 3,300 2Dcx0.05Dc (Finishing) Spindle Revolution (min-1) 26,700 16,000 12,800 Q Feed Rate(mm/min) 17,920 14,080 12,480 vXLl Slotting 1Dc Spindle Revolution (min-1) 13,000 7,800 6,200 w/7, Feed Rate(mm/min) 3,750 2,910 2,650 Aluminum Alloy Casting (High-silicon) Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 6,100 3,700 2,900 1 Feed Rate(mm/min) 1,760 1,370 1,250 2Dcx0.05Dc (Finishing) Spindle Revolution (min-1) 10,100 6,100 4,800 Feed Rate(mm/min) 6,780 5,330 4,720 Q. CD Slotting 1Dc Spindle Revolution (min-1) 4,900 2,900 2,400 Feed Rate(mm/min) 1,410 1,100 1,000 y/z/c Copper alloys Brass Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 8,800 5,300 4,200 Feed Rate(mm/min) 2,100 1,680 1,470 Shouldering LJ 2Dcx0.05Dc (Finishing) Spindle Revolution (min-1) 14,500 8,700 6,900 Feed Rate(mm/min) 7,980 6,480 5,560 Slotting 1Dc Spindle Revolution (min-1) 7,000 4,200 3,400 Feed Rate(mm/min) 1,690 1,350 1,180 Copper alloys Beryllium Copper Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 3,500 2,100 1,700 CD Feed Rate(mm/min) 830 660 580 2Dcx0.05Dc (Finishing) Spindle Revolution (min-1) 5,700 3,400 2,700 Feed Rate(mm/min) 3,150 2,560 2,190 Slotting 1Dc Spindle Revolution (min-1) 2,800 1,700 1,300 Feed Rate(mm/min) 670 540 470 Plastics Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 16,200 9,700 7,800 CD ntr Feed Rate(mm/min) 7,770 6,220 5,440 2Dcx0.05Dc (Finishing) Spindle Revolution (min-1) 26,700 16,000 12,800 Feed Rate(mm/min) 29,450 23,470 20,490 Slotting Slotting 1Dc Spindle Revolution (min-1) 13,000 7,800 6,200 Feed Rate(mm/min) 6,240 4,990 4,370 L86
