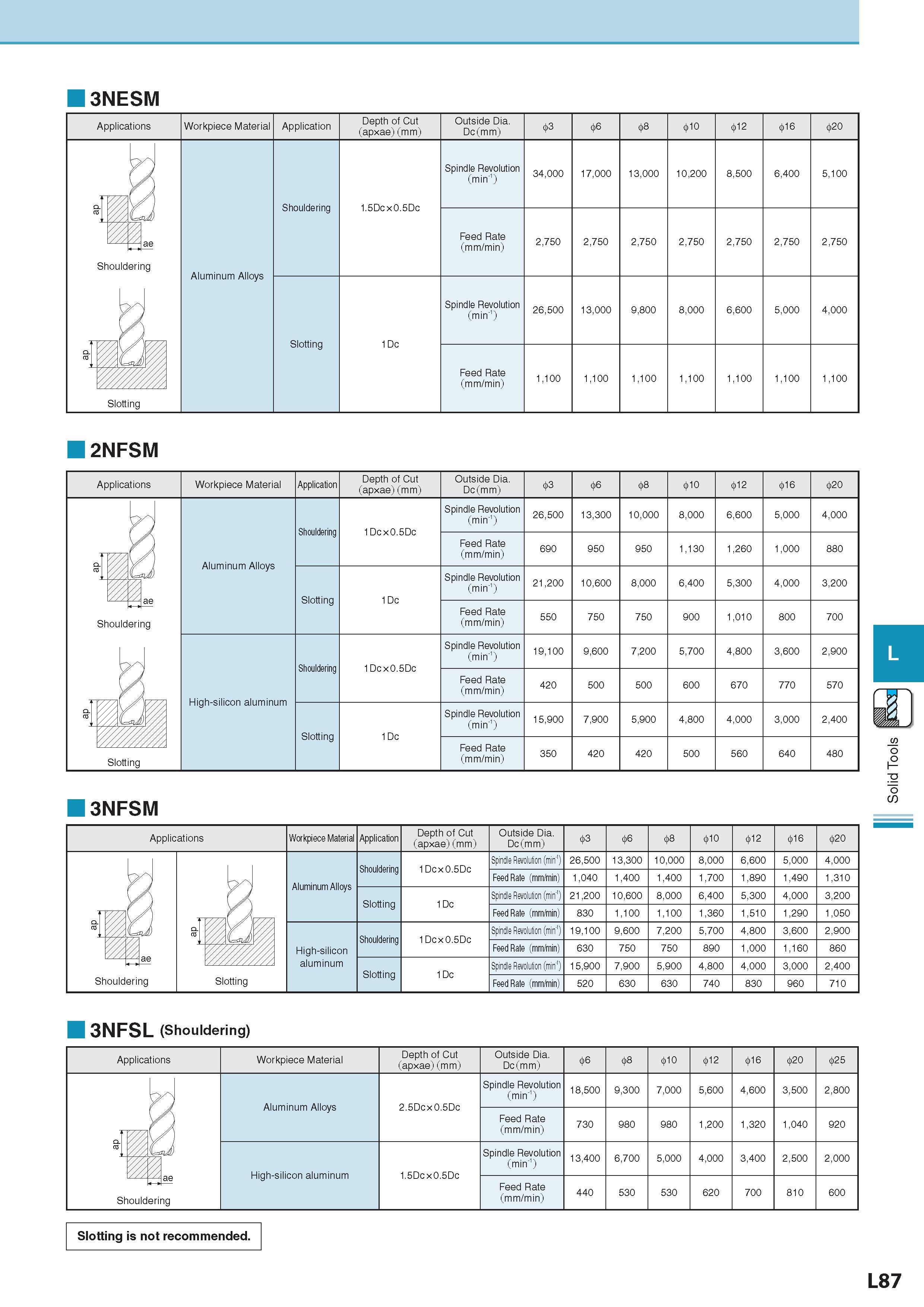

3NESM Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. Dc(mm) 43 46 48 410 412 416 420 CC 8 -S/A houldering Aluminum Alloys Shouldering 1.5Dcx0.5Dc Spindle Revolution (min-1) 34,000 17,000 13,000 10,200 8,500 6,400 5,100 Feed Rate (mm/min) 2,750 2,750 2,750 2,750 2,750 2,750 2,750 N 8lotting 1Dc Spindle Revolution (min-1) 26,500 13,000 9,800 8,000 6,600 5,000 4,000 CC 8l Dtting Feed Rate (mm/min) 1,100 1,100 1,100 1,100 1,100 1,100 1,100 2NFSM Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. D(mm) 43 46 48 410 412 416 420 Aluminum Alloys Shouldering 1Dcx0.5Dc Spindle Revolution (min-1) 26,500 13,300 10,000 8,000 6,600 5,000 4,000 CC v/Ay\ Feed Rate (mm/min) 690 950 950 1,130 1,260 1,000 880 m Slotting 1Dc Spindle Revolution (min-1) 21,200 10,600 8,000 6,400 5,300 4,000 3,200 Shouldering Feed Rate (mm/min) 550 750 750 900 1,010 800 700 High-silicon aluminum Shouldering 1Dcx0.5Dc Spindle Revolution (min-1) 19,100 9,600 7,200 5,700 4,800 3,600 2,900 Feed Rate (mm/min) 420 500 500 600 670 770 570 CC //// tJ Slotting 1Dc Spindle Revolution (min-1) 15,900 7,900 5,900 4,800 4,000 3,000 2,400 Slotting Feed Rate (mm/min) 350 420 420 500 560 640 480 3NFSM Applications Workpiece Material Обрабатываемый материал Application Depth of Cut (apxae) (mm) Outside Dia. D(mm) 43 46 48 410 412 416 420 Aluminum Alloys Shouldering 1Dcx0.5Dc Spindle Revolution (min-1) 26,500 13,300 10,000 8,000 6,600 5,000 4,000 Feed Rate (mm/min) 1,040 1,400 1,400 1,700 1,890 1,490 1,310 Slotting 1Dc Spindle Revolution (min-1) 21,200 10,600 8,000 6,400 5,300 4,000 3,200 CC Feed Rate (mm/min) 830 1,100 1,100 1,360 1,510 1,290 1,050 CC LI'S/ High-silicon aluminum Shouldering 1Dcx0.5Dc Spindle Revolution (min-1) 19,100 9,600 7,200 5,700 4,800 3,600 2,900 Feed Rate (mm/min) 630 750 750 890 1,000 1,160 860 Slotting 1Dc Spindle Revolution (min-1) 15,900 7,900 5,900 4,800 4,000 3,000 2,400 Shouldering Slotting Feed Rate (mm/min) 520 630 630 740 830 960 710 3NFSL (Shouldering) Applications Workpiece Material Обрабатываемый материал Depth of Cut (apxae) (mm) Outside Dia. D(mm) 46 48 410 412 416 420 425 Aluminum Alloys 2.5Dcx0.5Dc Spindle Revolution (min-1) 18,500 9,300 7,000 5,600 4,600 3,500 2,800 CC - Feed Rate (mm/min) 730 980 980 1,200 1,320 1,040 920 High-silicon aluminum 1.5Dcx0.5Dc Spindle Revolution (min-1) 13,400 6,700 5,000 4,000 3,400 2,500 2,000 S // hould ae ering Feed Rate (mm/min) 440 530 530 620 700 810 600 Slotting is not recommended. L87 Solid Tools
