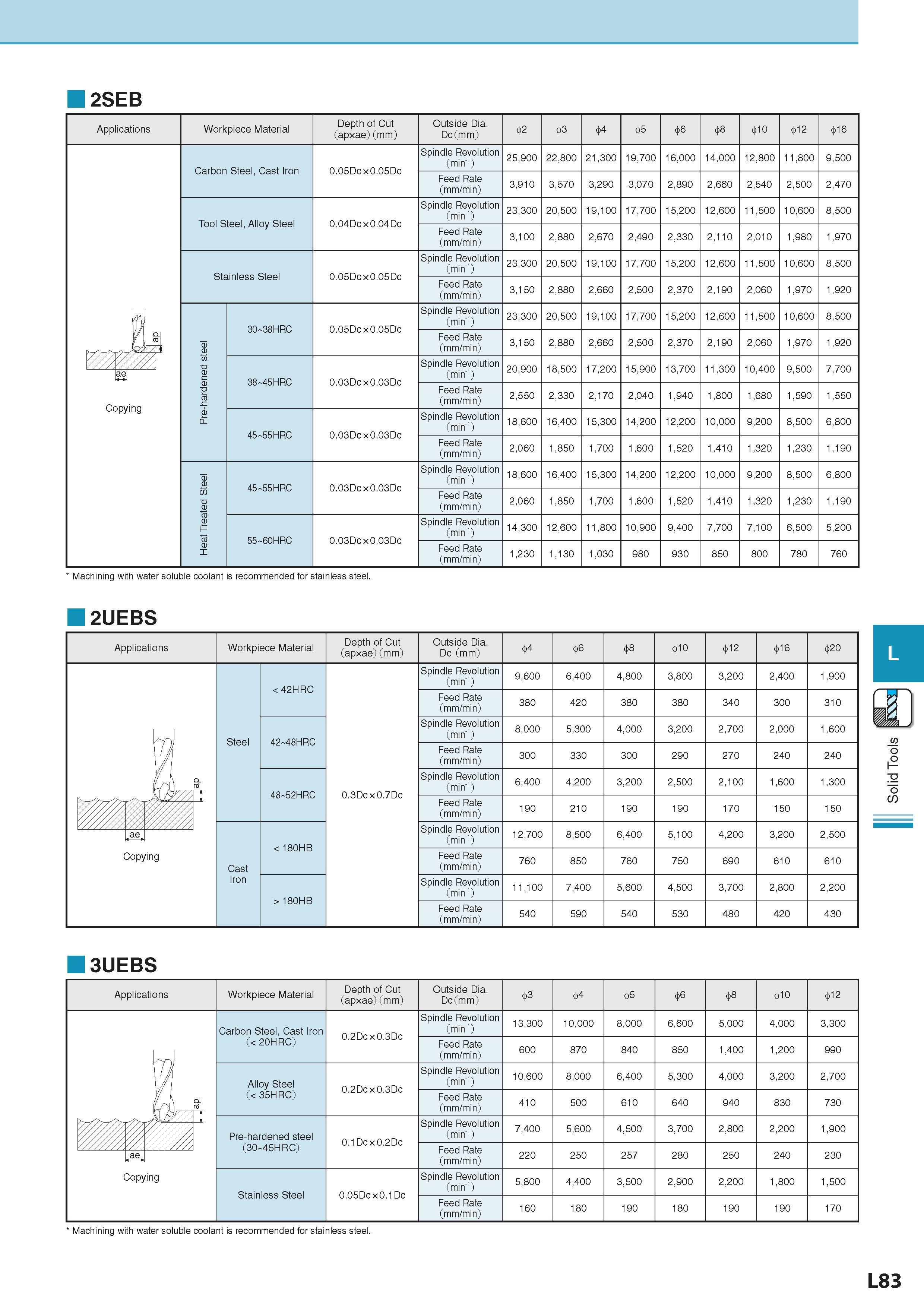

2SEB Applications Workpiece Material Обрабатываемый материал Depth of Cut (apxae) (mm) Outside Dia. D((mm) 42 43 44 45 46 48 410 412 416 \ ¥ L <:o Carbon Steel, Cast Iron 0.05Dcx0.05Dc Spindle Revolution (min-1) 25,900 22,800 21,300 19,700 16,000 14,000 12,800 11,800 9,500 Feed Rate (mm/min) 3,910 3,570 3,290 3,070 2,890 2,660 2,540 2,500 2,470 Tool Steel, Alloy Steel 0.04Dcx0.04Dc Spindle Revolution (min-1) 23,300 20,500 19,100 17,700 15,200 12,600 11,500 10,600 8,500 Feed Rate (mm/min) 3,100 2,880 2,670 2,490 2,330 2,110 2,010 1,980 1,970 Stainless Steel 0.05Dcx0.05Dc Spindle Revolution (min-1) 23,300 20,500 19,100 17,700 15,200 12,600 11,500 10,600 8,500 Feed Rate (mm/min) 3,150 2,880 2,660 2,500 2,370 2,190 2,060 1,970 1,920 Pre-hardened steel 30 38HRC 0.05Dcx0.05Dc Spindle Revolution (min-1) 23,300 20,500 19,100 17,700 15,200 12,600 11,500 10,600 8,500 Feed Rate (mm/min) 3,150 2,880 2,660 2,500 2,370 2,190 2,060 1,970 1,920 y/ //////,I 38 45HRC 0.03Dcx0.03Dc Spindle Revolution (min-1) 20,900 18,500 17,200 15,900 13,700 11,300 10,400 9,500 7,700 ae Copying Feed Rate (mm/min) 2,550 2,330 2,170 2,040 1,940 1,800 1,680 1,590 1,550 45 55HRC 0.03Dcx0.03Dc Spindle Revolution (min-1) 18,600 16,400 15,300 14,200 12,200 10,000 9,200 8,500 6,800 Feed Rate (mm/min) 2,060 1,850 1,700 1,600 1,520 1,410 1,320 1,230 1,190 Heat Treated Steel 45 55HRC 0.03Dc x 0.03Dc Spindle Revolution (min-1) 18,600 16,400 15,300 14,200 12,200 10,000 9,200 8,500 6,800 Feed Rate (mm/min) 2,060 1,850 1,700 1,600 1,520 1,410 1,320 1,230 1,190 55 60HRC 0.03Dc x 0.03Dc Spindle Revolution (min-1) 14,300 12,600 11,800 10,900 9,400 7,700 7,100 6,500 5,200 Feed Rate (mm/min) 1,230 1,130 1,030 980 930 850 800 780 760 Machining with water soluble coolant is recommended for stainless steel. 2UEBS Applications Workpiece Material Обрабатываемый материал Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 44 46 48 410 412 416 420 Steel < 42HRC 0.3Dc x 0.7Dc Spindle Revolution (min-1) 9,600 6,400 4,800 3,800 3,200 2,400 1,900 Feed Rate (mm/min) 380 420 380 380 340 300 310 42 48HRC Spindle Revolution (min-1) 8,000 5,300 4,000 3,200 2,700 2,000 1,600 Feed Rate (mm/min) 300 330 300 290 270 240 240 p 48 52HRC Spindle Revolution (min-1) 6,400 4,200 3,200 2,500 2,100 1,600 1,300 Feed Rate (mm/min) 190 210 190 190 170 150 150 Cast Iron < 180HB Spindle Revolution (min-1) 12,700 8,500 6,400 5,100 4,200 3,200 2,500 Copying Feed Rate (mm/min) 760 850 760 750 690 610 610 > 180HB Spindle Revolution (min-1) 11,100 7,400 5,600 4,500 3,700 2,800 2,200 Feed Rate (mm/min) 540 590 540 530 480 420 430 3UEBS Applications Workpiece Material Обрабатываемый материал Depth of Cut (apxae) (mm) Outside Dia. Dc(mm) 43 44 45 46 48 410 412 Carbon Steel, Cast Iron (< 20HRC) 0.2Dcx0.3Dc Spindle Revolution (min-1) 13,300 10,000 8,000 6,600 5,000 4,000 3,300 Feed Rate (mm/min) 600 870 840 850 1,400 1,200 990 Alloy Steel (< 35HRC) 0.2Dcx0.3Dc Spindle Revolution (min-1) 10,600 8,000 6,400 5,300 4,000 3,200 2,700 p Feed Rate (mm/min) 410 500 610 640 940 830 730 y Pre-hardened steel (30 45HRC) 0.1Dcx0.2Dc Spindle Revolution (min-1) 7,400 5,600 4,500 3,700 2,800 2,200 1,900 Feed Rate (mm/min) 220 250 257 280 250 240 230 Copying Stainless Steel 0.05Dcx0.1Dc Spindle Revolution (min-1) 5,800 4,400 3,500 2,900 2,200 1,800 1,500 Feed Rate (mm/min) 160 180 190 180 190 190 170 Machining with water soluble coolant is recommended for stainless steel. L83 Solid Tools
