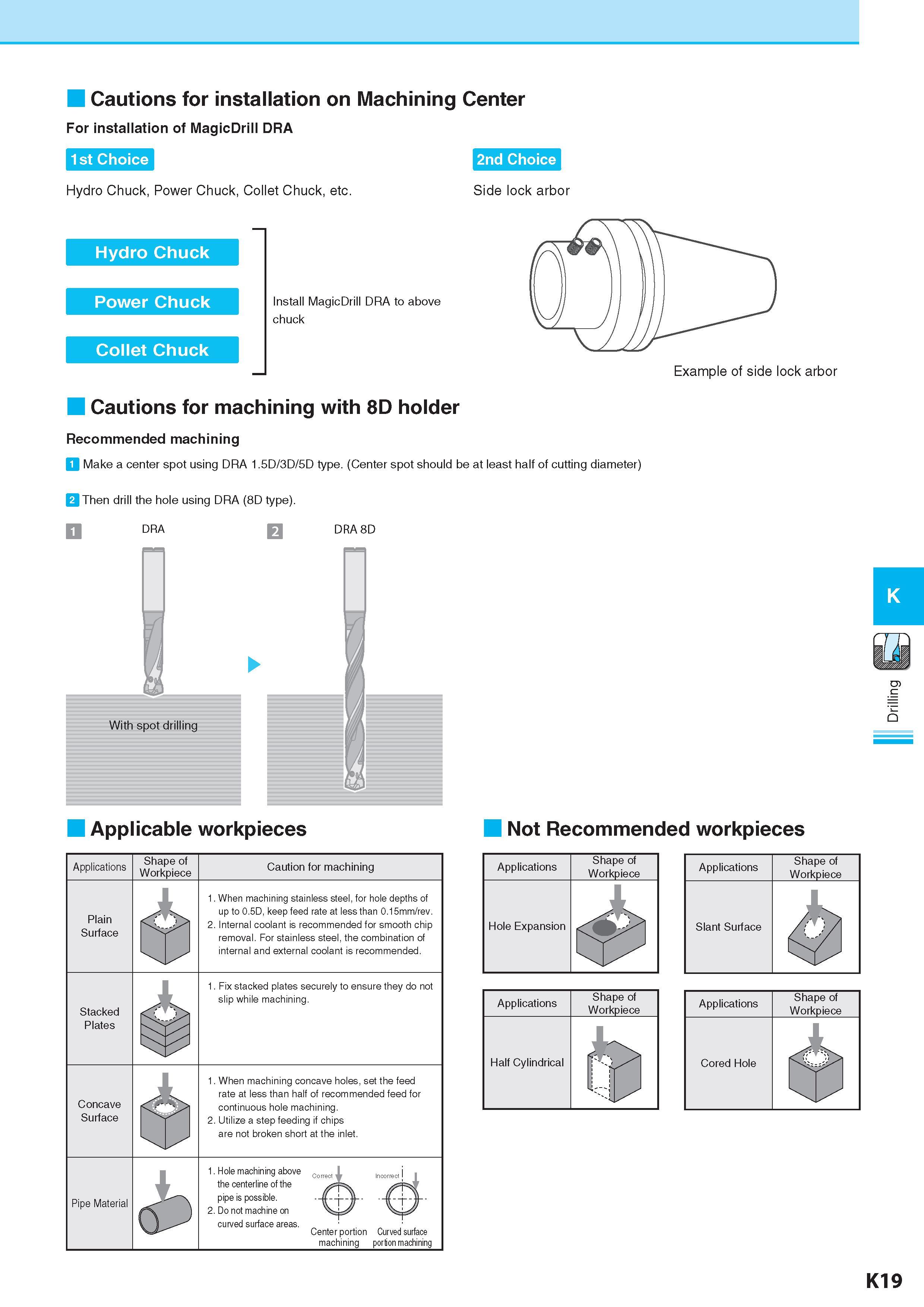

Cautions for installation on Machining Center For installation of MagicDrill DRA 1st Choice Hydro Chuck, Power Chuck, Collet Chuck, etc. 2nd Choice Side lock arbor Hydro Chuck Power Chuck Collet Chuck Install MagicDrill DRA to above chuck Example of side lock arbor Cautions for machining with 8D holder Recommended machining 1 Make a center spot using DRA 1.5D/3D/5D type. (Center spot should be at least half of cutting diameter) 2 Then drill the hole using DRA (8D type). j DRA DRA 8D Applicable workpieces Applications Plain Surface Stacked Plates Concave Surface Pipe Material Shape of Workpiece Caution for machining 1. When machining stainless steel, for hole depths of up to 0.5D, keep feed rate at less than 0.15mm/rev. 2. Internal coolant is recommended for smooth chip removal. For stainless steel, the combination of internal and external coolant is recommended. 1. Fix stacked plates securely to ensure they do not slip while machining. 1. When machining concave holes, set the feed rate at less than half of recommended feed for continuous hole machining. 2. Utilize a step feeding if chips are not broken short at the inlet. 1. Hole machining above the centerline of the pipe is possible. 2. Do not machine on curved surface areas. Center portion Curved surface machining portion machining Not Recommended workpieces Applications Shape of Workpiece Hole Expansion K19 Drilling
