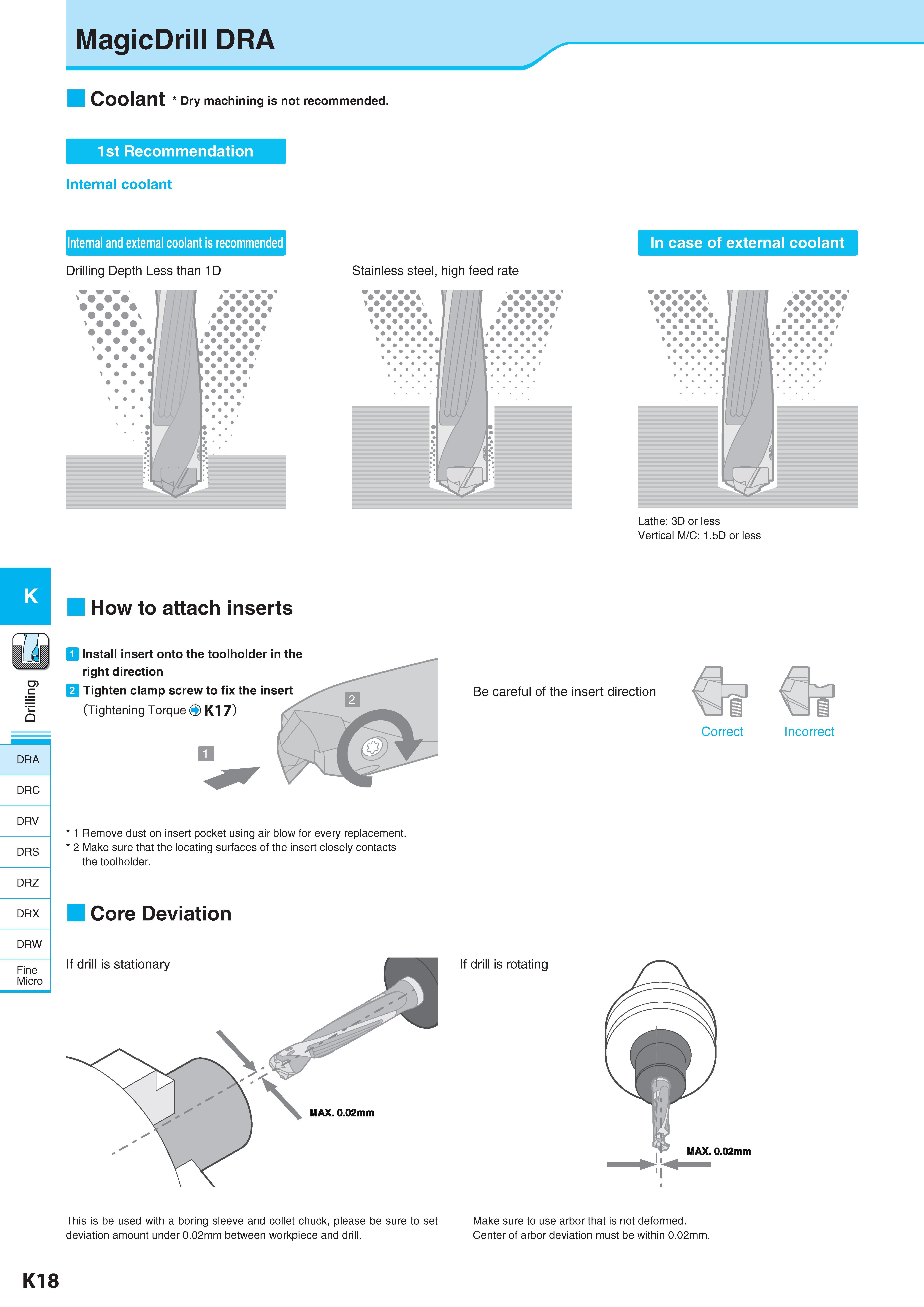

K DRA DRC DRV DRS DRZ DRX DRW Fine Micro MagicDrill DRA Coolant Dry machining is not recommended. 1st Recommendation Internal coolant Internal and external coolant is recommended Drilling Depth Less than 1D In case of external coolant Stainless steel, high feed rate Lathe: 3D or less Vertical M/C: 1.5D or less How to attach inserts 1 Remove dust on insert pocket using air blow for every replacement. 2 Make sure that the locating surfaces of the insert closely contacts the toolholder. Core Deviation If drill is rotating MAX. 0.02mm This is be used with a boring sleeve and collet chuck, please be sure to set deviation amount under 0.02mm between workpiece and drill. Make sure to use arbor that is not deformed. Center of arbor deviation must be within 0.02mm. K18
