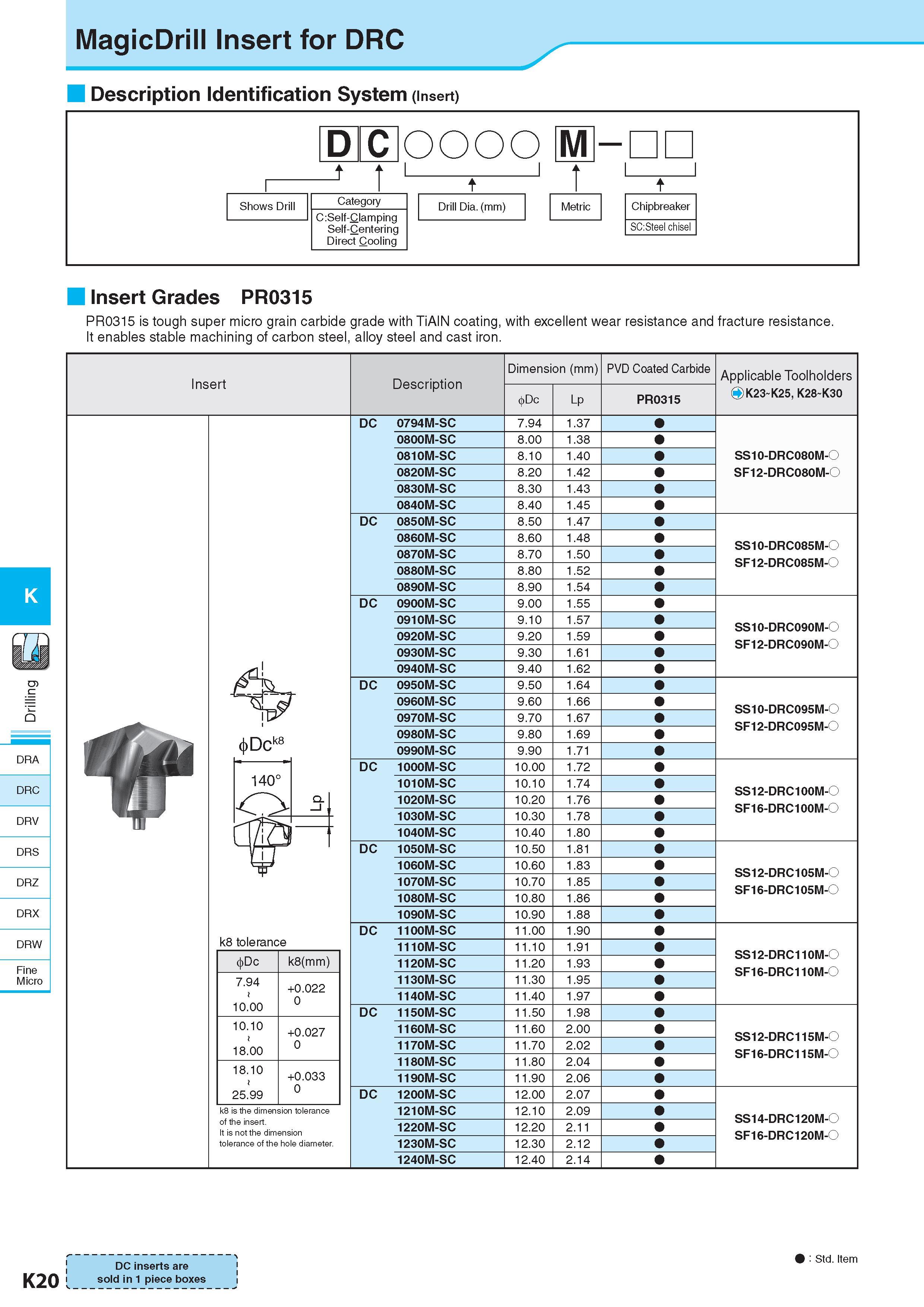

MagicDrill Insert for DRC Description Обозначение Identification System (Insert) D C OOOO M- t T Shows Drill Category Drill Dia. (mm) Metric Chipbreaker Стружколом сменной пластины C:Self-Clamping Self-Centering SC:Steel chisel Direct Cooling Insert Grades PR0315 PR0315 is tough super micro grain carbide grade with TiAIN coating, with excellent wear resistance and fracture resistance. It enables stable machining of carbon steel, alloy steel and cast iron. Insert Description Обозначение Dimension (mm) Размеры в мм Dc Lp PVD Coated Carbide PR0315 Applicable Toolholders OK23 K25, K28 K30 DRA DRC DRV DRS DRZ DRX DRW Fine Micro DC 0794M-SC k8 tolerance 0Dc k8(mm) 7.94 t 10.00 +0.022 0 10.10 t 18.00 +0.027 0 18.10 t 25.99 +0.033 0 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 0800M-SC 0810M-SC 0820M-SC 0830M-SC 0840M-SC DC 0850M-SC 0860M-SC 0870M-SC 0880M-SC 0890M-SC DC 0900M-SC 0910M-SC 0920M-SC 0930M-SC 0940M-SC DC 0950M-SC 0960M-SC 0970M-SC 0980M-SC 0990M-SC DC 1000M-SC 1010M-SC 1020M-SC 1030M-SC 1040M-SC DC 1050M-SC 1060M-SC 1070M-SC 1080M-SC 1090M-SC DC 1100M-SC 1110M-SC 1120M-SC 1130M-SC 1140M-SC DC 1150M-SC 1160M-SC 1170M-SC 1180M-SC 1190M-SC DC 1200M-SC 1210M-SC 1220M-SC 1230M-SC 1240M-SC 7.94 1.37 8.00 1.38 8.10 1.40 8.20 1.42 8.30 1.43 8.40 1.45 8.50 1.47 8.60 1.48 8.70 1.50 8.80 1.52 8.90 1.54 9.00 1.55 9.10 1.57 9.20 1.59 9.30 1.61 9.40 1.62 9.50 1.64 9.60 1.66 9.70 1.67 9.80 1.69 9.90 1.71 10.00 1.72 10.10 1.74 10.20 1.76 10.30 1.78 10.40 1.80 10.50 1.81 10.60 1.83 10.70 1.85 10.80 1.86 10.90 1.88 11.00 1.90 11.10 1.91 11.20 1.93 11.30 1.95 11.40 1.97 11.50 1.98 11.60 2.00 11.70 2.02 11.80 2.04 11.90 2.06 12.00 2.07 12.10 2.09 12.20 2.11 12.30 2.12 12.40 2.14 SS10-DRC080M-O SF12-DRC080M-O SS10-DRC085M-O SF12-DRC085M-O SS10-DRC090M-O SF12-DRC090M-O SS10-DRC095M-O SF12-DRC095M-O SS12-DRC100M-O SF16-DRC100M-O SS12-DRC105M-O SF16-DRC105M-O SS12-DRC110M-O SF16-DRC110M-O SS12-DRC115M-O SF16-DRC115M-O SS14-DRC120M-O SF16-DRC120M-O K20 DC inserts are sold in 1 piece boxes 9 : Std. Item
