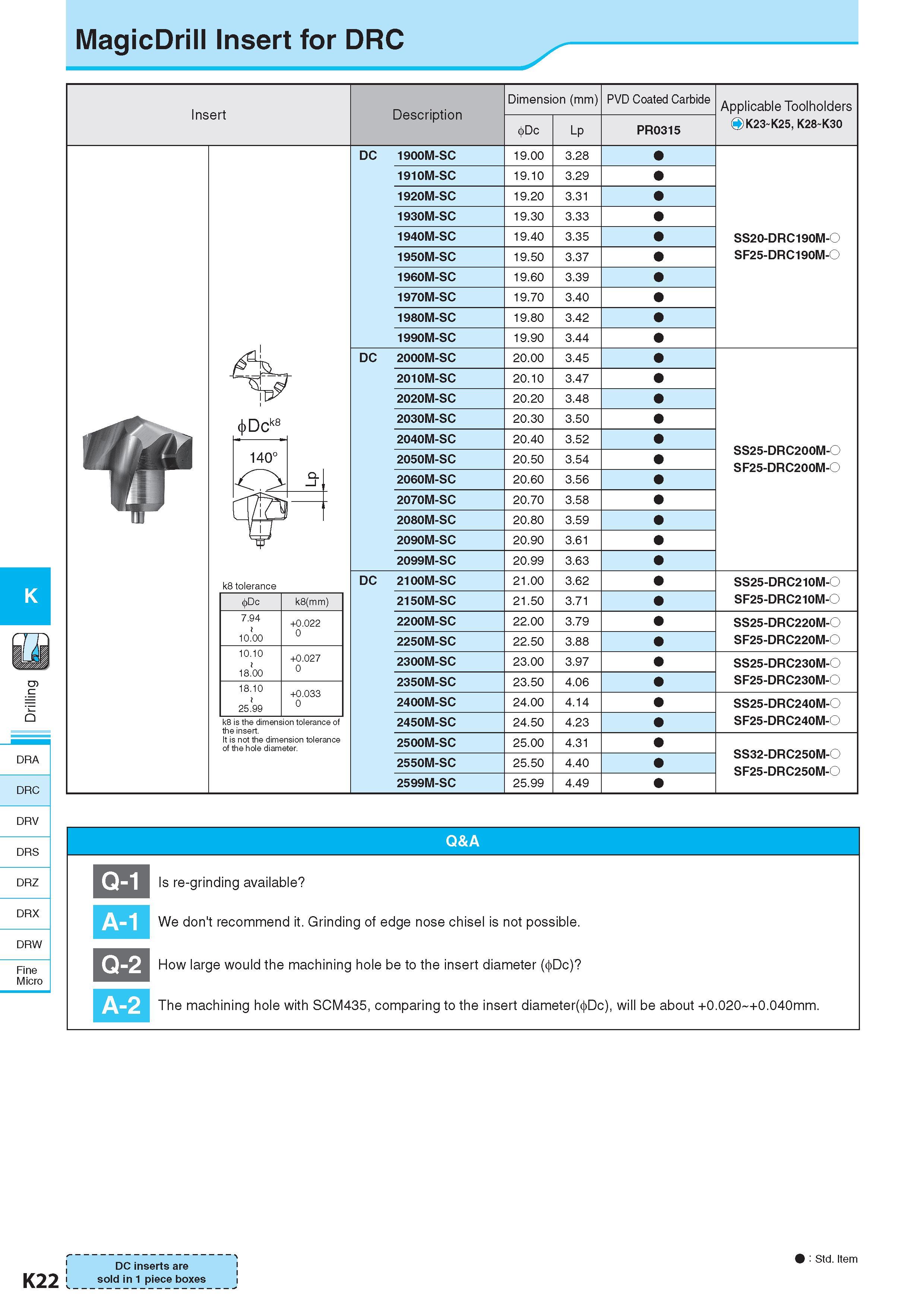

MagicDrill Insert for DRC Insert Description Обозначение Dimension (mm) Размеры в мм Dc Lp PVD Coated Carbide PR0315 Applicable Toolholders OK23 K25, K28 K30 DRA DRC DC 1900M-SC 19.00 3.28 1910M-SC 19.10 3.29 1920M-SC 19.20 3.31 1930M-SC 19.30 3.33 1940M-SC 19.40 3.35 1950M-SC 19.50 3.37 1960M-SC 19.60 3.39 1970M-SC 19.70 3.40 1980M-SC 19.80 3.42 1990M-SC 19.90 3.44 DC 2000M-SC 20.00 3.45 2010M-SC 20.10 3.47 2020M-SC 20.20 3.48 Dc k8 2030M-SC 20.30 3.50 140° 2040M-SC 20.40 3.52 2050M-SC 20.50 3.54 2060M-SC 20.60 3.56 2070M-SC 20.70 3.58 2080M-SC 20.80 3.59 2090M-SC 20.90 3.61 2099M-SC 20.99 3.63 k8 tolerance DC 2100M-SC 21.00 3.62 Dc k8(mm) 7.94 i 10.00 +0.022 0 10.10 i 18.00 +0.027 0 18.10 i 25.99 +0.033 0 2150M-SC 21.50 3.71 2200M-SC 22.00 3.79 2250M-SC 22.50 3.88 2300M-SC 23.00 3.97 2350M-SC 23.50 4.06 2400M-SC 24.00 4.14 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 2450M-SC 24.50 4.23 2500M-SC 25.00 4.31 2550M-SC 25.50 4.40 2599M-SC 25.99 4.49 SS20-DRC190M-O SF25-DRC190M-O SS25-DRC200M-O SF25-DRC200M-O SS25-DRC210M-O SF25-DRC210M-O SS25-DRC220M-O SF25-DRC220M-O SS25-DRC230M-O SF25-DRC230M-O SS25-DRC240M-O SF25-DRC240M-O SS32-DRC250M-O SF25-DRC250M-O DRV DRS DRZ DRX DRW Fine Micro Q-1 A-1 Q-2 Is re-grinding available We don't recommend it. Grinding of edge nose chisel is not possible. How large would the machining hole be to the insert diameter ( Dc) A-2 The machining hole with SCM435, comparing to the insert diameter( Dc), will be about +0.020 +0.040mm. Q&A r . . ' : Std. Item Стандартная позиция DC inserts are 1 K22 L sold in 1 piece boxes i
