578 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K21

Каталог KYOCERA 2017 Инструмент режущий Стр. K21 0578 Lab2u

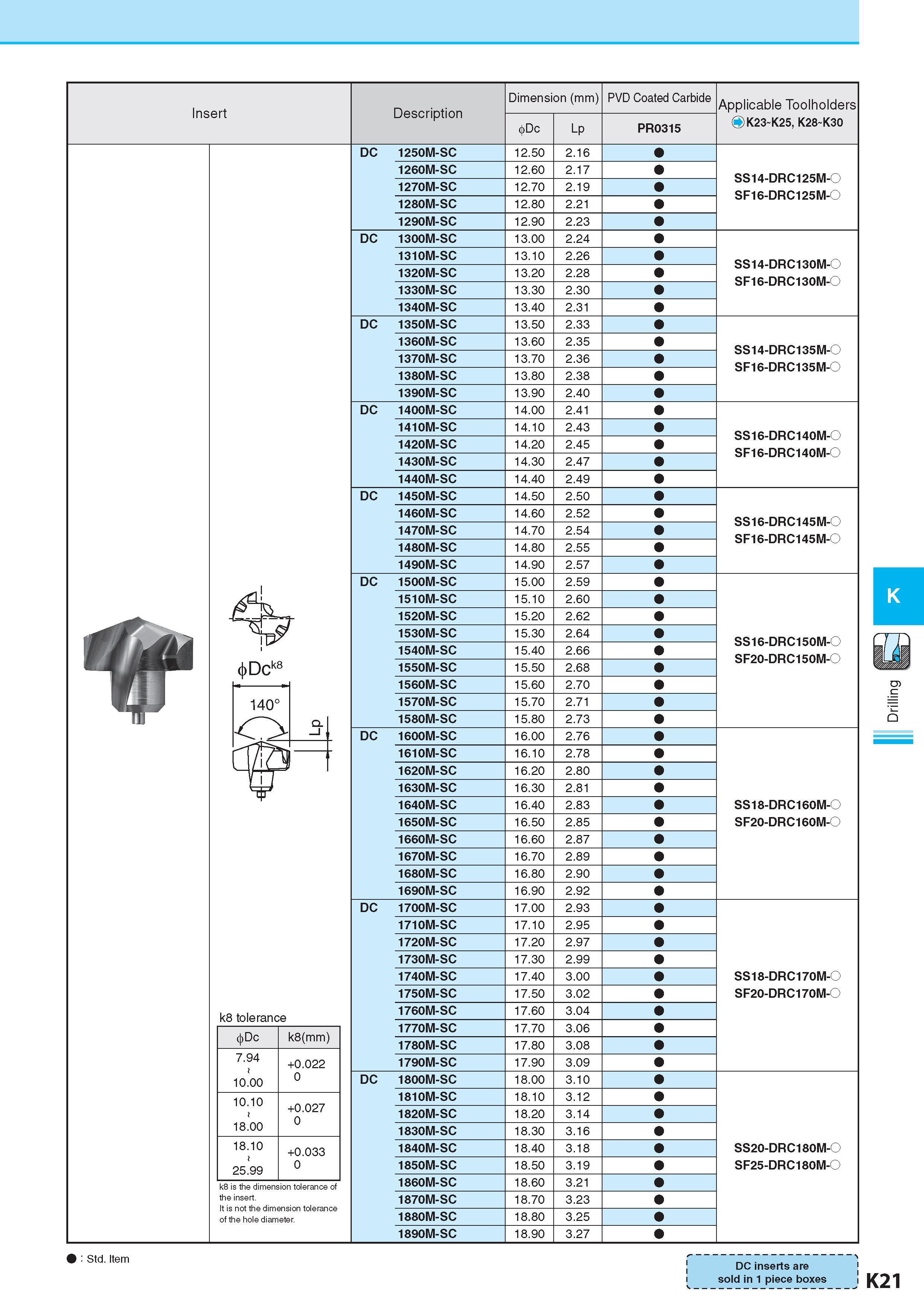

Insert Description Обозначение Dimension (mm) Размеры в мм 4>Dc Lp PVD Coated Carbide PR0315 Applicable Toolholders O K23 K25, K28 K30 DC 1250M-SC k8 tolerance Dc k8(mm) 7.94 t 10.00 +0.022 0 10.10 t 18.00 +0.027 0 18.10 t 25.99 +0.033 0 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 1260M-SC 1270M-SC 1280M-SC 1290M-SC DC 1300M-SC 1310M-SC 1320M-SC 1330M-SC 1340M-SC DC 1350M-SC 1360M-SC 1370M-SC 1380M-SC 1390M-SC DC 1400M-SC 1410M-SC 1420M-SC 1430M-SC 1440M-SC DC 1450M-SC 1460M-SC 1470M-SC 1480M-SC 1490M-SC DC 1500M-SC 1510M-SC 1520M-SC 1530M-SC 1540M-SC 1550M-SC 1560M-SC 1570M-SC 1580M-SC DC 1600M-SC 1610M-SC 1620M-SC 1630M-SC 1640M-SC 1650M-SC 1660M-SC 1670M-SC 1680M-SC 1690M-SC DC 1700M-SC 1710M-SC 1720M-SC 1730M-SC 1740M-SC 1750M-SC 1760M-SC 1770M-SC 1780M-SC 1790M-SC DC 1800M-SC 1810M-SC 1820M-SC 1830M-SC 1840M-SC 1850M-SC 1860M-SC 1870M-SC 1880M-SC 1890M-SC 12.50 2.16 12.60 2.17 12.70 2.19 12.80 2.21 12.90 2.23 13.00 2.24 13.10 2.26 13.20 2.28 13.30 2.30 13.40 2.31 13.50 2.33 13.60 2.35 13.70 2.36 13.80 2.38 13.90 2.40 14.00 2.41 14.10 2.43 14.20 2.45 14.30 2.47 14.40 2.49 14.50 2.50 14.60 2.52 14.70 2.54 14.80 2.55 14.90 2.57 15.00 2.59 15.10 2.60 15.20 2.62 15.30 2.64 15.40 2.66 15.50 2.68 15.60 2.70 15.70 2.71 15.80 2.73 16.00 2.76 16.10 2.78 16.20 2.80 16.30 2.81 16.40 2.83 16.50 2.85 16.60 2.87 16.70 2.89 16.80 2.90 16.90 2.92 17.00 2.93 17.10 2.95 17.20 2.97 17.30 2.99 17.40 3.00 17.50 3.02 17.60 3.04 17.70 3.06 17.80 3.08 17.90 3.09 18.00 3.10 18.10 3.12 18.20 3.14 18.30 3.16 18.40 3.18 18.50 3.19 18.60 3.21 18.70 3.23 18.80 3.25 18.90 3.27 SS14-DRC125M-O SF16-DRC125M-O SS14-DRC130M-O SF16-DRC130M-O SS14-DRC135M-O SF16-DRC135M-O SS16-DRC140M-O SF16-DRC140M-O SS16-DRC145M-O SF16-DRC145M-O SS16-DRC150M-O SF20-DRC150M-O SS18-DRC160M-O SF20-DRC160M-O SS18-DRC170M-O SF20-DRC170M-O SS20-DRC180M-O SF25-DRC180M-O 9 : Std. Item Стандартная позиция DC inserts are sold in 1 piece boxes K K21 Drilling
