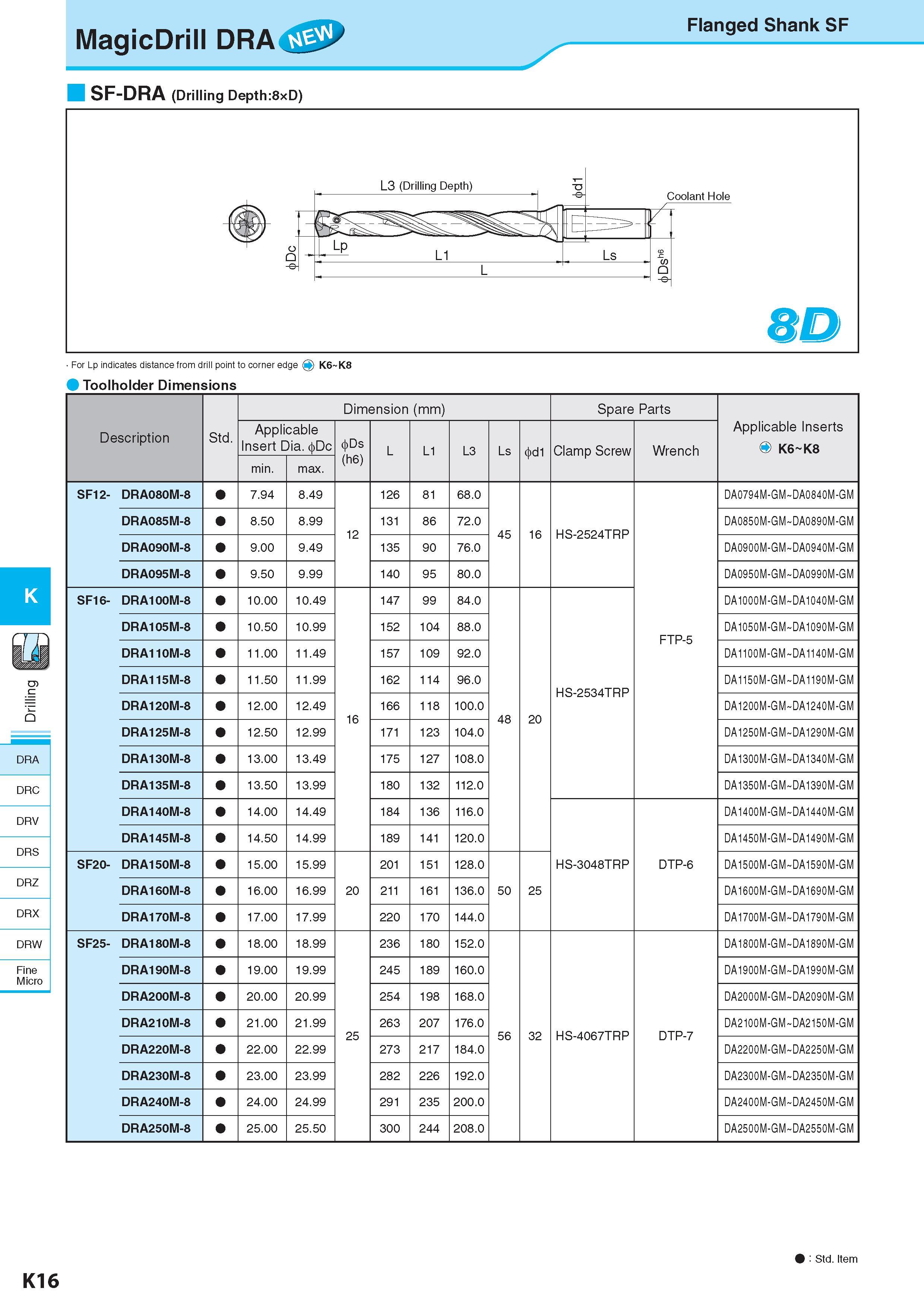

MagicDrill DRA J SF-DRA (Drilling Depth:8xD) Flanged Shank SF WD For Lp indicates distance from drill point to corner edge 0 K6 K8 Toolholder Dimensions K DRA DRC DRV DRS DRZ DRX DRW Fine Micro Dimension (mm) Размеры в мм Spare Parts Description Обозначение Std. Applicable Insert Dia. Dc Ds L L1 L3 Ls fd1 Clamp Screw Wrench Applicable Inserts O K6 K8 min. max. (h6) SF12- DRA080M-8 7.94 8.49 126 81 68.0 DA0794M-GM DA0840M-GM DRA085M-8 8.50 8.99 12 131 86 72.0 45 16 HS-2524TRP DA0850M-GM DA0890M-GM DRA090M-8 9.00 9.49 135 90 76.0 DA0900M-GM DA0940M-GM DRA095M-8 9.50 9.99 140 95 80.0 DA0950M-GM DA0990M-GM SF16- DRA100M-8 10.00 10.49 147 99 84.0 DA1000M-GM DA1040M-GM DRA105M-8 10.50 10.99 152 104 88.0 FTP-5 DA1050M-GM DA1090M-GM DRA110M-8 11.00 11.49 157 109 92.0 DA1100M-GM DA1140M-GM DRA115M-8 11.50 11.99 162 114 96.0 HS-2534TRP DA1150M-GM DA1190M-GM DRA120M-8 12.00 12.49 16 166 118 100.0 48 20 DA1200M-GM DA1240M-GM DRA125M-8 12.50 12.99 171 123 104.0 DA1250M-GM DA1290M-GM DRA130M-8 13.00 13.49 175 127 108.0 DA1300M-GM DA1340M-GM DRA135M-8 13.50 13.99 180 132 112.0 DA1350M-GM DA1390M-GM DRA140M-8 14.00 14.49 184 136 116.0 DA1400M-GM DA1440M-GM DRA145M-8 14.50 14.99 189 141 120.0 DA1450M-GM DA1490M-GM SF20- DRA150M-8 15.00 15.99 201 151 128.0 HS-3048TRP DTP-6 DA1500M-GM DA1590M-GM DRA160M-8 16.00 16.99 20 211 161 136.0 50 25 DA1600M-GM DA1690M-GM DRA170M-8 17.00 17.99 220 170 144.0 DA1700M-GM DA1790M-GM SF25- DRA180M-8 18.00 18.99 236 180 152.0 DA1800M-GM DA1890M-GM DRA190M-8 19.00 19.99 245 189 160.0 DA1900M-GM DA1990M-GM DRA200M-8 20.00 20.99 254 198 168.0 DA2000M-GM DA2090M-GM DRA210M-8 21.00 21.99 25 263 207 176.0 56 32 HS-4067TRP DTP-7 DA2100M-GM DA2150M-GM DRA220M-8 22.00 22.99 273 217 184.0 DA2200M-GM DA2250M-GM DRA230M-8 23.00 23.99 282 226 192.0 DA2300M-GM DA2350M-GM DRA240M-8 24.00 24.99 291 235 200.0 DA2400M-GM DA2450M-GM DRA250M-8 25.00 25.50 300 244 208.0 DA2500M-GM DA2550M-GM K16 9 : Std. Item
