570 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K13

Каталог KYOCERA 2017 Инструмент режущий Стр. K13 0570 Lab2u

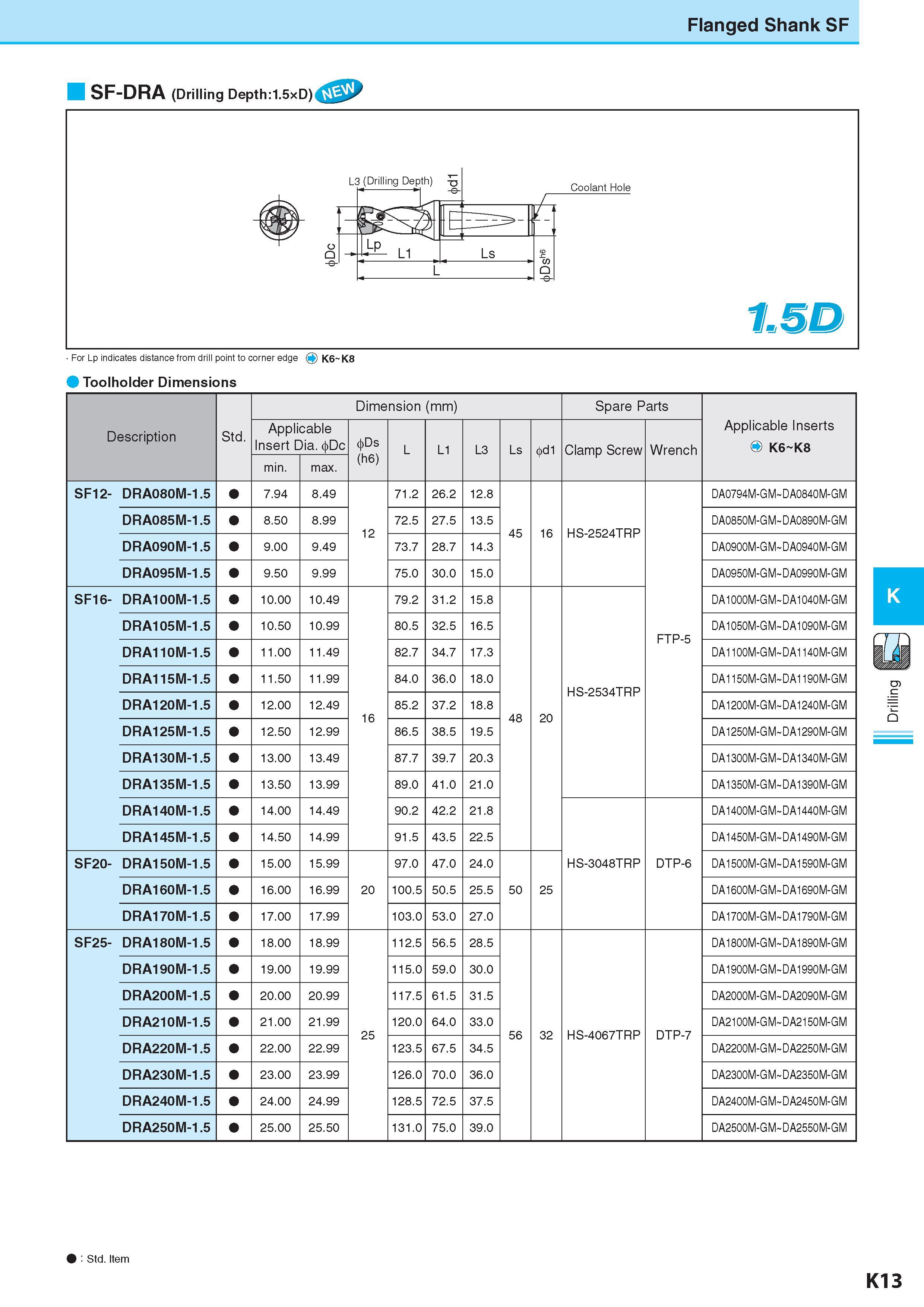

Flanged Shank SF SF-DRA (Drilling Depth:1.5xD) For Lp indicates distance from drill point to corner edge 0 K6 K8 Toolholder Dimensions Dimension (mm) Размеры в мм Spare Parts Description Обозначение Std. Applicable Insert Dia. Dc Ds L L1 L3 Ls d1 Clamp Screw Wrench Applicable Inserts O K6 K8 min. max. (h6) SF12- DRA080M-1.5 7.94 8.49 71.2 26.2 12.8 DA0794M-GM DA0840M-GM DRA085M-1.5 8.50 8.99 12 72.5 27.5 13.5 45 16 HS-2524TRP DA0850M-GM DA0890M-GM DRA090M-1.5 9.00 9.49 73.7 28.7 14.3 DA0900M-GM DA0940M-GM DRA095M-1.5 9.50 9.99 75.0 30.0 15.0 DA0950M-GM DA0990M-GM SF16- DRA100M-1.5 10.00 10.49 79.2 31.2 15.8 DA1000M-GM DA1040M-GM DRA105M-1.5 10.50 10.99 80.5 32.5 16.5 FTP-5 DA1050M-GM DA1090M-GM DRA110M-1.5 11.00 11.49 82.7 34.7 17.3 DA1100M-GM DA1140M-GM DRA115M-1.5 11.50 11.99 84.0 36.0 18.0 HS-2534TRP DA1150M-GM DA1190M-GM DRA120M-1.5 12.00 12.49 16 85.2 37.2 18.8 48 20 DA1200M-GM DA1240M-GM DRA125M-1.5 12.50 12.99 86.5 38.5 19.5 DA1250M-GM DA1290M-GM DRA130M-1.5 13.00 13.49 87.7 39.7 20.3 DA1300M-GM DA1340M-GM DRA135M-1.5 13.50 13.99 89.0 41.0 21.0 DA1350M-GM DA1390M-GM DRA140M-1.5 14.00 14.49 90.2 42.2 21.8 DA1400M-GM DA1440M-GM DRA145M-1.5 14.50 14.99 91.5 43.5 22.5 DA1450M-GM DA1490M-GM SF20- DRA150M-1.5 15.00 15.99 97.0 47.0 24.0 HS-3048TRP DTP-6 DA1500M-GM DA1590M-GM DRA160M-1.5 16.00 16.99 20 100.5 50.5 25.5 50 25 DA1600M-GM DA1690M-GM DRA170M-1.5 17.00 17.99 103.0 53.0 27.0 DA1700M-GM DA1790M-GM SF25- DRA180M-1.5 18.00 18.99 112.5 56.5 28.5 DA1800M-GM DA1890M-GM DRA190M-1.5 19.00 19.99 115.0 59.0 30.0 DA1900M-GM DA1990M-GM DRA200M-1.5 20.00 20.99 117.5 61.5 31.5 DA2000M-GM DA2090M-GM DRA210M-1.5 21.00 21.99 25 120.0 64.0 33.0 56 32 HS-4067TRP DTP-7 DA2100M-GM DA2150M-GM DRA220M-1.5 22.00 22.99 123.5 67.5 34.5 DA2200M-GM DA2250M-GM DRA230M-1.5 23.00 23.99 126.0 70.0 36.0 DA2300M-GM DA2350M-GM DRA240M-1.5 24.00 24.99 128.5 72.5 37.5 DA2400M-GM DA2450M-GM DRA250M-1.5 25.00 25.50 131.0 75.0 39.0 DA2500M-GM DA2550M-GM 9 : Std. Item Стандартная позиция K13 Drilling
