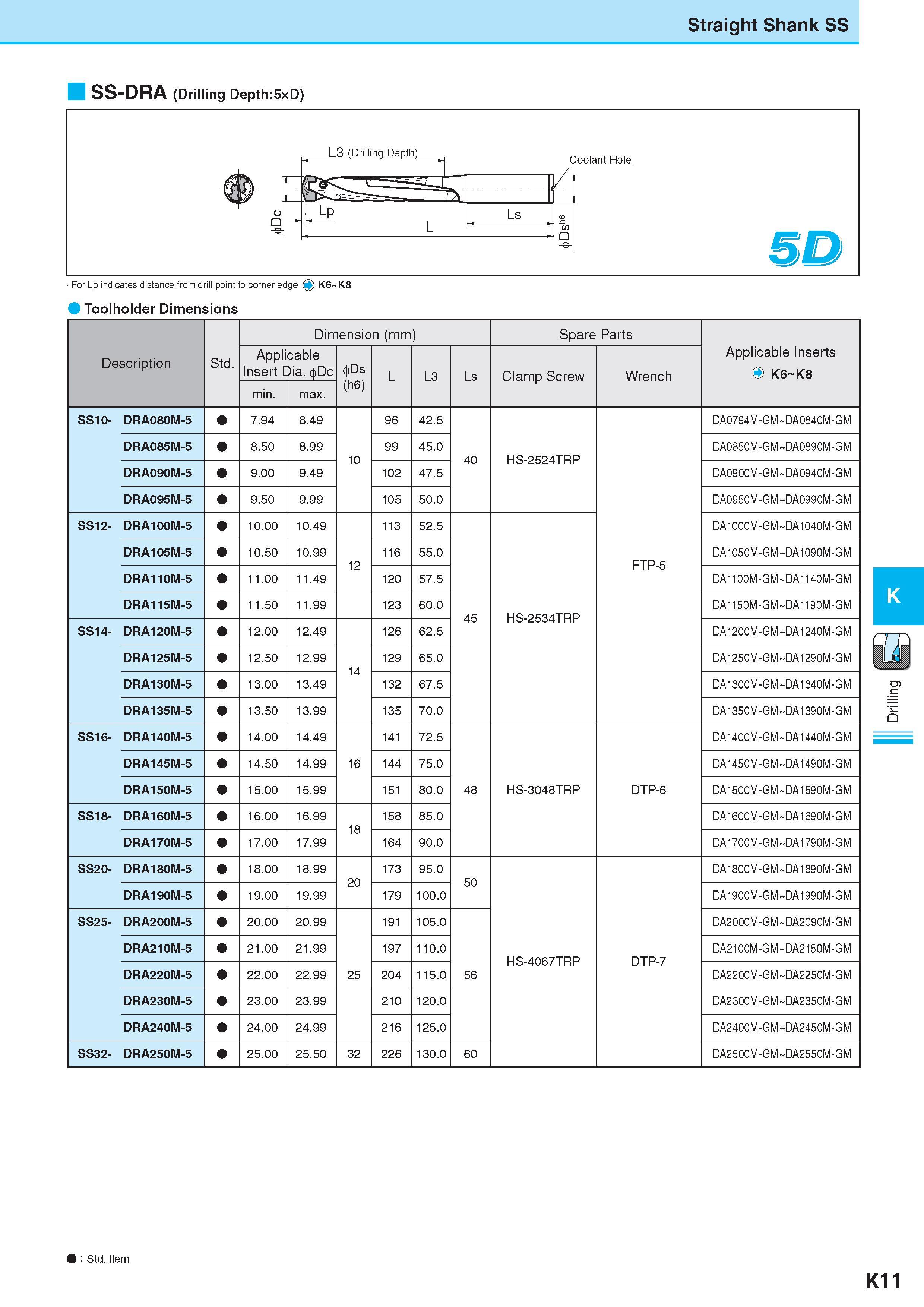

Straight Shank SS SS-DRA (Drilling Depth:5xD) L3 (Drilling Depth) Coolant Hole 1 Lp L Ls CD s Q 5D For Lp indicates distance from drill point to corner edge 0 K6 K8 Toolholder Dimensions Dimension (mm) Размеры в мм Spare Parts Description Обозначение Std. Applicable Insert Dia. 0Dc 0Ds L L3 Ls Clamp Screw Wrench Applicable Inserts O K6 K8 min. max. (h6) SS10- DRA080M-5 7.94 8.49 96 42.5 DA0794M-GM DA0840M-GM DRA085M-5 8.50 8.99 10 99 45.0 40 HS-2524TRP DA0850M-GM DA0890M-GM DRA090M-5 9.00 9.49 102 47.5 DA0900M-GM DA0940M-GM DRA095M-5 9.50 9.99 105 50.0 DA0950M-GM DA0990M-GM SS12- DRA100M-5 10.00 10.49 113 52.5 DA1000M-GM DA1040M-GM DRA105M-5 10.50 10.99 12 116 55.0 FTP-5 DA1050M-GM DA1090M-GM DRA110M-5 11.00 11.49 120 57.5 DA1100M-GM DA1140M-GM DRA115M-5 11.50 11.99 123 60.0 45 HS-2534TRP DA1150M-GM DA1190M-GM SS14- DRA120M-5 12.00 12.49 126 62.5 DA1200M-GM DA1240M-GM DRA125M-5 12.50 12.99 14 129 65.0 DA1250M-GM DA1290M-GM DRA130M-5 13.00 13.49 132 67.5 DA1300M-GM DA1340M-GM DRA135M-5 13.50 13.99 135 70.0 DA1350M-GM DA1390M-GM SS16- DRA140M-5 14.00 14.49 141 72.5 DA1400M-GM DA1440M-GM DRA145M-5 14.50 14.99 16 144 75.0 DA1450M-GM DA1490M-GM DRA150M-5 15.00 15.99 151 80.0 48 HS-3048TRP DTP-6 DA1500M-GM DA1590M-GM SS18- DRA160M-5 16.00 16.99 18 158 85.0 DA1600M-GM DA1690M-GM DRA170M-5 17.00 17.99 164 90.0 DA1700M-GM DA1790M-GM SS20- DRA180M-5 18.00 18.99 20 173 95.0 50 DA1800M-GM DA1890M-GM DRA190M-5 19.00 19.99 179 100.0 DA1900M-GM DA1990M-GM SS25- DRA200M-5 20.00 20.99 191 105.0 DA2000M-GM DA2090M-GM DRA210M-5 21.00 21.99 197 110.0 HS-4067TRP DTP-7 DA2100M-GM DA2150M-GM DRA220M-5 22.00 22.99 25 204 115.0 56 DA2200M-GM DA2250M-GM DRA230M-5 23.00 23.99 210 120.0 DA2300M-GM DA2350M-GM DRA240M-5 24.00 24.99 216 125.0 DA2400M-GM DA2450M-GM SS32- DRA250M-5 25.00 25.50 32 226 130.0 60 DA2500M-GM DA2550M-GM 9 : Std. Item Стандартная позиция K11 Drilling
