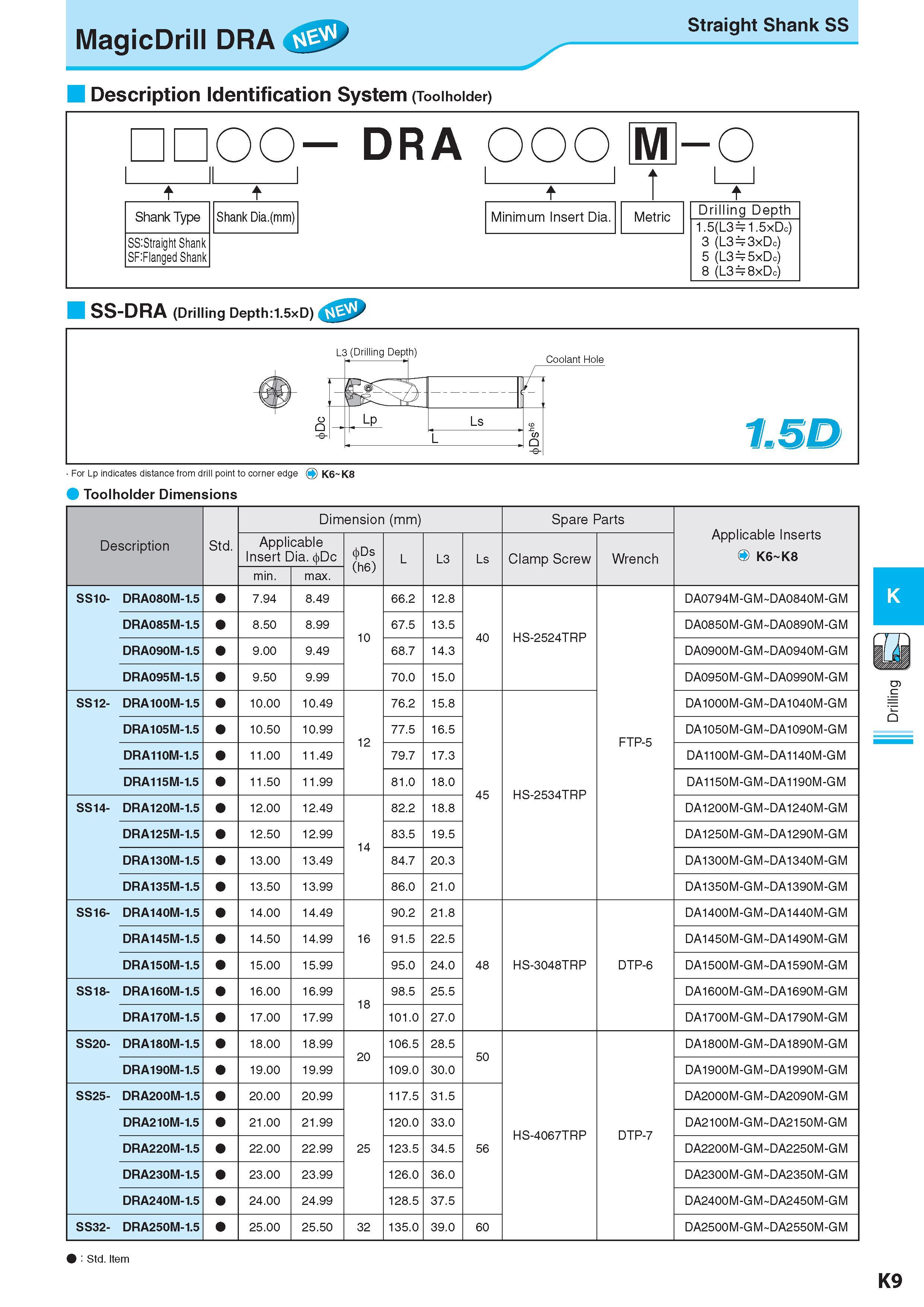

MagicDrill DRA Straight Shank SS Description Обозначение Identification System (Toolholder) OO- DRA OOO M-O Shank Type Shank Dia.(mm) SS:Straight Shank SF:Flanged Shank Minimum Insert Dia. T Metric Drilling Depth 1.5(L3=1.5xDc) 3 (L3 = 3xDc) 5 (L3 = 5xDc) 8 (L3 = 8xDc) SS-DRA (Drilling Depth:1.5xD) Toolholder Dimensions Dimension (mm) Размеры в мм Spare Parts Applicable Inserts O K6 K8 Description Обозначение Std. Applicable Insert Dia. iDc s) 5- L L3 Ls Clamp Screw Wrench min. max. SS10- DRA080M-1.5 7.94 8.49 66.2 12.8 DA0794M-GM DA0840M-GM DRA085M-1.5 8.50 8.99 10 67.5 13.5 40 HS-2524TRP DA0850M-GM DA0890M-GM DRA090M-1.5 9.00 9.49 68.7 14.3 DA0900M-GM DA0940M-GM DRA095M-1.5 9.50 9.99 70.0 15.0 DA0950M-GM DA0990M-GM SS12- DRA100M-1.5 10.00 10.49 76.2 15.8 DA1000M-GM DA1040M-GM DRA105M-1.5 10.50 10.99 12 77.5 16.5 FTP-5 DA1050M-GM DA1090M-GM DRA110M-1.5 11.00 11.49 79.7 17.3 DA1100M-GM DA1140M-GM DRA115M-1.5 11.50 11.99 81.0 18.0 45 HS-2534TRP DA1150M-GM DA1190M-GM SS14- DRA120M-1.5 12.00 12.49 82.2 18.8 DA1200M-GM DA1240M-GM DRA125M-1.5 12.50 12.99 14 83.5 19.5 DA1250M-GM DA1290M-GM DRA130M-1.5 13.00 13.49 84.7 20.3 DA1300M-GM DA1340M-GM DRA135M-1.5 13.50 13.99 86.0 21.0 DA1350M-GM DA1390M-GM SS16- DRA140M-1.5 14.00 14.49 90.2 21.8 DA1400M-GM DA1440M-GM DRA145M-1.5 14.50 14.99 16 91.5 22.5 DA1450M-GM DA1490M-GM DRA150M-1.5 15.00 15.99 95.0 24.0 48 HS-3048TRP DTP-6 DA1500M-GM DA1590M-GM SS18- DRA160M-1.5 16.00 16.99 18 98.5 25.5 DA1600M-GM DA1690M-GM DRA170M-1.5 17.00 17.99 101.0 27.0 DA1700M-GM DA1790M-GM SS20- DRA180M-1.5 18.00 18.99 20 106.5 28.5 50 DA1800M-GM DA1890M-GM DRA190M-1.5 19.00 19.99 109.0 30.0 DA1900M-GM DA1990M-GM SS25- DRA200M-1.5 20.00 20.99 117.5 31.5 DA2000M-GM DA2090M-GM DRA210M-1.5 21.00 21.99 120.0 33.0 HS-4067TRP DTP-7 DA2100M-GM DA2150M-GM DRA220M-1.5 22.00 22.99 25 123.5 34.5 56 DA2200M-GM DA2250M-GM DRA230M-1.5 23.00 23.99 126.0 36.0 DA2300M-GM DA2350M-GM DRA240M-1.5 24.00 24.99 128.5 37.5 DA2400M-GM DA2450M-GM SS32- DRA250M-1.5 25.00 25.50 32 135.0 39.0 60 DA2500M-GM DA2550M-GM 9 : Std. Item Стандартная позиция K9 Drilling
