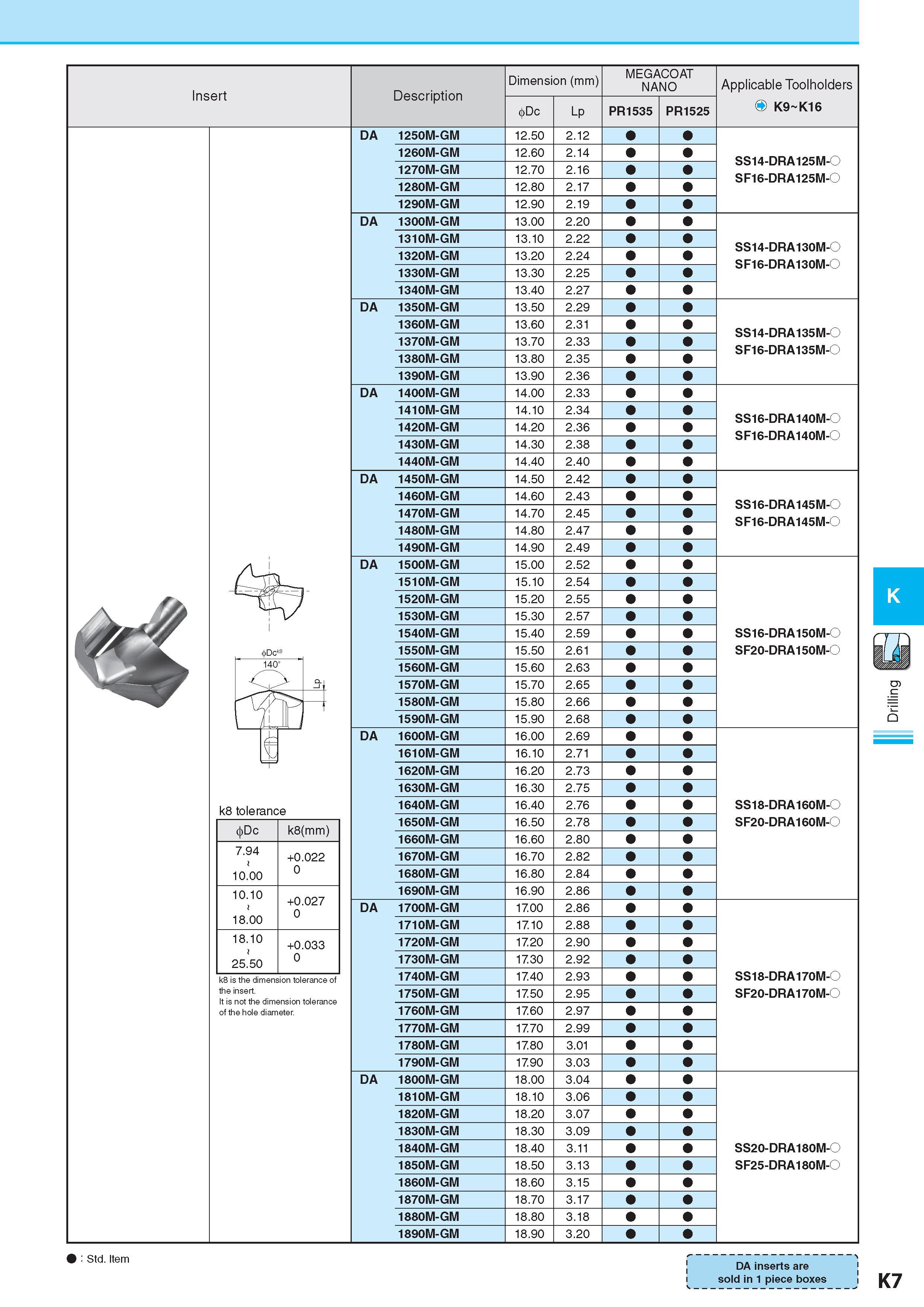

564 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K7

Каталог KYOCERA 2017 Инструмент режущий Стр. K7 0564 Lab2u

Insert Description Обозначение Dimension (mm) Размеры в мм 4>Dc Lp MEGACOAT NANO PR1535 PR1525 Applicable Toolholders O K9 K16 DA 1250M-GM k8 tolerance Dc k8(mm) 7.94 t 10.00 +0.022 0 10.10 t 18.00 +0.027 0 18.10 t 25.50 +0.033 0 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 1260M-GM 1270M-GM 1280M-GM 1290M-GM DA 1300M-GM 1310M-GM 1320M-GM 1330M-GM 1340M-GM DA 1350M-GM 1360M-GM 1370M-GM 1380M-GM 1390M-GM DA 1400M-GM 1410M-GM 1420M-GM 1430M-GM 1440M-GM DA 1450M-GM 1460M-GM 1470M-GM 1480M-GM 1490M-GM DA 1500M-GM 1510M-GM 1520M-GM 1530M-GM 1540M-GM 1550M-GM 1560M-GM 1570M-GM 1580M-GM 1590M-GM DA 1600M-GM 1610M-GM 1620M-GM 1630M-GM 1640M-GM 1650M-GM 1660M-GM 1670M-GM 1680M-GM 1690M-GM DA 1700M-GM 1710M-GM 1720M-GM 1730M-GM 1740M-GM 1750M-GM 1760M-GM 1770M-GM 1780M-GM 1790M-GM DA 1800M-GM 1810M-GM 1820M-GM 1830M-GM 1840M-GM 1850M-GM 1860M-GM 1870M-GM 1880M-GM 1890M-GM 12.50 2.12 12.60 2.14 12.70 2.16 12.80 2.17 12.90 2.19 13.00 2.20 13.10 2.22 13.20 2.24 13.30 2.25 13.40 2.27 13.50 2.29 13.60 2.31 13.70 2.33 13.80 2.35 13.90 2.36 14.00 2.33 14.10 2.34 14.20 2.36 14.30 2.38 14.40 2.40 14.50 2.42 14.60 2.43 14.70 2.45 14.80 2.47 14.90 2.49 15.00 2.52 15.10 2.54 15.20 2.55 15.30 2.57 15.40 2.59 15.50 2.61 15.60 2.63 15.70 2.65 15.80 2.66 15.90 2.68 16.00 2.69 16.10 2.71 16.20 2.73 16.30 2.75 16.40 2.76 16.50 2.78 16.60 2.80 16.70 2.82 16.80 2.84 16.90 2.86 17.00 2.86 17.10 2.88 17.20 2.90 17.30 2.92 17.40 2.93 17.50 2.95 17.60 2.97 17.70 2.99 17.80 3.01 17.90 3.03 18.00 3.04 18.10 3.06 18.20 3.07 18.30 3.09 18.40 3.11 18.50 3.13 18.60 3.15 18.70 3.17 18.80 3.18 18.90 3.20 SS14-DRA125M-O SF16-DRA125M-O SS14-DRA130M-O SF16-DRA130M-O SS14-DRA135M-O SF16-DRA135M-O SS16-DRA140M-O SF16-DRA140M-O SS16-DRA145M-O SF16-DRA145M-O SS16-DRA150M-O SF20-DRA150M-O SS18-DRA160M-O SF20-DRA160M-O SS18-DRA170M-O SF20-DRA170M-O SS20-DRA180M-O SF25-DRA180M-O 9 : Std. Item Стандартная позиция DA inserts are sold in 1 piece boxes K K7 Drilling
