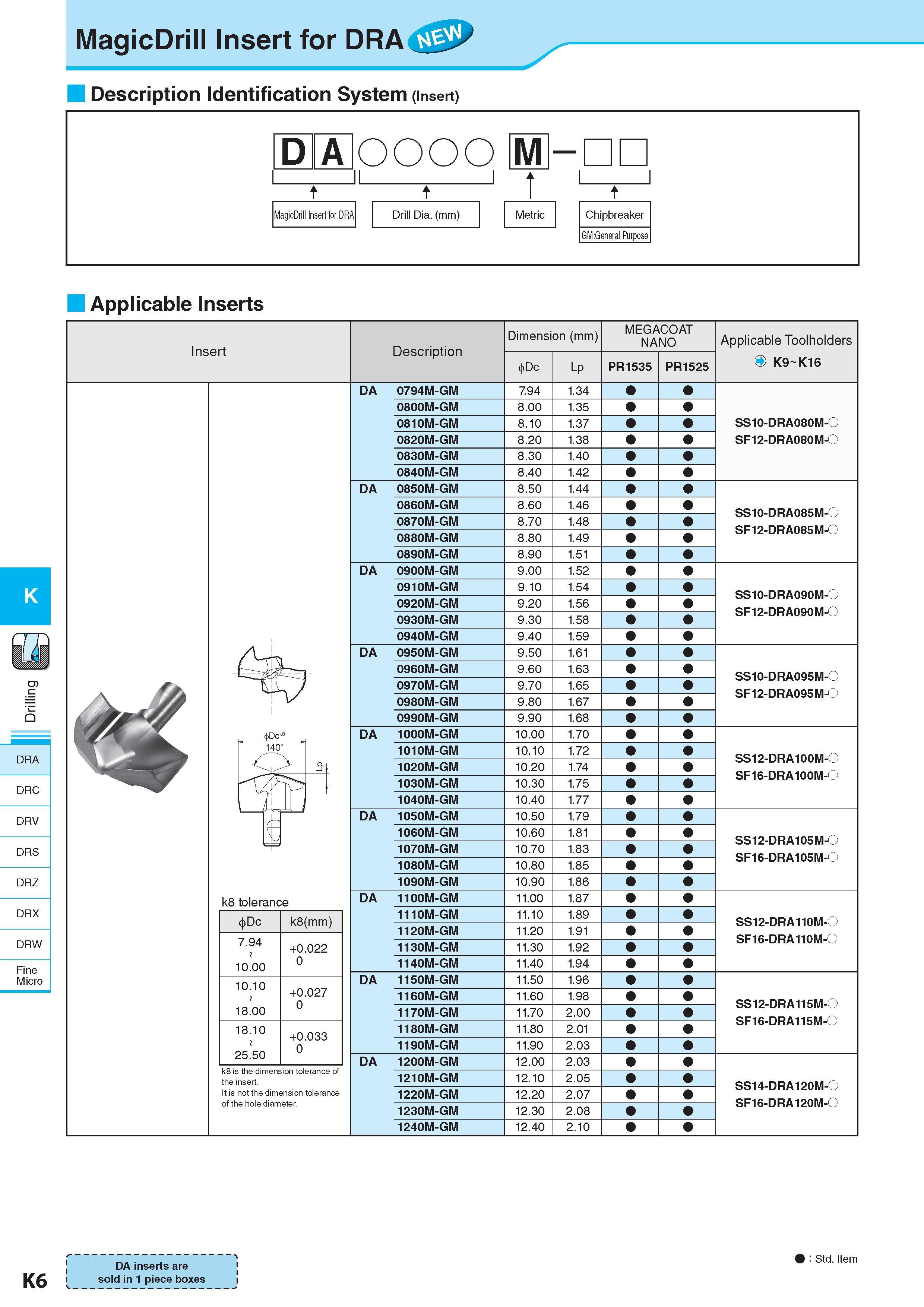

MagicDrill Insert for DRA 7 Description Обозначение Identification System (Insert) D A OOOO M- t t 1 t MagicDrill Insert for DRA Drill Dia. (mm) Metric Chipbreaker Стружколом сменной пластины GM:General Purpose Applicable Inserts Insert Description Обозначение Dimension (mm) Размеры в мм Dc Lp MEGACOAT NANO PR1535 PR1525 Applicable Toolholders O K9 K16 DRA DRC DRV DRS DRZ DRX DRW Fine Micro DA 0794M-GM k8 tolerance 0Dc k8(mm) 7.94 i 10.00 +0.022 0 10.10 I 18.00 +0.027 0 18.10 i 25.50 +0.033 0 k8 is the dimension tolerance of the insert. It is not the dimension tolerance of the hole diameter. 0800M-GM 0810M-GM 0820M-GM 0830M-GM 0840M-GM DA 0850M-GM 0860M-GM 0870M-GM 0880M-GM 0890M-GM DA 0900M-GM 0910M-GM 0920M-GM 0930M-GM 0940M-GM DA 0950M-GM 0960M-GM 0970M-GM 0980M-GM 0990M-GM DA 1000M-GM 1010M-GM 1020M-GM 1030M-GM 1040M-GM DA 1050M-GM 1060M-GM 1070M-GM 1080M-GM 1090M-GM DA 1100M-GM 1110M-GM 1120M-GM 1130M-GM 1140M-GM DA 1150M-GM 1160M-GM 1170M-GM 1180M-GM 1190M-GM DA 1200M-GM 1210M-GM 1220M-GM 1230M-GM 1240M-GM 7.94 1.34 8.00 1.35 8.10 1.37 8.20 1.38 8.30 1.40 8.40 1.42 8.50 1.44 8.60 1.46 8.70 1.48 8.80 1.49 8.90 1.51 9.00 1.52 9.10 1.54 9.20 1.56 9.30 1.58 9.40 1.59 9.50 1.61 9.60 1.63 9.70 1.65 9.80 1.67 9.90 1.68 10.00 1.70 10.10 1.72 10.20 1.74 10.30 1.75 10.40 1.77 10.50 1.79 10.60 1.81 10.70 1.83 10.80 1.85 10.90 1.86 11.00 1.87 11.10 1.89 11.20 1.91 11.30 1.92 11.40 1.94 11.50 1.96 11.60 1.98 11.70 2.00 11.80 2.01 11.90 2.03 12.00 2.03 12.10 2.05 12.20 2.07 12.30 2.08 12.40 2.10 SS10-DRA080M-O SF12-DRA080M-O SS10-DRA085M-O SF12-DRA085M-O SS10-DRA090M-O SF12-DRA090M-O SS10-DRA095M-O SF12-DRA095M-O SS12-DRA100M-O SF16-DRA100M-O SS12-DRA105M-O SF16-DRA105M-O SS12-DRA110M-O SF16-DRA110M-O SS12-DRA115M-O SF16-DRA115M-O SS14-DRA120M-O SF16-DRA120M-O K6 DA inserts are sold in 1 piece boxes 9 : Std. Item
