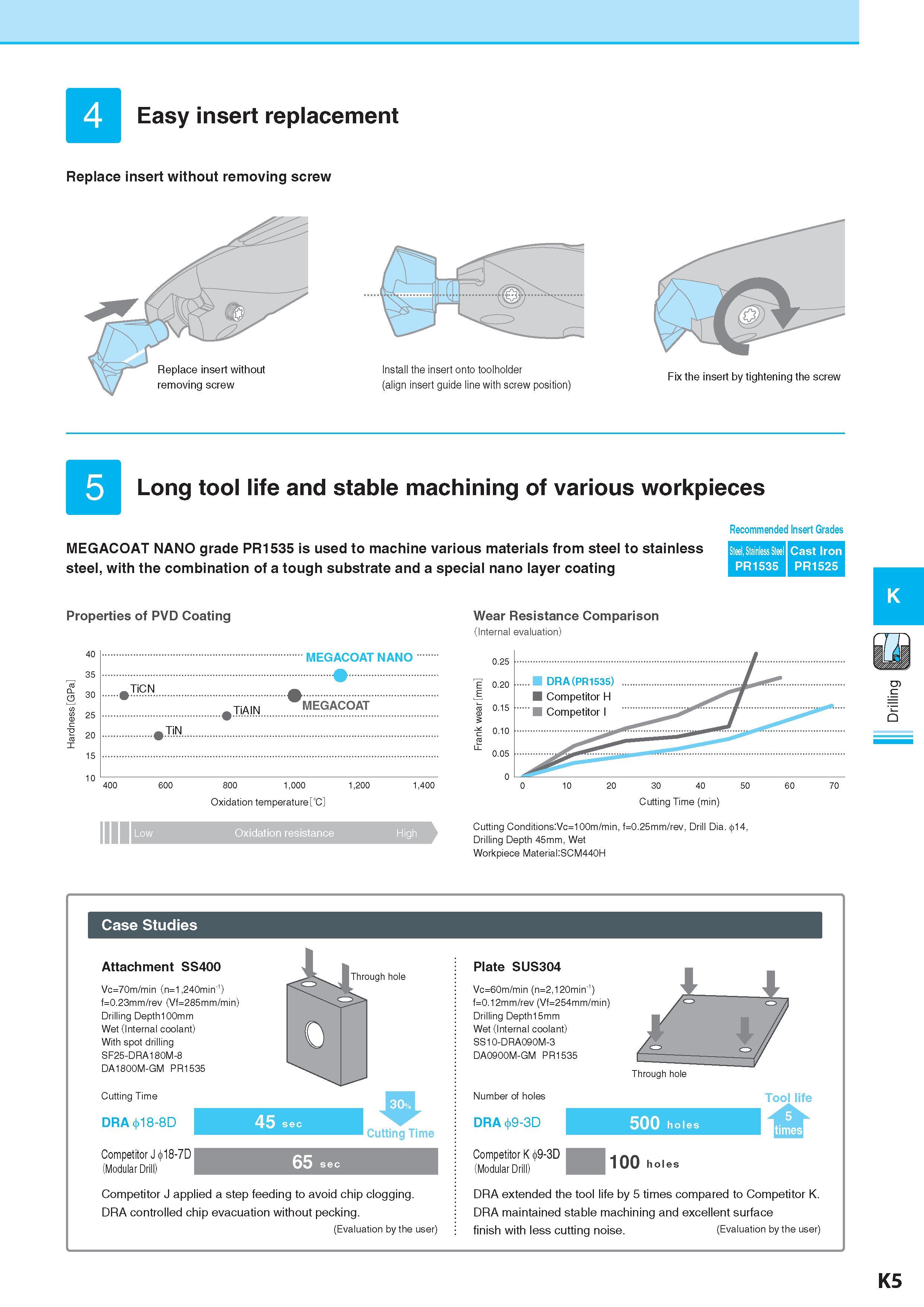

Easy insert replacement Replace insert without removing screw Install the insert onto toolholder (align insert guide line with screw position) Long tool life and stable machining of various workpieces MEGACOAT NANO grade PR1535 is used to machine various materials from steel to stainless steel, with the combination of a tough substrate and a special nano layer coating Recommended Insert Grades Cast Iron PR1525 Properties of PVD Coating 40 35 "to S 30 O) 25 0 25 20 I 15 10 TiCN TiAIN MEGACOAT NANO .... .......... MEGACOAT TiN mu 800 1,000 Oxidation temperature °C Oxidation resistance Wear Resistance Comparison DRA (PR1535) Competitor H Competitor I Internal 0.25 m m 0.20 rc e 5 0.15 c 2 0.10 0.05 0 0 10 20 30 40 50 Cutting Time (min) Cutting Conditions:Vc=100m/min, f=0.25mm/rev, Drill Dia. 14. Drilling Depth 45mm, Wet Workpiece Material:SCM440H 400 600 60 70 High Case Studies Attachment SS400 Vc=70m/min (n=1,240min'1) f=0.23mm/rev (Vf=285mm/min) Drilling Depth100mm Wet (Internal coolant) With spot drilling SF25-DRA180M-8 DA1800M-GM PR1535 Cutting Time DRA 18-8D Competitor J 18-7D (Modular Drill) Competitor J applied a step feeding to avoid chip clogging. DRA controlled chip evacuation without pecking. (Evaluation by the user) Plate SUS304 Vc=60m/min (n=2,120min-1) f=0.12mm/rev (Vf=254mm/min) Drilling Depth15mm Wet (Internal coolant) SS10-DRA090M-3 DA0900M-GM PR1535 Number of holes DRA 9-3D Competitor K 4>9-3D (Modular Drill) 500 holes Tool life I times 100 holes DRA extended the tool life by 5 times compared to Competitor K. DRA maintained stable machining and excellent surface finish with less cutting noise. (Evaluation by the user) K5 Drilling
