571 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.K14

Каталог KYOCERA 2017 Инструмент режущий Стр. K14 0571 Lab2u

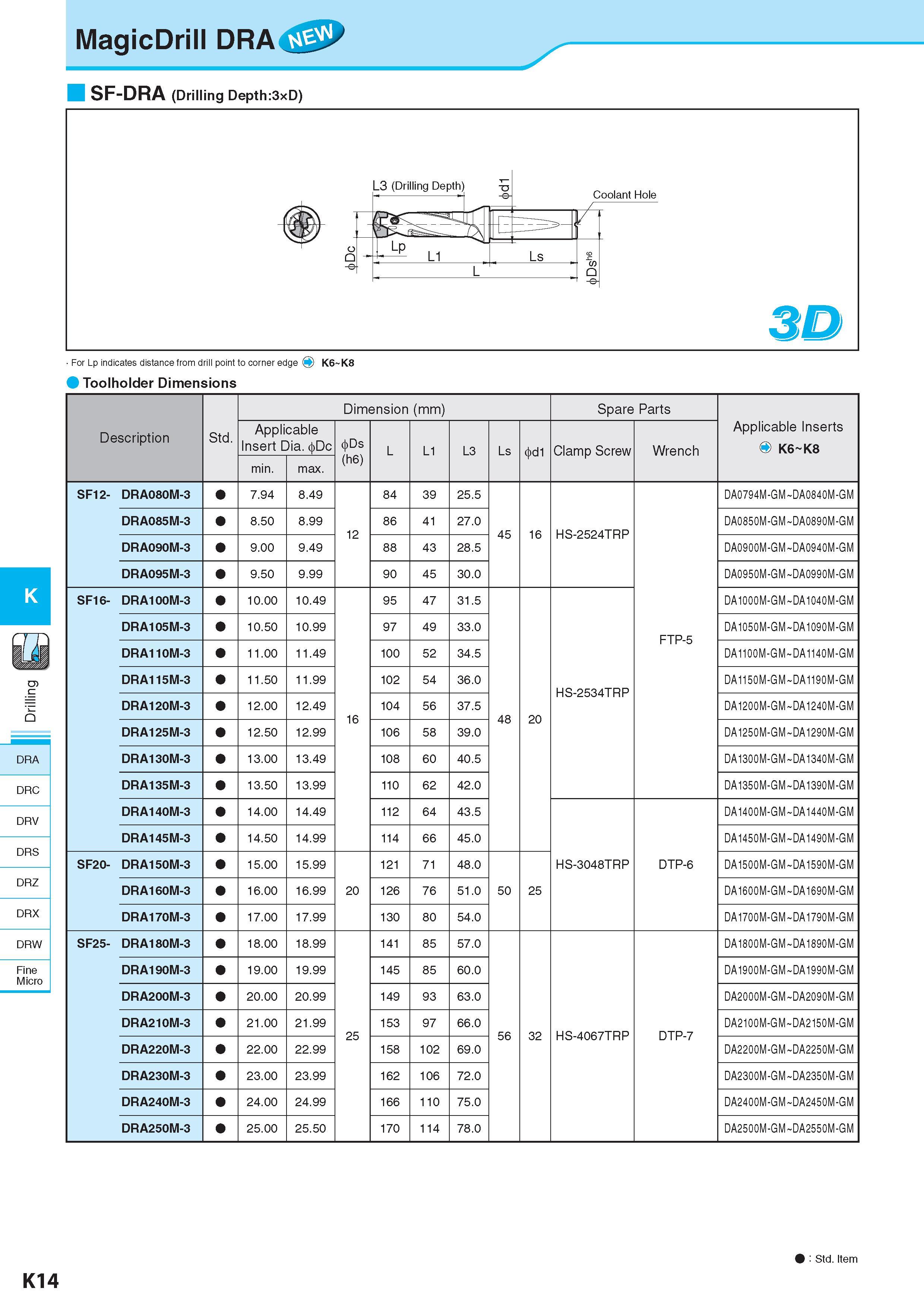

MagicDrill DRA 7 SF-DRA (Drilling Depth:3xD) For Lp indicates distance from drill point to corner edge O K6 K8 Toolholder Dimensions K DRA DRC DRV DRS DRZ DRX DRW Fine Micro Dimension (mm) Размеры в мм Spare Parts Description Обозначение Std. Applicable Insert Dia. 0Dc 0Ds L L1 L3 Ls 0d1 Clamp Screw Wrench Applicable Inserts O K6 K8 min. max. (h6) SF12- DRA080M-3 7.94 8.49 84 39 25.5 DA0794M-GM DA0840M-GM DRA085M-3 8.50 8.99 12 86 41 27.0 45 16 HS-2524TRP DA0850M-GM DA0890M-GM DRA090M-3 9.00 9.49 88 43 28.5 DA0900M-GM DA0940M-GM DRA095M-3 9.50 9.99 90 45 30.0 DA0950M-GM DA0990M-GM SF16- DRA100M-3 10.00 10.49 95 47 31.5 DA1000M-GM DA1040M-GM DRA105M-3 10.50 10.99 97 49 33.0 FTP-5 DA1050M-GM DA1090M-GM DRA110M-3 11.00 11.49 100 52 34.5 DA1100M-GM DA1140M-GM DRA115M-3 11.50 11.99 102 54 36.0 HS-2534TRP DA1150M-GM DA1190M-GM DRA120M-3 12.00 12.49 16 104 56 37.5 48 20 DA1200M-GM DA1240M-GM DRA125M-3 12.50 12.99 106 58 39.0 DA1250M-GM DA1290M-GM DRA130M-3 13.00 13.49 108 60 40.5 DA1300M-GM DA1340M-GM DRA135M-3 13.50 13.99 110 62 42.0 DA1350M-GM DA1390M-GM DRA140M-3 14.00 14.49 112 64 43.5 DA1400M-GM DA1440M-GM DRA145M-3 14.50 14.99 114 66 45.0 DA1450M-GM DA1490M-GM SF20- DRA150M-3 15.00 15.99 121 71 48.0 HS-3048TRP DTP-6 DA1500M-GM DA1590M-GM DRA160M-3 16.00 16.99 20 126 76 51.0 50 25 DA1600M-GM DA1690M-GM DRA170M-3 17.00 17.99 130 80 54.0 DA1700M-GM DA1790M-GM SF25- DRA180M-3 18.00 18.99 141 85 57.0 DA1800M-GM DA1890M-GM DRA190M-3 19.00 19.99 145 85 60.0 DA1900M-GM DA1990M-GM DRA200M-3 20.00 20.99 149 93 63.0 DA2000M-GM DA2090M-GM DRA210M-3 21.00 21.99 25 153 97 66.0 56 32 HS-4067TRP DTP-7 DA2100M-GM DA2150M-GM DRA220M-3 22.00 22.99 158 102 69.0 DA2200M-GM DA2250M-GM DRA230M-3 23.00 23.99 162 106 72.0 DA2300M-GM DA2350M-GM DRA240M-3 24.00 24.99 166 110 75.0 DA2400M-GM DA2450M-GM DRA250M-3 25.00 25.50 170 114 78.0 DA2500M-GM DA2550M-GM K14 9 : Std. Item
