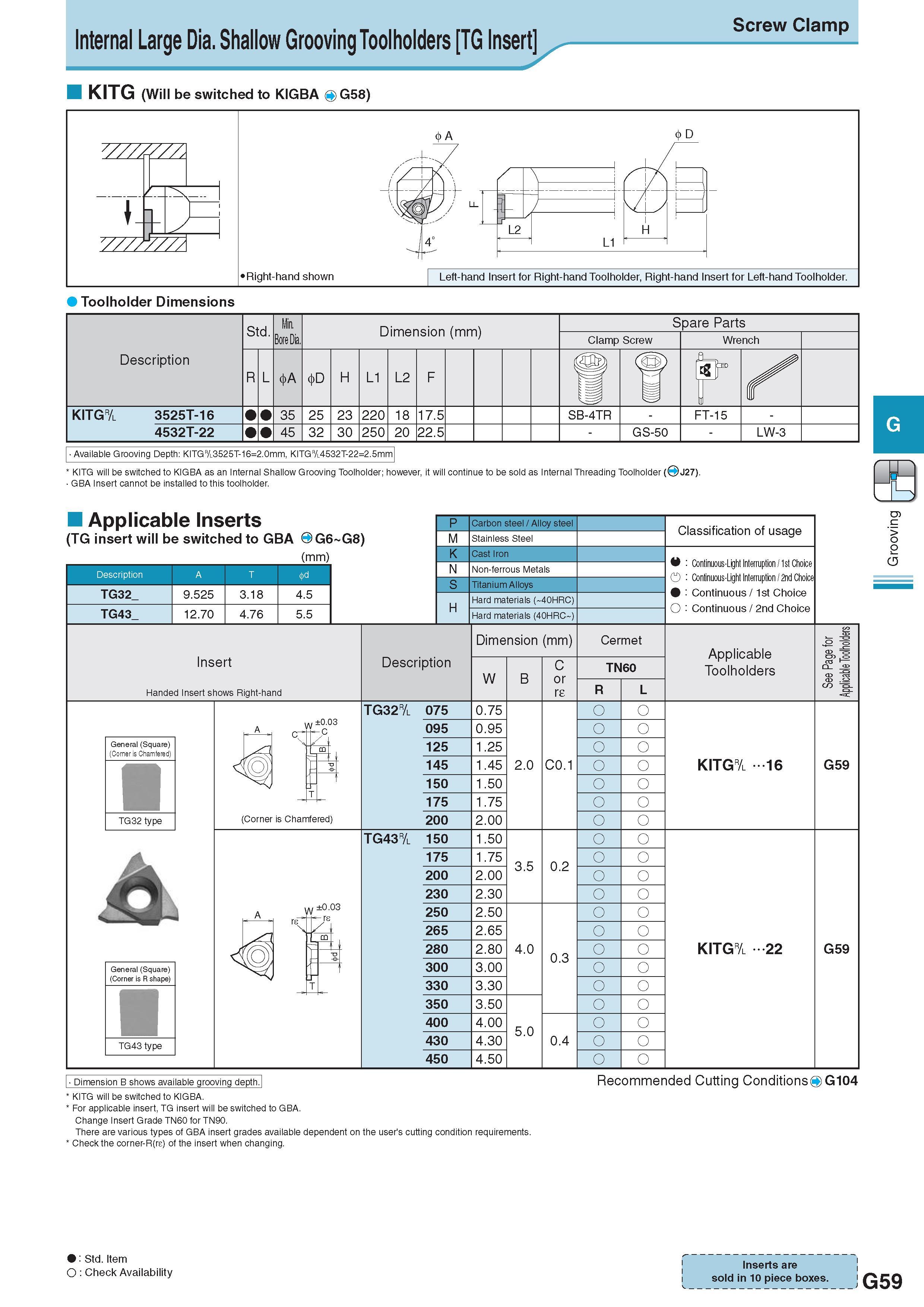

Internal Large Dia. Shallow Grooving Toolholders TG Insert KITG (Will be switched to KIGBA G58) Screw Clamp zzzzzm ” 52 y777777T\ Показано правое исполнение инструмента Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. KITG will be switched to KIGBA as an Internal Shallow Grooving Toolholder; however, it will continue to be sold as Internal Threading Toolholder (OJ27). GBA Insert cannot be installed to this toolholder. Applicable Inserts (TG insert will be switched to GBA O G6 G8) (mm) Description Обозначение A T TG32 9.525 3.18 4.5 TG43 12.70 4.76 5.5 P M K N S Carbon steel / Alloy steel Stainless Steel Non-ferrous Metals Titanium Alloys Hard materials ( 40HRC) Hard materials (40HRC ) Classification of usage Continuous-Light Interruption / 1st Choice Continuous-Light Interruption / 2nd Choice Continuous / 1st Choice Continuous / 2nd Choice Insert Handed Insert shows Right-hand Description Обозначение Dimension (mm) Размеры в мм Cermet W C or re TN60 Applicable Toolholders General (Square) (Corner is Chamfered) TG32 type General (Square) (Corner is R shape) n TG43 type TG32& 075 0.75 O c ±0.03 C 095 0.95 125 1.25 145 1.45 2.0 C0.1 150 1.50 175 1.75 (Corner is Chamfered) 200 2.00 TG43& 150 1.50 175 1.75 200 2.00 3.5 0.2 230 2.30 W± 250 2.50 265 2.65 280 2.80 4.0 300 3.00 0.3 330 3.30 350 3.50 400 4.00 430 4.30 5.0 0.4 450 4.50 KITG& -16 G59 KITG& -22 G59 Dimension B shows available grooving depth. KITG will be switched to KIGBA. For applicable insert, TG insert will be switched to GBA. Change Insert Grade TN60 for TN90. There are various types of GBA insert grades available dependent on the user's cutting condition requirements. Check the corner-R(re) of the insert when changing. Recommended Cutting Conditions Рекомендованные режимы резания на станкахO G104 H B R L W A C T A T G > 5 :Std. Item inserts" are O:Check toaMabMrty sold in 10 piece boxes. J G59
