417 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.G56

Каталог KYOCERA 2017 Инструмент режущий Стр. G56 0417 Lab2u

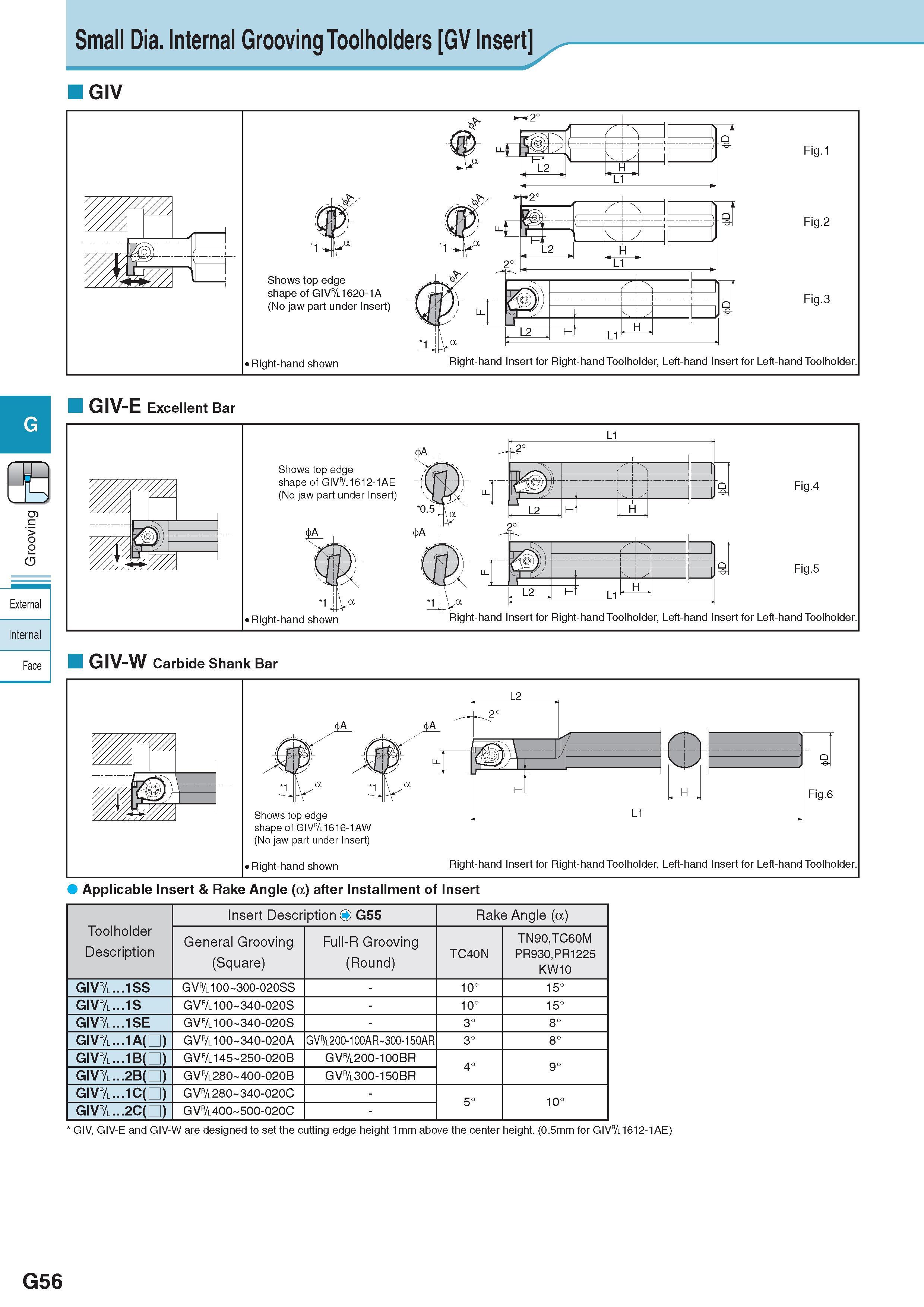

Small Dia. Internal Grooving Toolholders GV Insert GIV GIV-E Excellent Bar External Internal Shows top edge shape of GIV&1612-1AE (No jaw part under Insert) c(>A Показано правое исполнение инструмента Fig.4 Fig.5 Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. Face GIV-W Carbide Shank Bar G L2 shape of GIV&1616-1AW (No jaw part under Insert) Показано правое исполнение инструмента Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. Applicable Insert & Rake Angle (a) after Installment of Insert Toolholder Description Обозначение Insert Description Обозначение O G55 Rake Angle (a) General Grooving (Square) Full-R Grooving (Round) TC40N TN90,TC60M PR930,PR1225 KW10 GIV&...1SS GV&100 300-020SS - 10° 15° GIV&...1S GV& 100 340-020S - 10° 15° GIV&...1SE GV& 100 340-020S - 3° 8° GIVr/l...1A( ) GV&100 340-020A GV&200-100AR 300-150AR 3° 8° GIVr/l...1B( ) GV&145 250-020B GV&200-100BR 4° 9° GIVr/l...2B( ) GV&280 400-020B GV&300-150BR GIVr/l...1C( ) GV&280 340-020C - 5° 10° GIVr/l...2C( ) GV&400 500-020C - GIV, GIV-E and GIV-W are designed to set the cutting edge height 1mm above the center height. (0.5mm for GIV&1612-1AE) G56
