418 Каталог KYOCERA 2017 Инструмент сборный и монолитный для станков Стр.G57

Каталог KYOCERA 2017 Инструмент режущий Стр. G57 0418 Lab2u

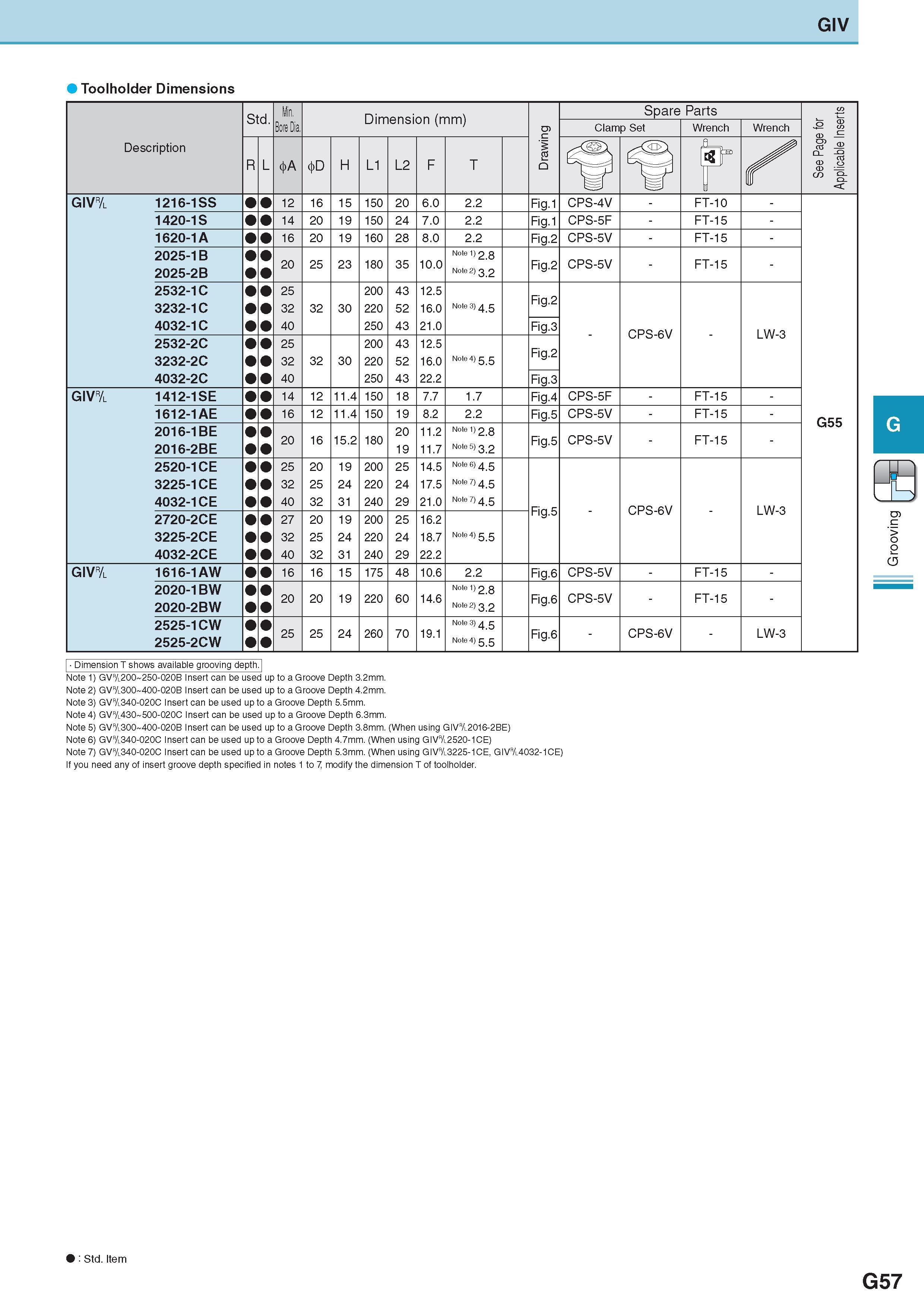

GIV Toolholder Dimensions Description Обозначение Std. Min. Bore Dia. Dimension (mm) Размеры в мм Drawing Spare Parts See Page for Applicable Inserts Clamp Set Wrench Wrench R L A D H L1 L2 F T n n GIV& 1216-1SS 12 16 15 150 20 6.0 2.2 Fig.1 CPS-4V - FT-10 - G55 1420-1S 14 20 19 150 24 7.0 2.2 Fig.1 CPS-5F - FT-15 - 1620-1A 16 20 19 160 28 8.0 2.2 Fig.2 CPS-5V - FT-15 - 2025-1B 2025-2B 20 25 23 180 35 10.0 Note 1) 2 8 Note 2) 32 Fig.2 CPS-5V - FT-15 - 2532-1C 3232-1C 4032-1C 25 32 40 32 30 200 220 250 43 52 43 12.5 16.0 21.0 Note 3) 45 Fig.2 - CPS-6V - LW-3 Fig.3 2532-2C 3232-2C 4032-2C 25 32 40 32 30 200 220 250 43 52 43 12.5 16.0 22.2 Note 4) 55 Fig.2 Fig.3 GIV& 1412-1SE 14 12 11.4 150 18 7.7 1.7 Fig.4 CPS-5F - FT-15 - 1612-1AE 16 12 11.4 150 19 8.2 2.2 Fig.5 CPS-5V - FT-15 - 2016-1BE 2016-2BE 20 16 15.2 180 20 19 11.2 11.7 Note 1) 2 8 Note 5) 32 Fig.5 CPS-5V - FT-15 - 2520-1CE 3225-1CE 4032-1CE 25 32 40 20 25 32 19 24 31 200 220 240 25 24 29 14.5 17.5 21.0 Note 6) 45 Note 7) 4.5 Note 7) 4.5 Fig.5 - CPS-6V - LW-3 2720-2CE 3225-2CE 4032-2CE 27 32 40 20 25 32 19 24 31 200 220 240 25 24 29 16.2 18.7 22.2 Note 4) 55 GIV& 1616-1AW 16 16 15 175 48 10.6 2.2 Fig.6 CPS-5V - FT-15 - 2020-1BW 2020-2BW 20 20 19 220 60 14.6 Note 1) 2 8 Note 2) 32 Fig.6 CPS-5V - FT-15 - 2525-1CW 2525-2CW 25 25 24 260 70 19.1 Note 3) 45 Note 4) 55 Fig.6 - CPS-6V - LW-3 rj > o o 5 Dimension T shows available grooving depth. Note 1) GVR/L200 250-020B Insert can be used up to a Groove Depth 3.2mm. Note 2) GVr/l300 400-020B Insert can be used up to a Groove Depth 4.2mm. Note 3) GV&340-020C Insert can be used up to a Groove Depth 5.5mm. Note 4) GVR/L430 500-020C Insert can be used up to a Groove Depth 6.3mm. Note 5) GVr/l300 400-020B Insert can be used up to a Groove Depth 3.8mm. (When using GIV&2016-2BE) Note 6) GV&340-020C Insert can be used up to a Groove Depth 4.7mm. (When using GIV&2520-1CE) Note 7) GV&340-020C Insert can be used up to a Groove Depth 5.3mm. (When using GIV&3225-1CE, GIV&4032-1CE) If you need any of insert groove depth specified in notes 1 to 7 modify the dimension T of toolholder. N: Std. Item G57
