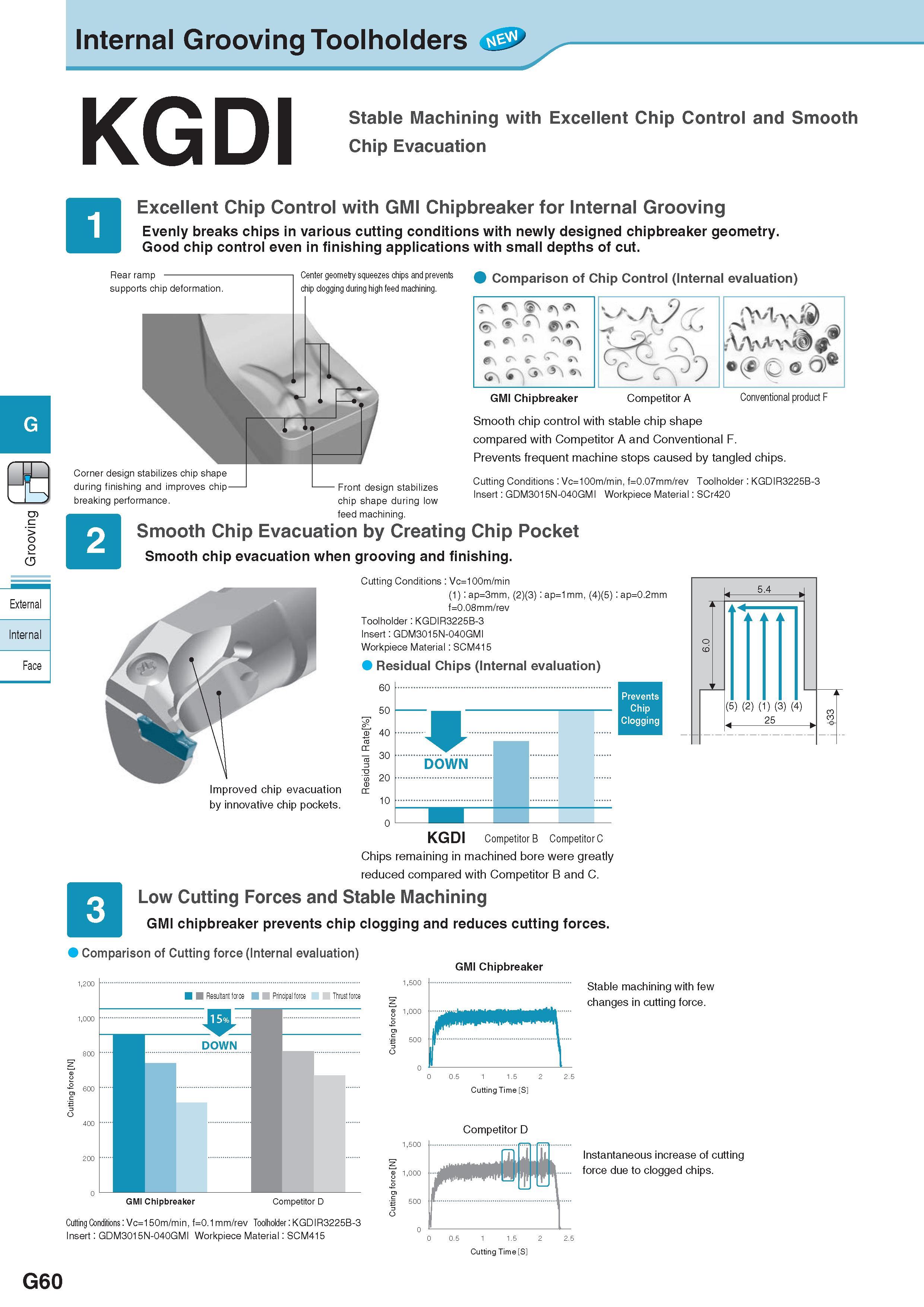

Internal Grooving Toolholders KGDI Stable Machining with Excellent Chip Control and Smooth Chip Evacuation External Internal Face Excellent Chip Control with GMI Chipbreaker Стружколом сменной пластины for Internal Grooving Evenly breaks chips in various cutting conditions with newly designed chipbreaker geometry. Good chip control even in finishing applications with small depths of cut. Rear ramp supports chip deformation. Center geometry squeezes chips and prevents chip clogging during high feed machining. Comparison of Chip Control (Internal evaluation) GMI Chipbreaker Стружколом сменной пластины Competitor A Smooth chip control with stable chip shape compared with Competitor A and Conventional F. Prevents frequent machine stops caused by tangled chips Conventional product F Corner design stabilizes chip shape during finishing and improves chip breaking performance. Cutting Conditions : Vc=100m/min, f=0.07mm/rev Toolholder: KGDIR3225B-3 Insert: GDM3015N-040GMI Workpiece Material: SCr420 Front design stabilizes chip shape during low feed machining. Smooth Chip Evacuation by Creating Chip Pocket Smooth chip evacuation when grooving and finishing. Cutting Conditions : Vc=100m/min (1): ap=3mm, (2)(3): ap=1mm, (4)(5): ap=0.2mm f=0.08mm/rev Toolholder: KGDIR3225B-3 Insert: GDM3015N-040GMI Workpiece Material: SCM415 Residual Chips (Internal evaluation) Improved chip evacuation by innovative chip pockets. Prevents Chip Clogging 5.4 (5) (2) (1) (3) 25 (4) Chips remaining in machined bore were greatly reduced compared with Competitor B and C. Low Cutting Forces and Stable Machining GMI chipbreaker prevents chip clogging and reduces cutting forces. Comparison of Cutting force (Internal evaluation) GMI Chipbreaker Стружколом сменной пластины Stable machining with few changes in cutting force. 0.5 1 1.5 2 Cutting Time S; Competitor D GMI Chipbreaker Стружколом сменной пластины Competitor D Cutting Conditions: Vc=150m/min, f=0.1mm/rev Toolholder: KGDIR3225B-3 Insert: GDM3015N-040GMI Workpiece Materia SCM415 Instantaneous increase of cutting force due to clogged chips. 0.5 1 1.5 2 Cutting Time S G 1,500 1,000 500 300 2.5 600 400 1,500 200 1,000 0 500 0 2.5 G60
