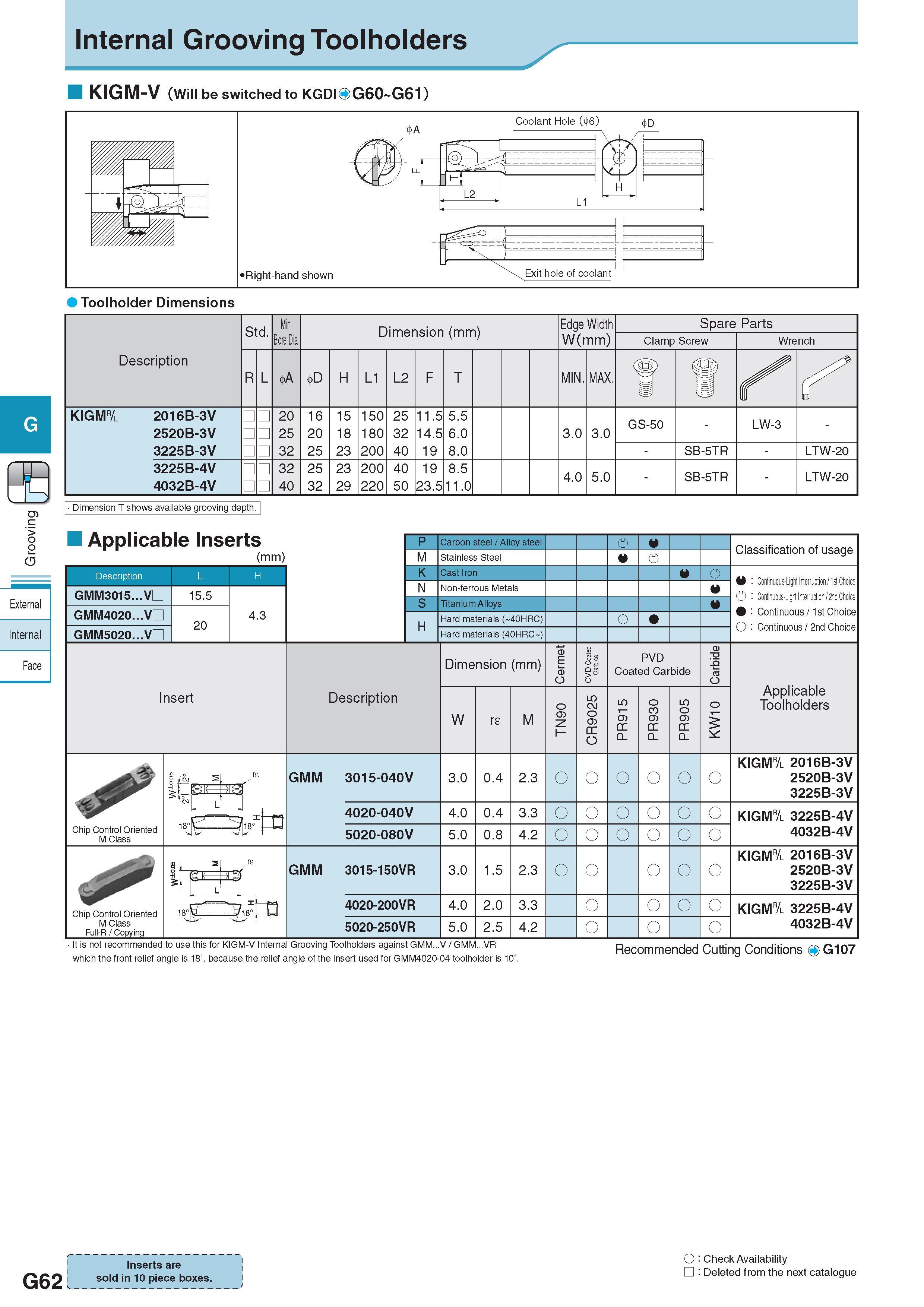

Internal Grooving Toolholders KIGM-V (Will be switched to KGDIOG6Q G61) Toolholder Dimensions G > 5 External Internal Face Description Обозначение Std. Min. Bore Dia Dimension (mm) Размеры в мм Edge Width W(mm) Spare Parts Clamp Screw Wrench R L 4>A D H L1 L2 F T MIN. MAX. u (p S KIGM& 2016B-3V 2520B-3V 3225B-3V 20 25 32 16 20 25 15 18 23 150 180 200 25 32 40 11.5 14.5 19 5.5 6.0 8.0 3.0 3.0 GS-50 - LW-3 SB-5TR - LTW-20 3225B-4V 4032B-4V 32 40 25 32 23 29 200 220 40 50 19 23.5 8.5 11.0 4.0 5.0 - SB-5TR - LTW-20 Dimension T shows available grooving depth. Applicable Inserts GMM3015...V GMM4020...V GMM5020...V 15.5 20 (mm) 4.3 M K N S Carbon steel / Alloy steel Stainless Steel Non-ferrous Metals Titanium Alloys Hard materials ( 40HRC) Hard materials (40HRC ) o o o w V Classification of usage Continuous-Light Interruption / 1st Choice Continuous-Light Interruption / 2nd Choice Continuous / 1st Choice Continuous / 2nd Choice Insert Description Обозначение Dimension (mm) Размеры в мм o PVD Coated Carbide (0 O W re M 0 & 5 2 0 & CL O CL CL 0 3 & CL CL 5 0 & CL CL Applicable Toolholders Chip Control Oriented M Class GMM 3015-040V 3.0 0.4 2.3 o o o o o o KIGM& 2016B-3V 2520B-3V 3225B-3V 4020-040V 4.0 0.4 3.3 o o o o o 5020-080V 5.0 0.8 4.2 o o o o o KIGM& 3225B-4V 4032B-4V Chip Control Oriented M Class Full-R / Copying GMM 3015-150VR 3.0 1.5 2.3 o o o o o KIGM& 2016B-3V 2520B-3V 3225B-3V 4020-200VR 4.0 2.0 3.3 o o o 5020-250VR 5.0 2.5 4.2 o o o o KIGM& 3225B-4V 4032B-4V It is not recommended to use this for KIGM-V Internal Grooving Toolholders against GMM.. which the front relief angle is 18°, because the relief angle of the insert used for GMM4020- V / GMM...VR 04 toolholder is 10°. Recommended Cutting Conditions Рекомендованные режимы резания на станках OG107 P L H G62 Inserts are sold in 10 piece boxes. o : Check Availability : Deleted from the next catalogue
