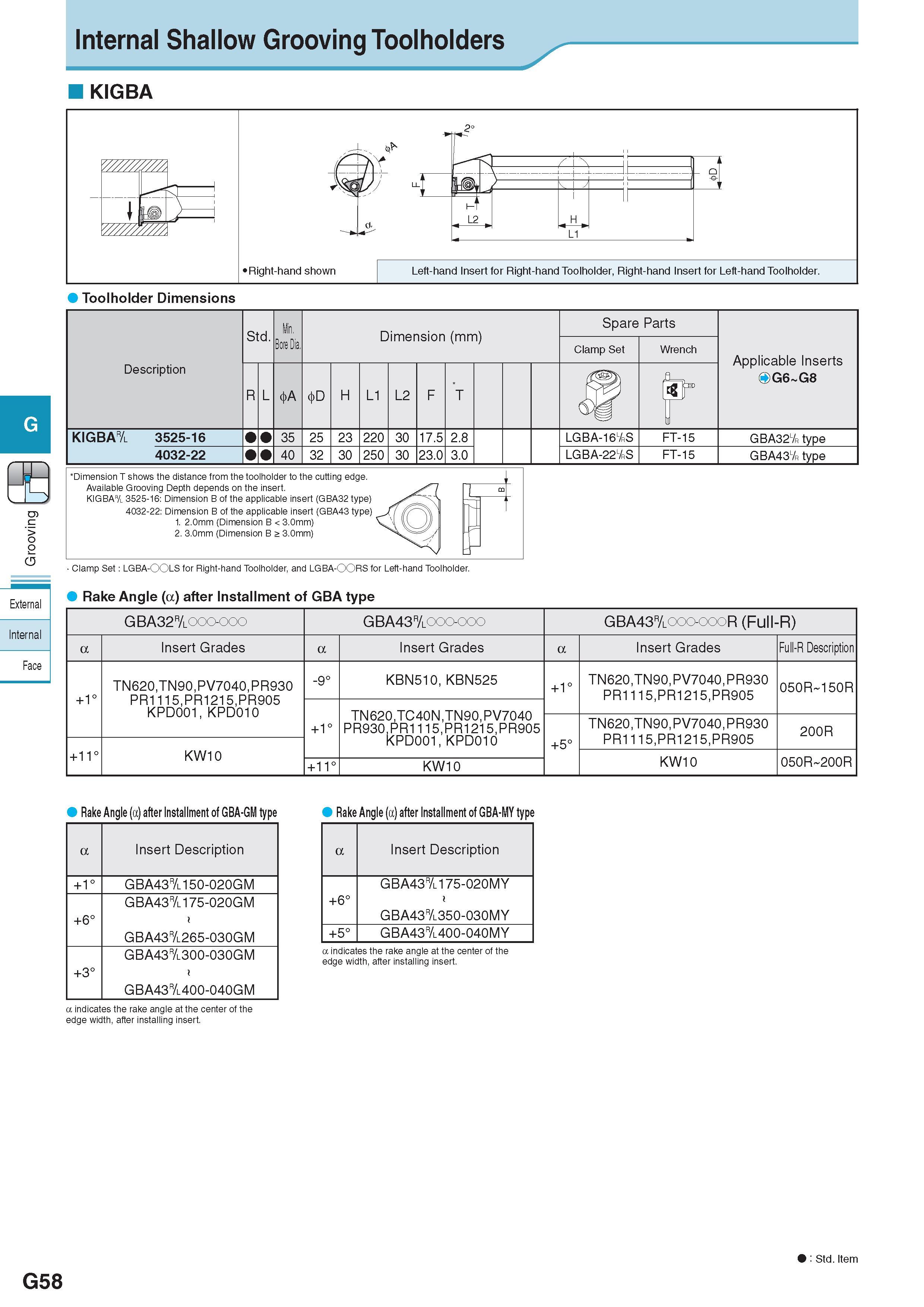

Internal Shallow Grooving Toolholders KIGBA Показано правое исполнение инструмента Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. G > o o <5 External Internal Face Toolholder Dimensions Description Обозначение Std. Min. Bore Dia Dimension (mm) Размеры в мм Spare Parts Applicable Inserts OG6-G8 Clamp Set Wrench R L A D H L1 L2 F T KIGBA& 3525-16 35 25 23 220 30 17.5 2.8 LGBA-16l/rS FT-15 GBA32l/r type 4032-22 40 32 30 250 30 23.0 3.0 LGBA-22l/rS FT-15 GBA43l/r type 'Dimension T shows the distance from the toolholder to the cutting edge. Available Grooving Depth depends on the insert. KIGBA& 3525-16: Dimension B of the applicable insert (GBA32 type) 4032-22: Dimension B of the applicable insert (GBA43 type) 1. 2.0mm (Dimension B < 3.0mm) 2. 3.0mm (Dimension B > 3.0mm) Clamp Set : LGBA-OOLS for Right-hand Toolholder, and LGBA-OORS for Left-hand Toolholder. Rake Angle (a) after Installment of GBA type GBA32&ooo-ooo GBA43 &ooo-ooo GBA43&ooo-oooR (Full-R) a Insert Grades a Insert Grades a Insert Grades Full-R Description Обозначение +1° TN620,TN90,PV7040,PR930 PR1115,PR1215,PR905 KPD001, KPD010 -9° KBN510, KBN525 +1° TN620,TN90,PV7040,PR930 PR1115,PR1215,PR905 050R 150R +1° TN620,TC40N,TN90,PV7040 PR930,PR1115,PR1215,PR905 KPD001, KPD010 +5° TN620,TN90,PV7040,PR930 PR1115,PR1215,PR905 200R +11° KW10 KW10 050R 200R +11° KW10 Rake Angle (a) after Installment of GBA-GM type Rake Angle (a) after Installment of GBA-MY type a Insert Description Обозначение +1° GBA43&150-020GM +6° GBA43&175-020GM GBA43&265-030GM +3° GBA43&300-030GM GBA43&400-040GM a indicates the rake angle at the center of the edge width, after installing insert. a Insert Description Обозначение +6° GBA43&175-020MY GBA43&350-030MY + Ol o GBA43&400-040MY a indicates the rake angle at the center of the edge width, after installing insert. G58 : Std. Item
