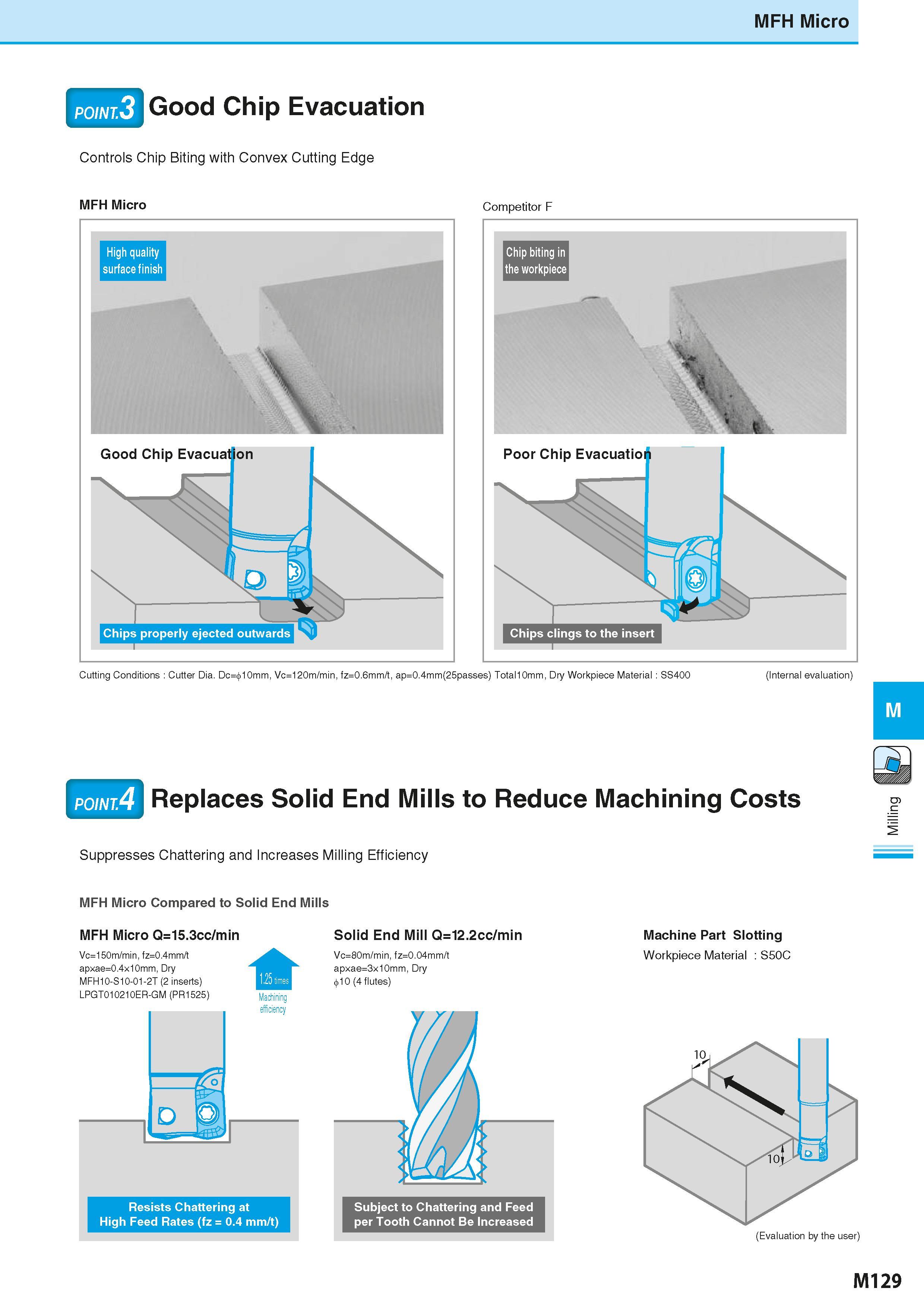

MFH Micro Good Chip Evacuation Controls Chip Biting with Convex Cutting Edge MFH Micro Competitor F Chip biting in the workpiece Poor Chip Evacuation Chips clings to the insert Cutting Conditions Cutter Dia. Dc= 10mm, Vc=120m/min, fz=0.6mm/t, ap=0.4mm(25passes) Total10mm, Dry Workpiece Material SS400 (Internal evaluation) Replaces Solid End Mills to Reduce Machining Costs Suppresses Chattering and Increases Milling Efficiency MFH Micro Compared to Solid End Mills MFH Micro Q=15.3cc/min Vc=150m/min, fz=0.4mm/t apxae=0.4x10mm, Dry MFH10-S10-01-2T (2 inserts) LPGT010210ER-GM (PR1525) 11.25 times Machining efficiency Resists Chattering at High Feed Rates (fz = 0.4 mm/t) Solid End Mill Q=12.2cc/min Vc=80m/min, fz=0.04mm/t apxae=3x10mm, Dry 10 (4 flutes) Subject to Chattering and Feed per Tooth Cannot Be Increased Machine Part Slotting Workpiece Material S50C M129
