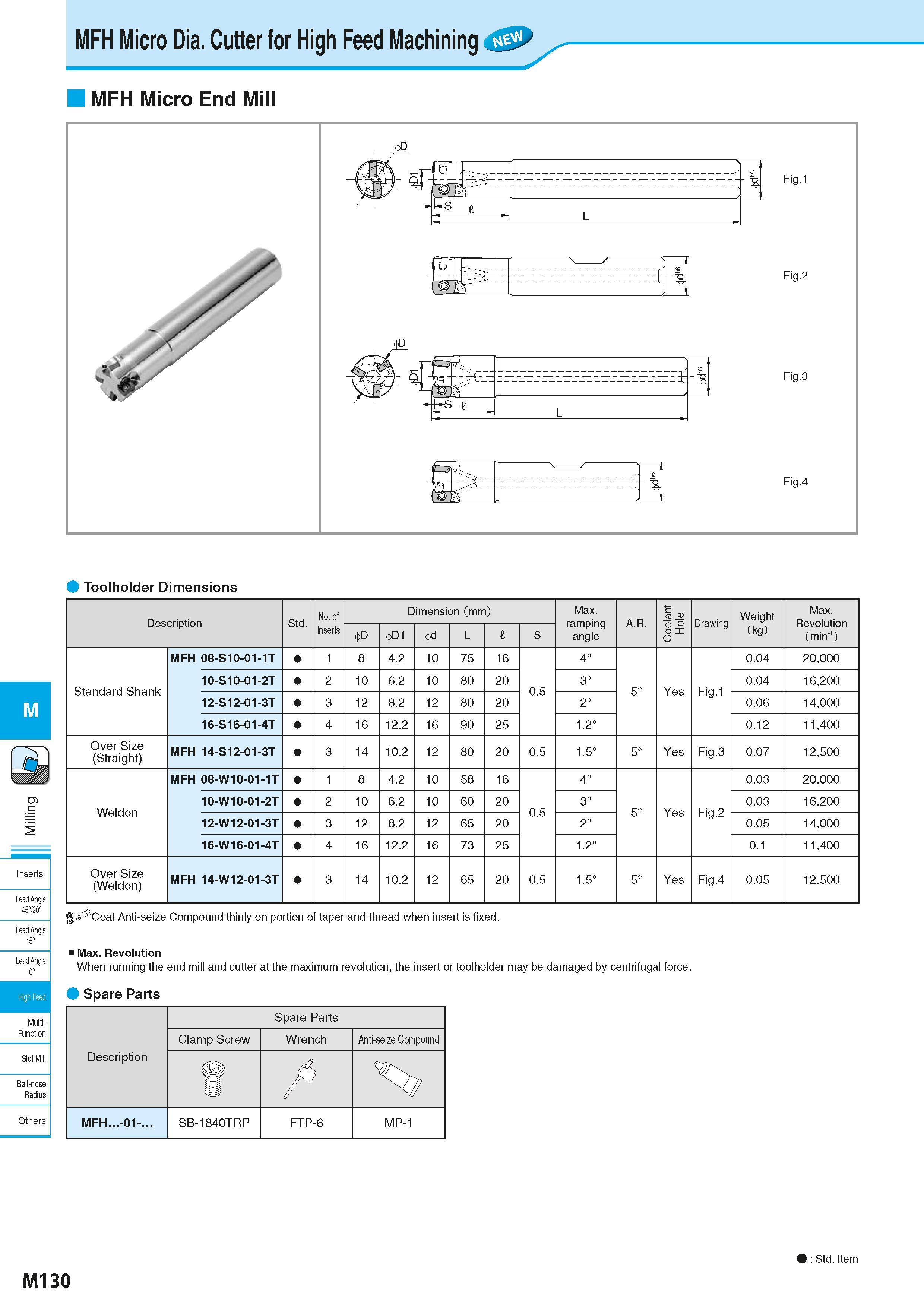

MFH Micro Dia. Cutter for High Feed Machining MFH Micro End Mill Toolholder Dimensions Description Обозначение инструмента для заказа Std. No. of Dimension (mm) Размеры инструмента указаны в мм Max. ramping angle A.R. Coolant Hole Drawing Weight Max. Revolution (min-1) Inserts D D1 d L 1 S (kg) MFH 08-S10-01-1T 1 8 4.2 10 75 16 4° 0.04 20,000 Standard Shank 10-S10-01-2T 2 10 6.2 10 80 20 0.5 3° 5° Yes Fig.1 0.04 16,200 12-S12-01-3T 3 12 8.2 12 80 20 2° 0.06 14,000 16-S16-01-4T 4 16 12.2 16 90 25 1.2° 0.12 11,400 Over Size (Straight) MFH 14-S12-01-3T 3 14 10.2 12 80 20 0.5 1.5° 5° Yes Fig.3 0.07 12,500 MFH 08-W10-01-1T 1 8 4.2 10 58 16 4° 0.03 20,000 Weldon 10-W10-01-2T 2 10 6.2 10 60 20 0.5 3° 5° Yes Fig.2 0.03 16,200 12-W12-01-3T 3 12 8.2 12 65 20 2° 0.05 14,000 16-W16-01-4T 4 16 12.2 16 73 25 1.2° 0.1 11,400 Over Size (Weldon) MFH 14-W12-01-3T 3 14 10.2 12 65 20 0.5 1.5° 5° Yes Fig.4 0.05 12,500 Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° Multi- Function Ball-nose Radius Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Spare Parts Slot Mi M130 Std. Item
