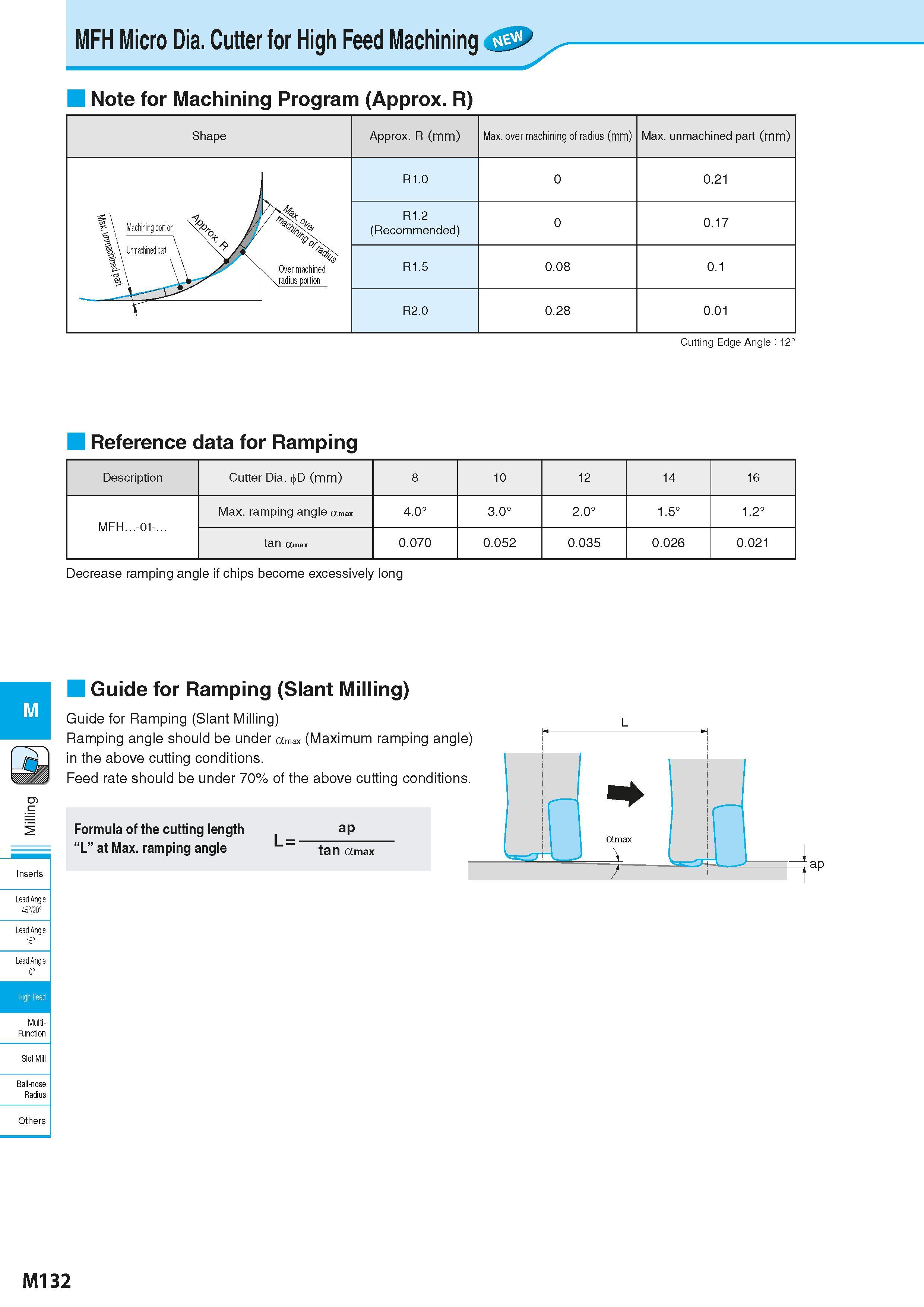

MFH Micro Dia. Cutter for High Feed Machining Note for Machining Program (Approx. R) Reference data for Ramping Description Cutter Dia. D (mm) 8 10 12 14 16 MFH...-01-... Max. ramping angle amax 4.0° 3.0° 2.0° 1.5° 1.2° tan amax 0.070 0.052 0.035 0.026 0.021 Decrease ramping angle if chips become excessively long Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° Multi- Function Ball-nose Radius Guide for Ramping (Slant Milling) Guide for Ramping (Slant Milling) Ramping angle should be under amax (Maximum ramping angle) in the above cutting conditions. Feed rate should be under 70% of the above cutting conditions. raP L Slot Mill M132
