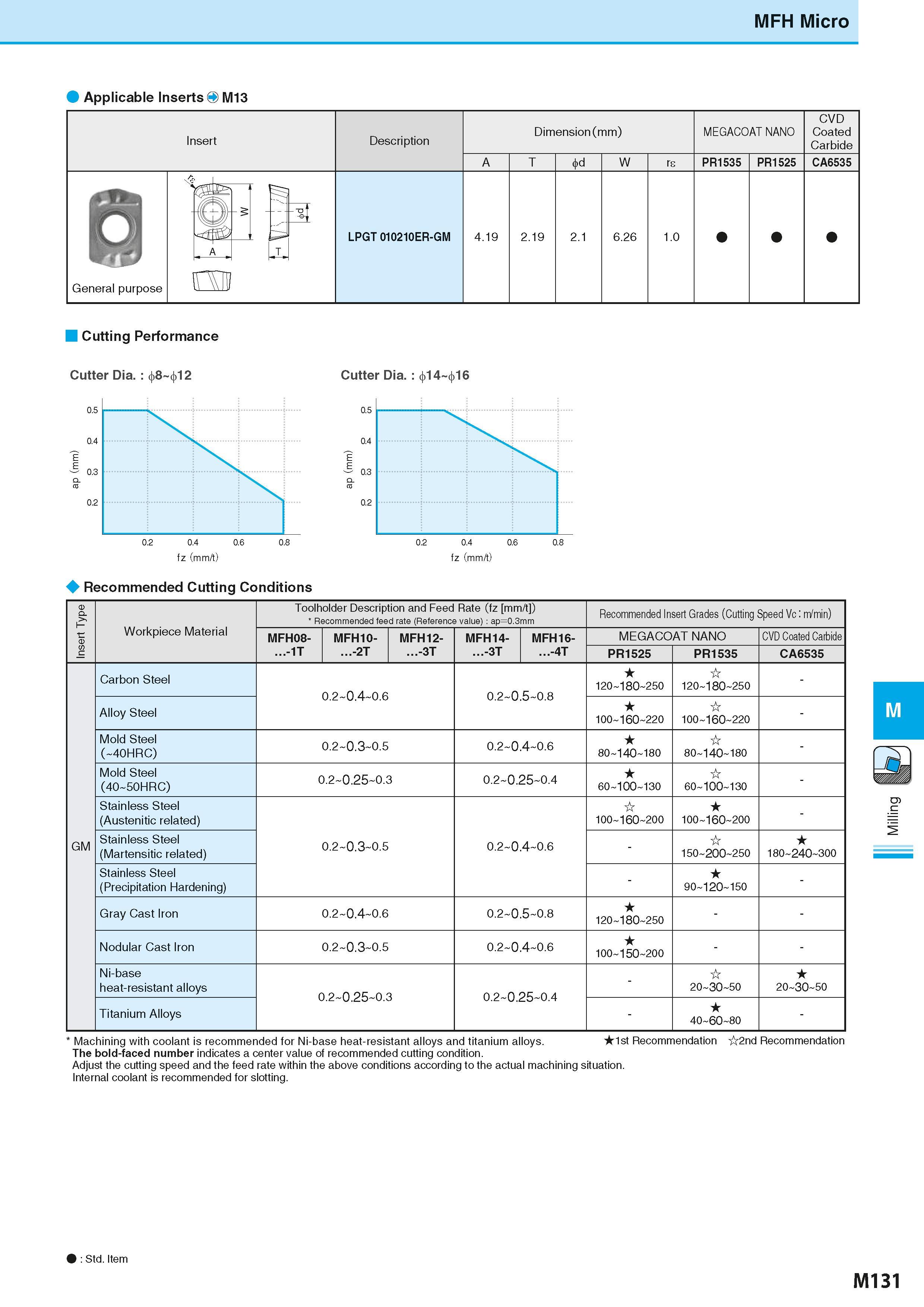

MFH Micro Applicable Inserts O M13 Insert Description Dimension (mm) Размеры инструмента указаны в мм A T W rs MEGACOAT NANO PR1535 PR1525 CVD Coated Carbide CA6535 General purpose 8 ( >12 fz (mm/t) Recommended Cutting Conditions Cutter Dia. 14- 16 fz (mm/t) Insert Type Workpiece Material Toolholder Description and Feed Rate (fz mm/t ) Recommended feed rate (Reference value) ap=0.3mm Recommended Insert Grades (Cutting Speed Vc: m/min) MFH08- MFH10- MFH12- MFH14- MFH16- MEGACOAT NANO CVD Coated Carbide ...-1T ...-2T ...-3T ...-3T ...-4T PR1525 PR1535 CA6535 Carbon Steel 0.2 0.4 0.6 0.2 0.5 0.8 120 180 250 120 180 250 - Alloy Steel 100 160 220 100 160 220 - Mold Steel ( 40HRC) 0.2 0.3 0.5 0.2 0.4 0.6 80 140 180 80 140 180 - Mold Steel (40 50HRC) 0.2 0.25 0.3 0.2 0.25 0.4 60 100 130 60 100 130 - Stainless Steel (Austenitic related) 100 160 200 100 160 200 - GM Stainless Steel (Martensitic related) 0.2 0.3 0.5 0.2 0.4 0.6 - 150 200 250 180 240 300 Stainless Steel (Precipitation Hardening) - 90 120 150 - Gray Cast Iron 0.2 0.4 0.6 0.2 0.5 0.8 120 180 250 Nodular Cast Iron 0.2 0.3 0.5 0.2 0.4 0.6 100 150 200 Ni-base heat-resistant alloys 0.2 0.25 0.3 0.2 0.25 0.4 - 20 30 50 20 30 50 Titanium Alloys - 40 60 80 - Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. 1st Recommendation 2nd Recommendation The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Internal coolant is recommended for slotting. Std. Item M131
