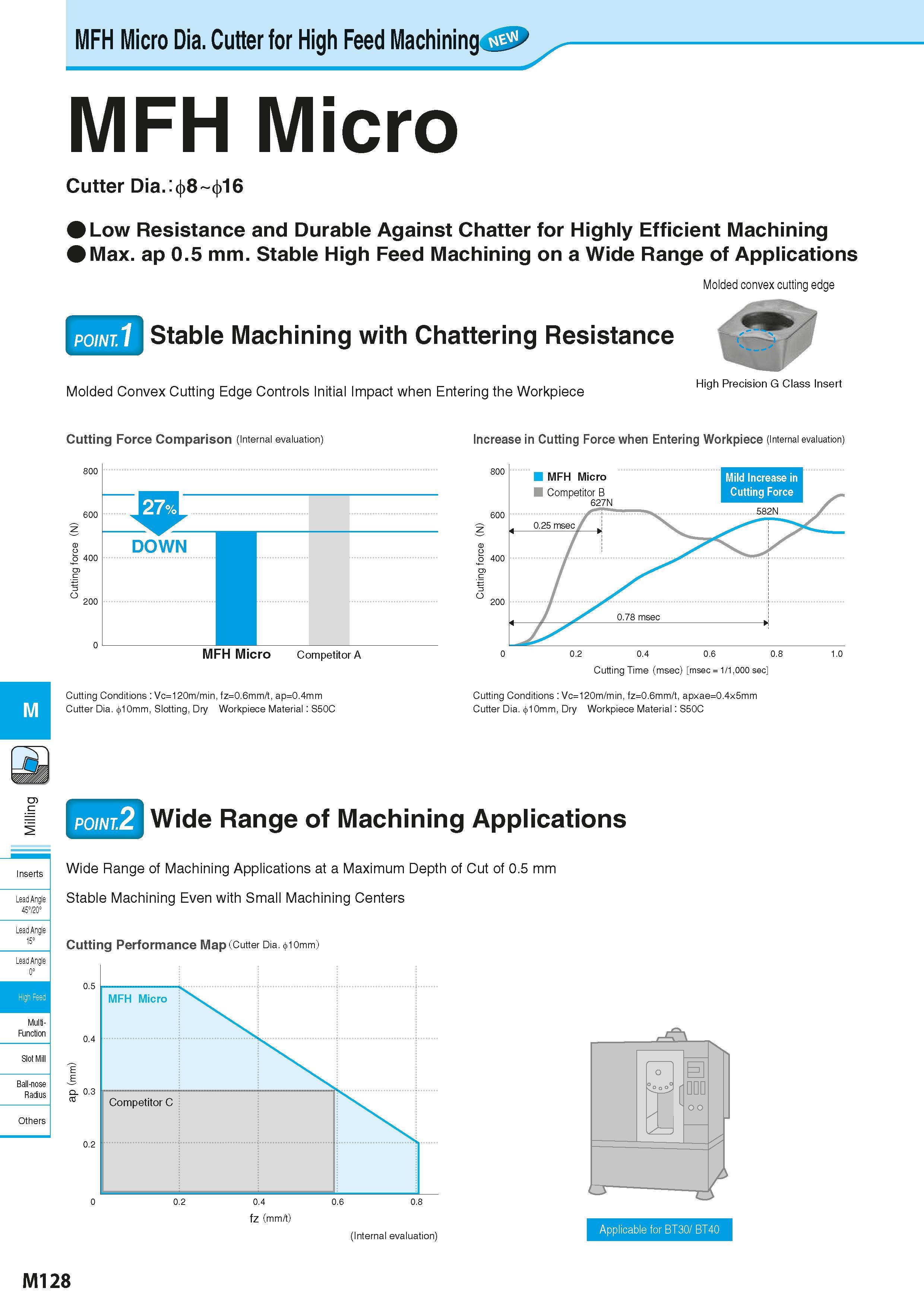

MFH Micro Dia. Cutter for High Feed Machining MFH Micro Cutter Dia.: 8 16 Low Resistance and Durable Against Chatter for Highly Efficient Machining Max. ap 0.5 mm. Stable High Feed Machining on a Wide Range of Applications Molded convex cutting edge point.1\ Stable Machining with Chattering Resistance Molded Convex Cutting Edge Controls Initial Impact when Entering the Workpiece Cutting Force Comparison (Internal evaluation) Increase in Cutting Force when Entering Workpiece (Internal evaluation) MFH Micro Competitor A Cutting Conditions Vc=120m/min, fz=0.6mm/t, ap=0.4mm Cutter Dia. 10mm, Slotting, Dry Workpiece Material: S50C Cutting Time (msec) msec = 1/1,000 sec; Cutting Conditions Vc=120m/min, fz=0.6mm/t, apxae=0.4x5mm Cutter Dia. 10mm, Dry Workpiece Material: S50C Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° Multi- Function Ball-nose Radius Wide Range of Machining Applications Wide Range of Machining Applications at a Maximum Depth of Cut of 0.5 mm Stable Machining Even with Small Machining Centers Cutting Performance Ma (Cutter Dia. 10mm) tp 0.3 CC MFH Micro Competitor C 0.4 fz (mm/t) n (Internal evaluation) cr Applicable for BT30/ BT40 800 600 o 400 200 0 Slot Ml 0 M128
