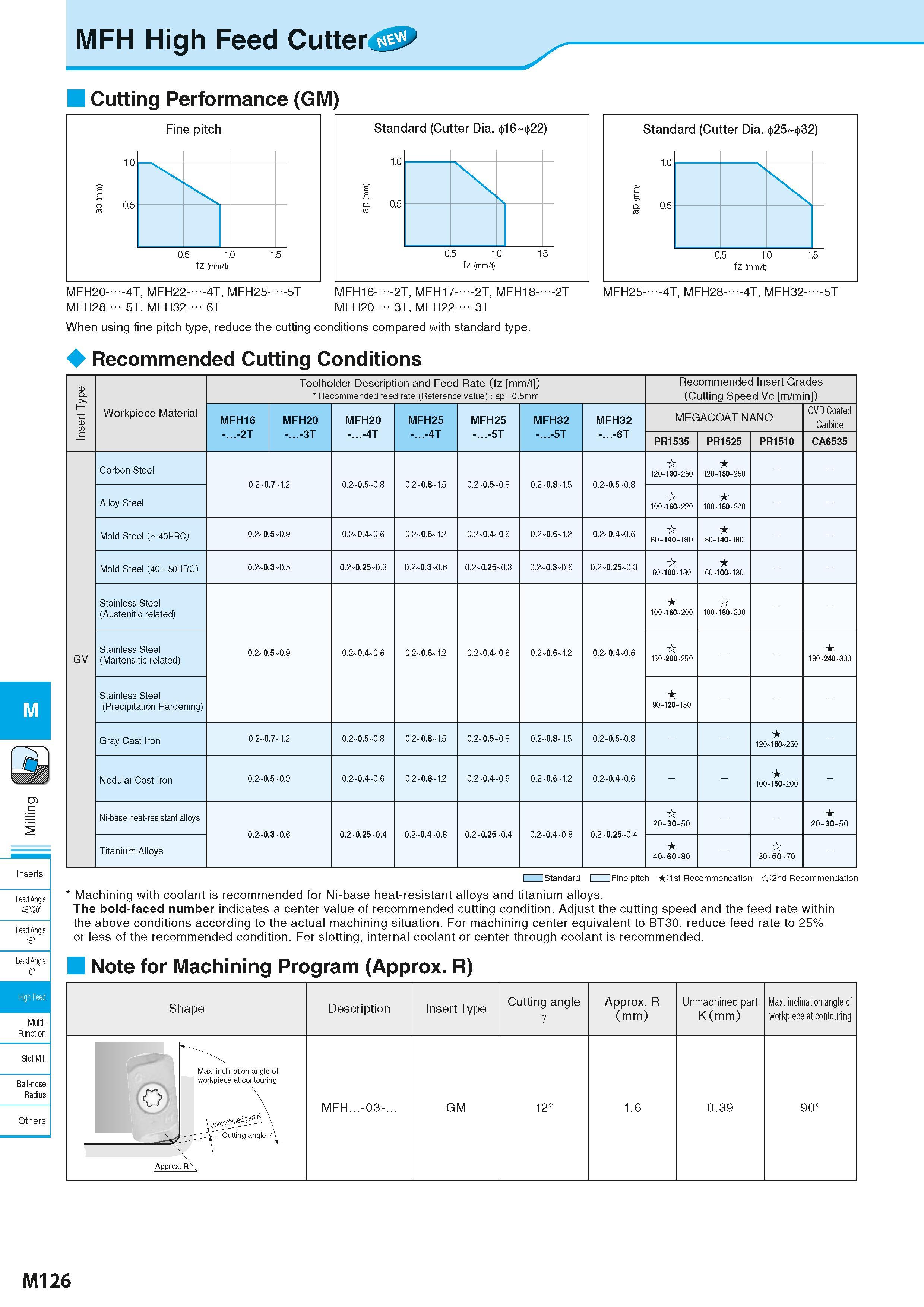

MFH High Feed Cutter Cutting Performance (GM) Standard (Cutter Dia. fl6 22) fz (mm/t) Standard (Cutter Dia. 25 32) fz (mm/t) MFH20 -4T, MFH22 -4T, MFH25 -5T MFH28 -5T, MFH32 -6T MFH16 -2T, MFH17 -2T, MFH18 -2T MFH20 -3T, MFH22 -3T MFH25 -4T, MFH28 -4T, MFH32 -5T When using fine pitch type, reduce the cutting conditions compared with standard type. Recommended Cutting Conditions o p Typ c e s In Workpiece Material Toolholder Description and Feed Rate (fz mm/t ) Recommended feed rate (Reference value) ap=0.5mm Recommended Insert Grades (Cutting Speed Vc m/min ) MFH16 -...-2T MFH20 -...-3T MFH20 -...-4T MFH25 -...-4T MFH25 -...-5T MFH32 -...-5T MFH32 -...-6T MEGACOAT NANO CVD Coated Carbide PR1535 PR1525 PR1510 CA6535 GM Carbon Steel 0.2 0.7 1.2 0.2-0.5-0.8 0.2 0.8 1.5 0.2-0.5-0.8 0.2 0.8 1.5 0.2-0.5-0.8 120-180-250 120-180-250 Alloy Steel 100-160-220 100-160-220 Mold Steel (-40HRC) 0.2-0.5-0.9 0.2-0.4-0.6 0.2 0.6 1.2 0.2-0.4-0.6 0.2 0.6 1.2 0.2-0.4-0.6 80-140-180 80-140-180 Mold Steel (40-50HRC) 0.2-0.3-0.5 0.2-0.25-0.3 0.2-0.3-0.6 0.2-0.25-0.3 0.2-0.3-0.6 0.2-0.25-0.3 60-100-130 60-100-130 Stainless Steel (Austenitic related) 0.2-0.5-0.9 0.2-0.4-0.6 0.2 0.6 1.2 0.2-0.4-0.6 0.2 0.6 1.2 0.2-0.4-0.6 100-160-200 100-160-200 Stainless Steel (Martensitic related) 150-200-250 180-240-300 Stainless Steel (Precipitation Hardening) 90-120-150 - Gray Cast Iron 0.2 0.7 1.2 0.2-0.5-0.8 0.2 0.8 1.5 0.2-0.5-0.8 0.2 0.8 1.5 0.2-0.5-0.8 120-180-250 - Nodular Cast Iron 0.2-0.5-0.9 0.2-0.4-0.6 0.2 0.6 1.2 0.2-0.4-0.6 0.2 0.6 1.2 0.2-0.4-0.6 100-150-200 - Ni-base heat-resistant alloys 0.2-0.3-0.6 0.2-0.25-0.4 0.2-0.4-0.8 0.2-0.25-0.4 0.2-0.4-0.8 0.2-0.25-0.4 20-30-50 20-30-50 Titanium Alloys 40-60-80 - 30-50-70 - Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° i iStandard I I Fine pitch : 1st Recommendation :2nd Recommendation Machining with coolant is recommended for Ni-base heat-resistant alloys and titanium alloys. The bold-faced number indicates a center value of recommended cutting condition. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. For machining center equivalent to BT30, reduce feed rate to 25% or less of the recommended condition. For slotting, internal coolant or center through coolant is recommended. Note for Machining Program (Approx. R) Shape Description Insert Type Cutting angle Y Approx. R (mm) Unmachined part K(mm) Max. inclination angle of workpiece at contouring o Approx Max. inclination angle of workpiece at contouring Cutting angle y \ . r\ MFH...-03-... GM 12° 1.6 0.39 90° Multi- Function Ball-nose Radius Slot Mi M126
