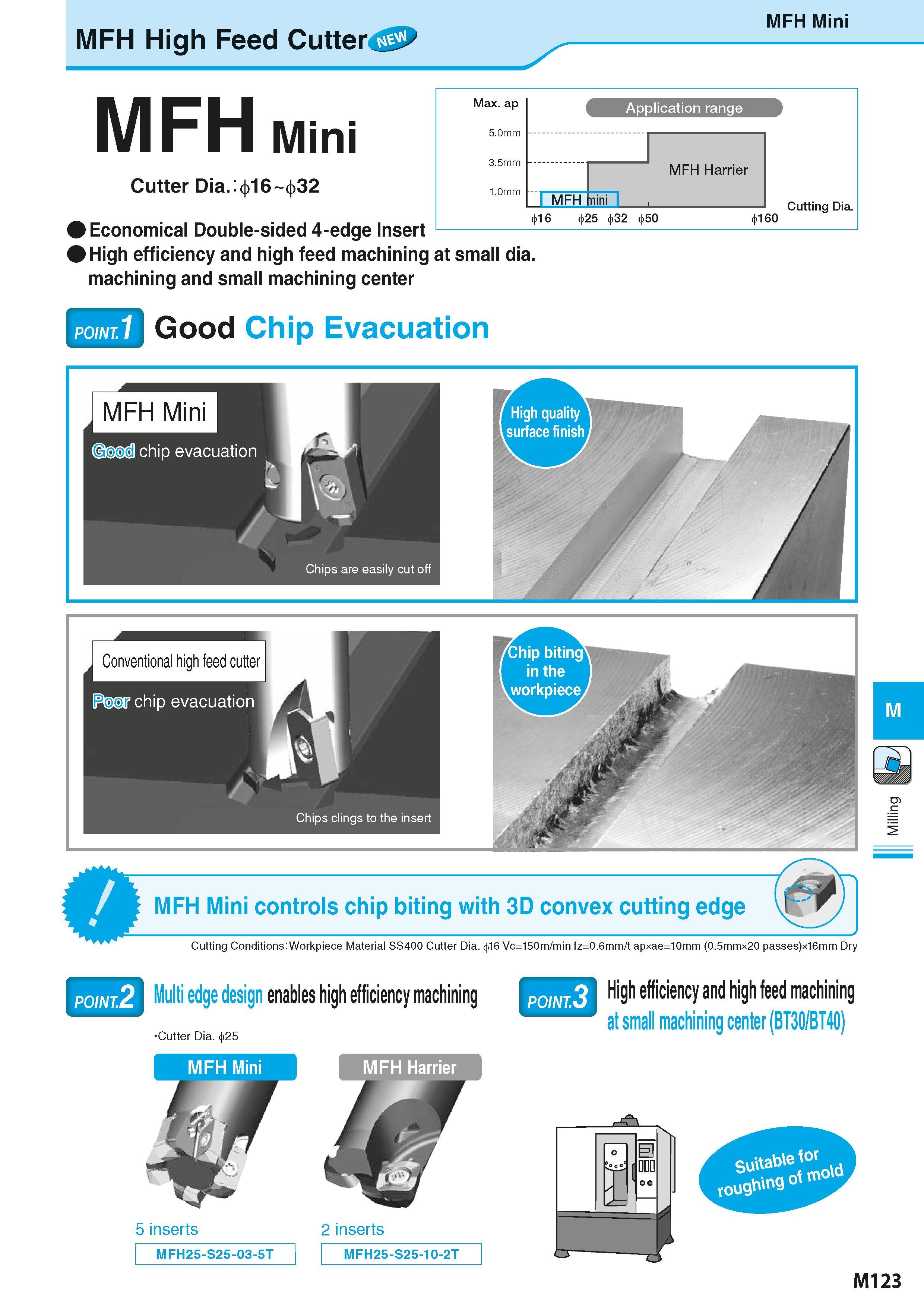

MFH High Feed Cutter MFH Mini MFH Mini Cutter Dia.: 16 32 Economical Double-sided 4-edge Insert High efficiency and high feed machining at small dia. machining and small machining center point.1\ Good Chip Evacuation Max. ap 5.0mm 3.5mm 1.0mm < Application range MFH Harrier MFH mini 16 25 32 50 160 Cutting Dia. . "Conventional high feed cutter Poor chip evacuation r 1 HJ A J Chips clings to the insert MFH Mini controls chip biting with 3D convex cutting edge Cutting Conditions: Workpiece Material SS400 Cutter Dia. 16 Vc=150m/min fz=0.6mm/t apxae=10mm (0.5mmx20 passes)x16mm Dry Multi edge design enables high efficiency machining Cutter Dia. 25 High efficiency and high feed machining at small machining center (BT30/BT40) 5 inserts 2 inserts MFH25-S25-03-5T MFH25-S25-10-2T M123
