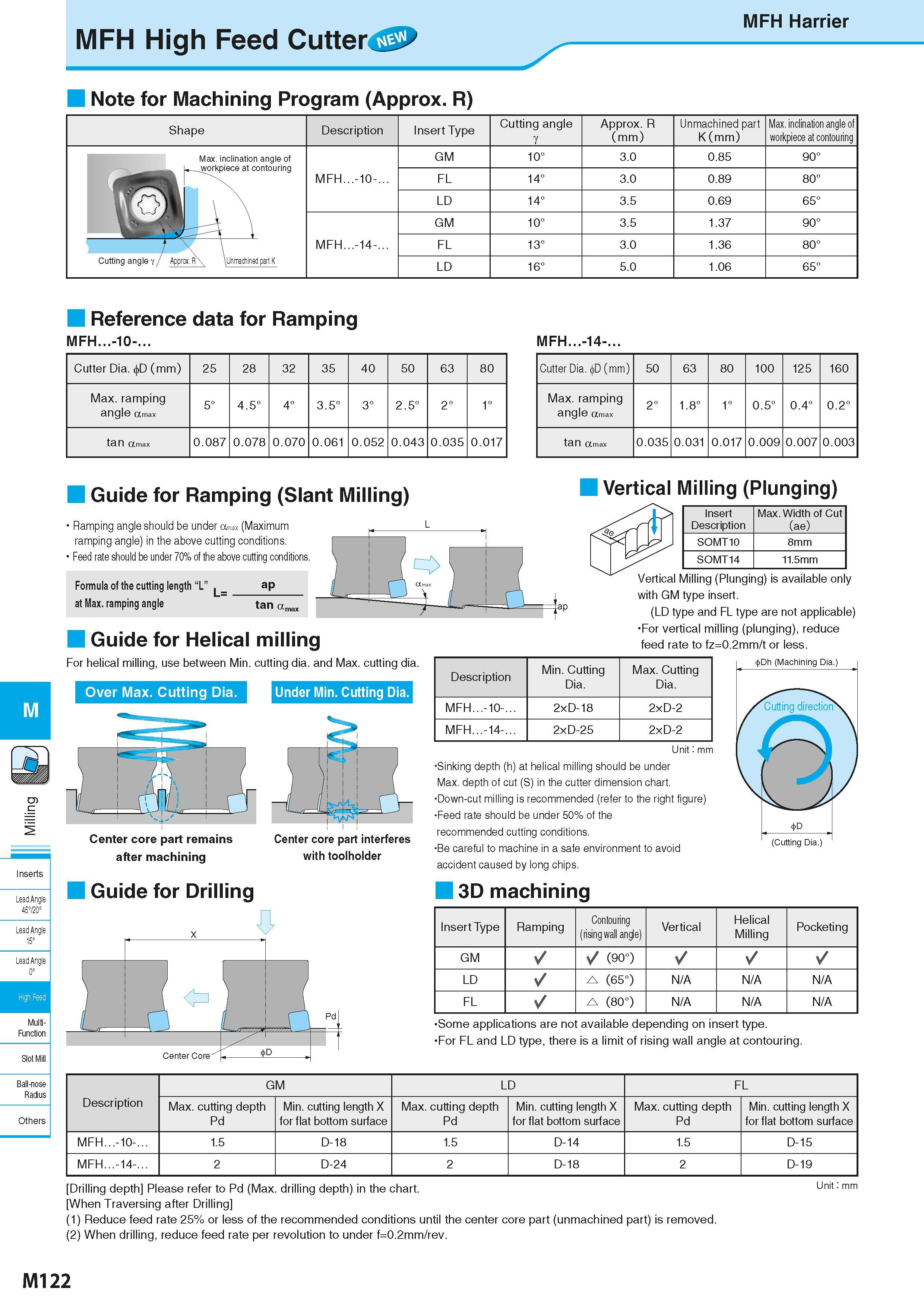

MFH Harrier MFH High Feed Cutter 0> z - Note for Machining Program (Approx. R) Shape Description Insert Type Cutting angle Y Approx. R (mm) Unmachined part K( mm) Max. inclination angle of workpiece at contouring Max. inclination angle of „ workpiece at contouring GM 10° 3.0 0.85 90° MFH...-10-... FL 14° 3.0 0.89 80° LD 14° 3.5 0.69 65° \ GM 10° 3.5 1.37 90° MFH...-14-... FL 13° 3.0 1.36 80° Cutting angle y / Approx. R\ \Unmachined part K LD 16° 5.0 1.06 65° Reference data for Ramping MFH...-10-... MFH...-14-... Cutter Dia. D (mm) 50 63 80 100 125 160 Max. ramping angle amax 2° 1.8° 1° 0.5° 0. 0.2° tan amax 0.035 0.031 0.017 0.009 0.007 0.003 Cutter Dia. D (mm) 25 28 32 35 40 50 63 80 Max. ramping angle amax 5° 4.5° 4° 3.5° 3° 2.5° 2° 1° tan amax 0.087 0.078 0.070 0.061 0.052 0.043 0.035 0.017 M Inserts Lead Angle 45720° Lead Angle 15° Lead Angle 0° Multi- Function Slot Mill Ball-nose Radius Others Guide for Ramping (Slant Milling) Vertical Milling (Plunging) Ramping angle should be under a (Maximum ramping angle) in the above cutting conditions. Feed rate should be under 70% of the above cutting conditions. Formula of the cutting length “L” ap at Max. ramping angle tan “max Insert Description Max. Width of Cut (ae) S0MT10 8mm S0MT14 11.5mm ap Guide for Helical milling For helical milling, use between Min. cutting dia. and Max. cutting dia. Over Max. Cutting Dia. Under Min. Cutting Dia. Center core part remains after machining Guide for Drilling with toolholder Vertical Milling (Plunging) is available only with GM type insert. (LD type and FL type are not applicable) For vertical milling (plunging), reduce feed rate to fz=0.2mm/t or less. Description Min. Cutting Dia. Max. Cutting Dia. MFH...-10-... 2xD-18 2xD-2 MFH...-14-... 2xD-25 2xD-2 Unit: mm Sinking depth (h) at helical milling should be under Max. depth of cut (S) in the cutter dimension chart. Down-cut milling is recommended (refer to the right figure) Feed rate should be under 50% of the recommended cutting conditions. Be careful to machine in a safe environment to avoid accident caused by long chips. 3D machining Insert Type Ramping Contouring (rising wall angle) Vertical Helical Milling Pocketing GM (90°) LD (65°) N/A N/A N/A FL (80°) N/A N/A N/A Some applications are not available depending on insert type. For FL and LD type, there is a limit of rising wall angle at contouring. L Description GM LD FL Max. cutting depth Pd Min. cutting length X for flat bottom surface Max. cutting depth Pd Min. cutting length X for flat bottom surface Max. cutting depth Pd Min. cutting length X for flat bottom surface MFH...-10-... 1.5 D-18 1.5 D-14 1.5 D-15 MFH...-14-... 2 D-24 2 D-18 2 D-19 Drilling depth Please refer to Pd (Max. drilling depth) in the chart. Unit mm When Traversing after Drilling (1) Reduce feed rate 25% or less of the recommended conditions until the center core part (unmachined part) is removed. (2) When drilling, reduce feed rate per revolution to under f=0.2mm/rev. M122
