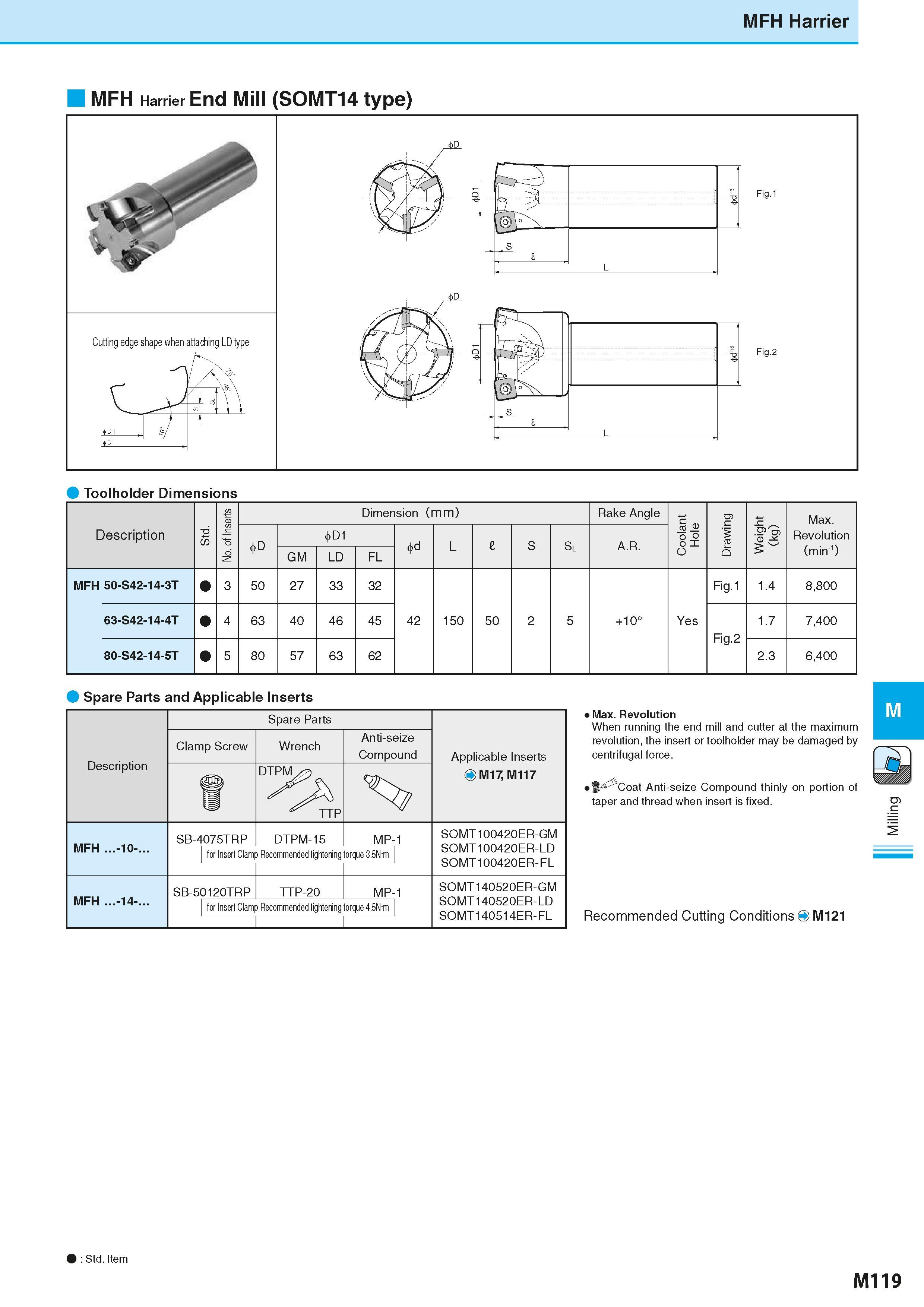

MFH Harrier MFH Harrier End Mill (SOMT14 type) Toolholder Dimensions Description 6 co No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Coolant Hole Drawing Weight (kg) Max. Revolution (min-1) D D1 d L I S Sl A.R. GM LD FL MFH 50-S42-14-3T 3 50 27 33 32 42 150 50 2 5 +10° Yes Fig.1 1.4 8,800 63-S42-14-4T 4 63 40 46 45 Fig.2 1.7 7,400 80-S42-14-5T 5 80 57 63 62 2.3 6,400 Spare Parts and Applicable Inserts Description Spare Parts Applicable Inserts OM17, M117 Clamp Screw Wrench Anti-seize Compound u DTPM ; ) S' TTP MFH ...-10-... SB-4075TRP DTPM-15 MP-1 S0MT100420ER-GM S0MT100420ER-LD S0MT100420ER-FL for Insert Clamp Recommended tightening torque 3.5N'm MFH .-14-. SB-50120TRP TTP-20 MP-1 S0MT140520ER-GM S0MT140520ER-LD S0MT140514ER-FL for Insert Clamp Recommended tightening torque 4.5N'm 1 1 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions O M121 Std. Item M119
