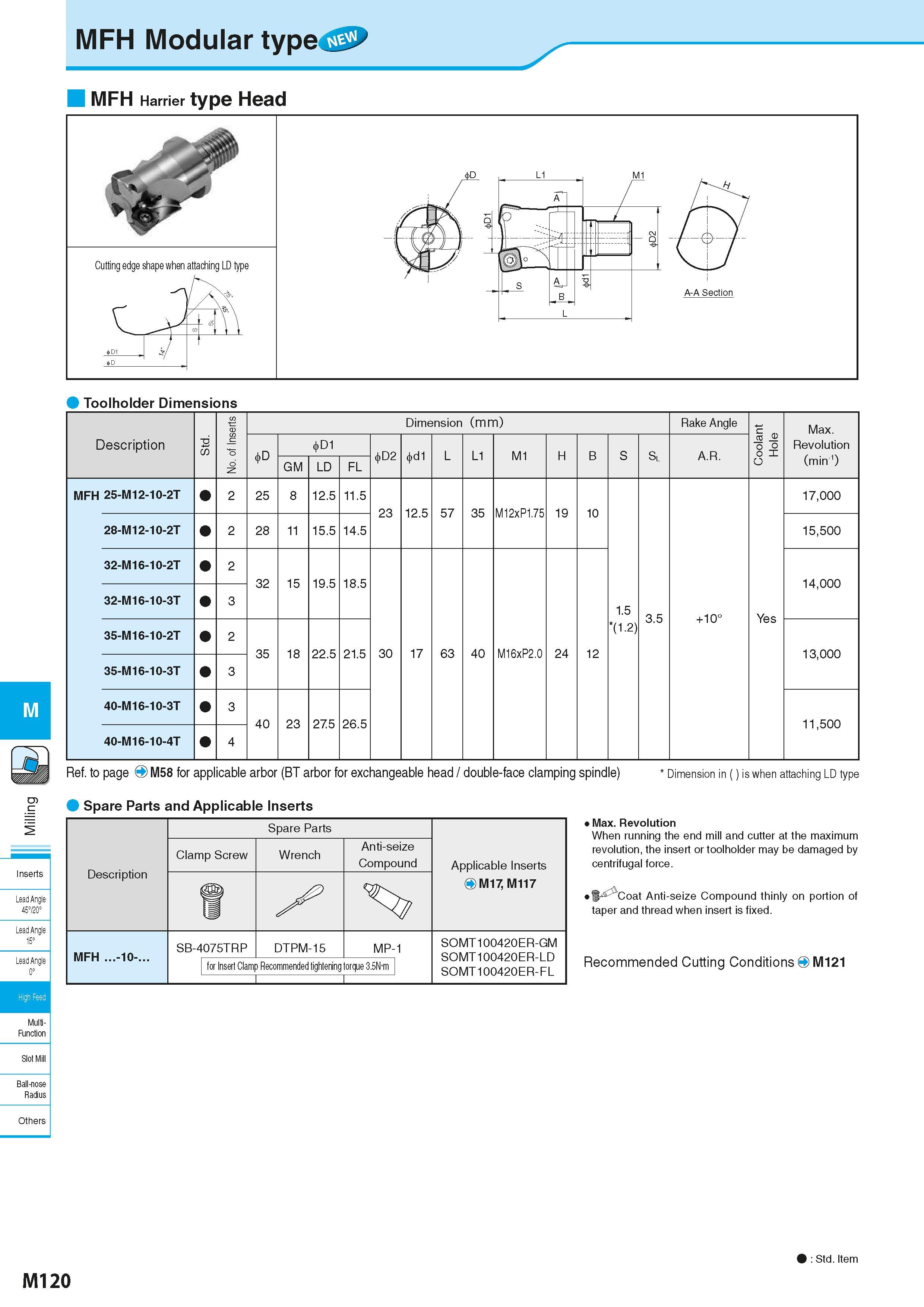

MFH Modular type MFH Harrier type Head Toolholder Dimensions M Inserts Lead Angle 45°/20° Lead Angle 15° Lead Angle 0° Multi- Function Slot Mill Ball-nose Radius Others Description 6 co No. of Inserts Dimension (mm) Размеры инструмента указаны в мм Rake Angle Coolant Hole Max. Revolution (min-1) D D1 D2 d1 L L1 M1 H B S Sl A.R. GM LD FL MFH 25-M12-10-2T 2 25 8 12.5 11.5 23 12.5 57 35 M12xP1.75 19 10 1.5 (1.2) 3.5 +10° Yes 17,000 28-M12-10-2T 2 28 11 15.5 14.5 15,500 32-M16-10-2T 2 32 15 19.5 18.5 30 17 63 40 M16xP2.0 24 12 14,000 32-M16-10-3T 3 35-M16-10-2T 2 35 18 22.5 21.5 13,000 35-M16-10-3T 3 40-M16-10-3T 3 40 23 275 26.5 11,500 40-M16-10-4T 4 Ref. to page O M58 for applicable arbor (BT arbor for exchangeable head / double-face clamping spindle) Dimension in ( ) is when attaching LD type Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Recommended Cutting Conditions O M121 Spare Parts and Applicable Inserts Description Spare Parts Applicable Inserts OM17, M117 Clamp Screw Wrench Anti-seize Compound u MFH .-10-. SB-4075TRP DTPM-15 MP-1 S0MT100420ER-GM S0MT100420ER-LD S0MT100420ER-FL for Insert Clamp Recommended tightening torque 3.5N'm 1 1 M120 Std. Item
