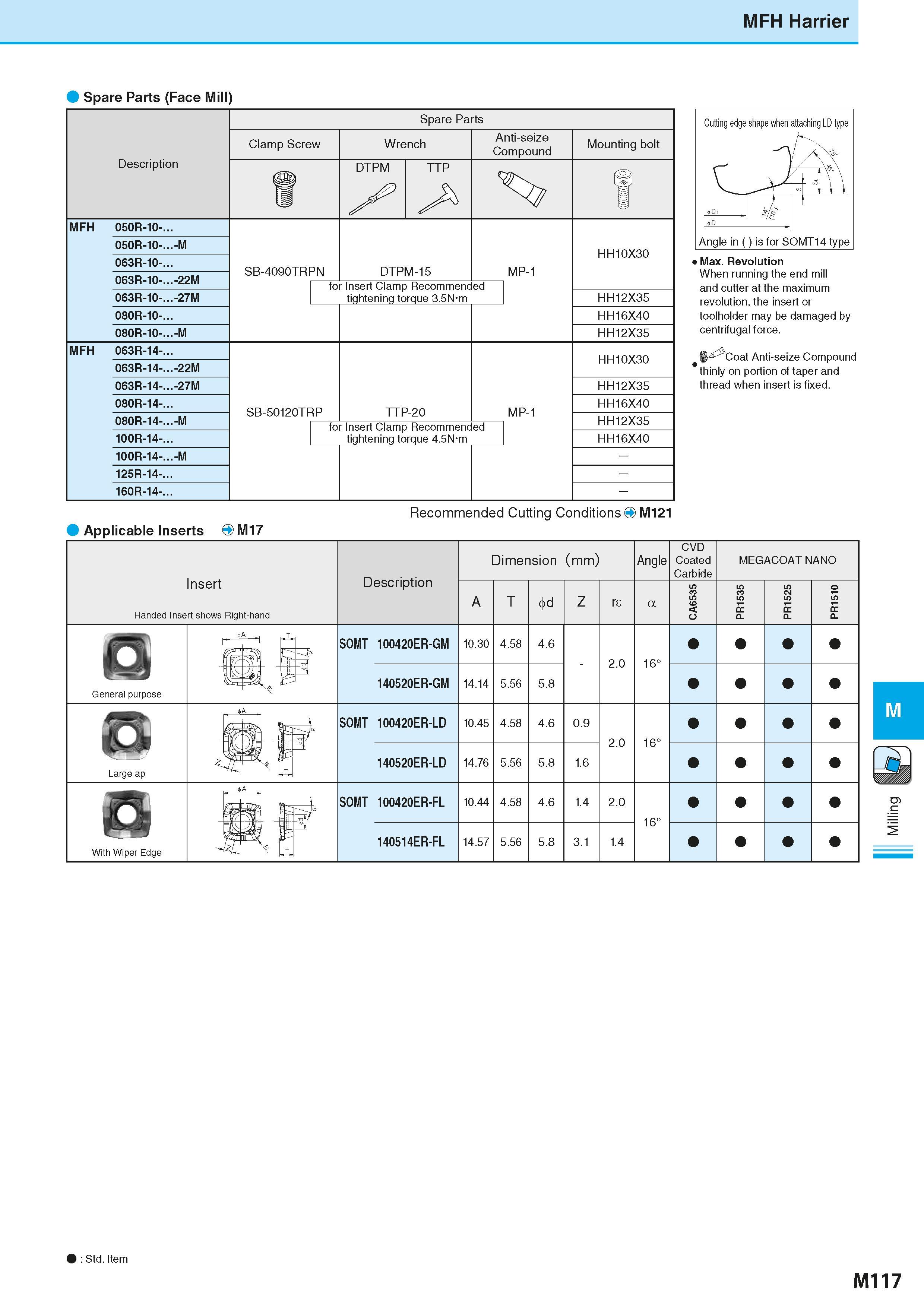

MFH Harrier Spare Parts (Face Mill Spare Parts Clamp Screw Description Wrench DTPM TTP Anti-seize Compound Mounting bolt MFH 050R-10-.. 050R-10-.. 063R-10-. 063R-10-.. 063R-10-. 080R-10-. 080R-10-.. -M -22M SB-4090TRPN -27M DTPM-15 for Insert Clamp Recommended tightening torque 3.5N-m MP-1 -M HH10X30 HH12X35 HH16X40 HH12X35 MFH 063R-14-, 063R-14-.. -22M 063R-14-.. -27M 080R-14- 080R-14-.. -M SB-50120TRP TTP-20 MP-1 100R-14- for Insert Clamp Recommended tightening torque 4.5N-m 100R-14- -M 125R-14-.. 160R-14-. HH10X30 HH12X35 HH16X40 HH12X35 HH16X40 Applicable Inserts O M17 Recommended Cutting Conditions O M121 Max. Revolution When running the end mill and cutter at the maximum revolution, the insert or toolholder may be damaged by centrifugal force. H' Coat Anti-seize Compound thinly on portion of taper and thread when insert is fixed. Insert Handed Insert shows Right-hand Description Dimension (mm) Размеры инструмента указаны в мм A re Angle CVD Coated Carbide < o MEGACOAT NANO General purpose SOMT 100420ER-GM 10.30 4.58 4.6 2.0 16° 140520ER-GM 14.14 5.56 <5 Large ap SOMT 100420ER-LD 10.45 4.58 4.6 0.9 r - 5 2.0 16° 140520ER-LD 14.76 5.56 1.6 With Wiper Edge If SOMT 100420ER-FL 10.44 4.58 4.6 1.4 2.0 16° 140514ER-FL 14.57 5.56 3.1 1.4 T Z a Std. Item M117
