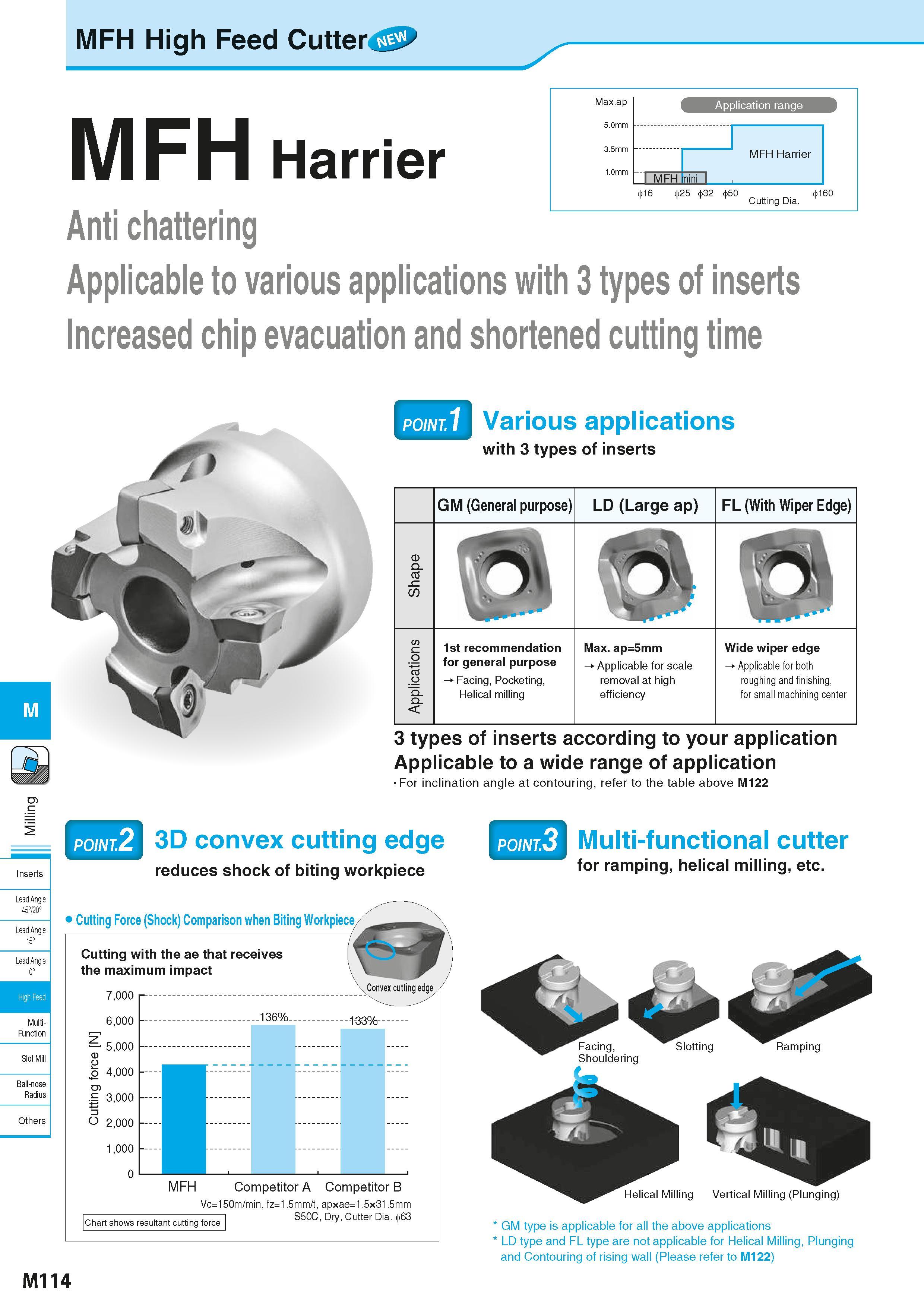

MFH High Feed Cutter MFH Harrier Max.ap MFH mini MFH Harrier 16 25 32 50 Cutting Dia. Anti chattering Applicable to various applications with 3 types of inserts Increased chip evacuation and shortened cutting time Various applications with 3 types of inserts GM (General purpose) LD (Large ap) FL (With Wiper Edge) Shape 0 fry Applications 1st recommendation for general purpose Facing, Pocketing, Helical milling Max. ap=5mm Applicable for scale removal at high efficiency Wide wiper edge Applicable for both roughing and finishing, for small machining center 3 types of inserts according to your application Applicable to a wide range of application For inclination angle at contouring, refer to the table above M122 Lead Angle 45720° Lead Angle 15° Lead Angle 0° Multi- Function Ball-nose Radius 3D convex cutting edge reduces shock of biting workpiece 1 Cutting Force (Shock) Comparison when Biting Workpiece Cutting with the ae that receives the maximum impact 7.000 6.000 “ 5,000
