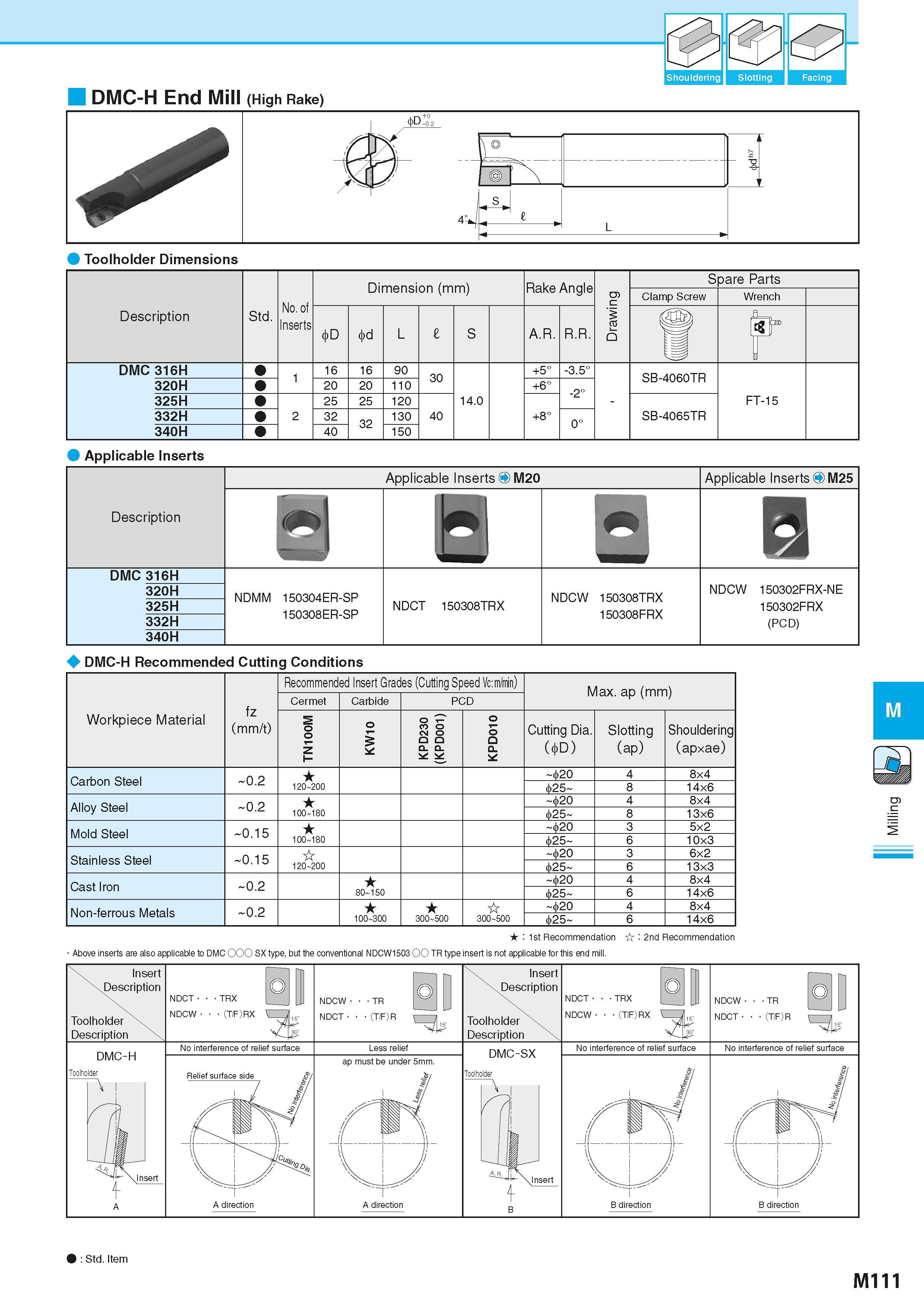

Shouldering Slotting Facing DMC-H End Mill (High Rake) Toolholder Dimensions Applicable Inserts Description Applicable Inserts O M20 Applicable Inserts O M25 tm 1 B 3 B DMC 316H 320H 325H 332H 340H NDMM 150304ER-SP 150308ER-SP NDCT 150308TRX NDCW 150308TRX 150308FRX NDCW 150302FRX-NE 150302FRX (PCD) DMC-H Recommended Cutting Conditions Recommended Insert Grades (Cutting Speed Vc: m/min) Max. ap (mm) fz (mm/t) Cermet Carbide PCD Workpiece Material TN100M KW10 KPD230 (KPD001) KPD010 Cutting Dia. ( D) Slotting (ap) Shouldering (apxae) Carbon Steel 0.2 - 20 4 8x4 120-200 25- 8 14x6 Alloy Steel 0.2 - 20 4 8x4 100-180 25- 8 13x6 Mold Steel 0.15 - 20 3 5x2 100-180 25- 6 10x3 Stainless Steel 0.15 - 20 3 6x2 120-200 25- 6 13x3 Cast Iron 0.2 - 20 4 8x4 80-150 25- 6 14x6 Non-ferrous Metals 0.2 - 20 4 8x4 100-300 300-500 300-500 25- 6 14x6 1st Recommendation 2nd Recommendation Above inserts are also applicable to DMC OOO SX type, but the conventional NDCW1503 00 TR type insert is not applicable for this end mill. Std. Item M111
